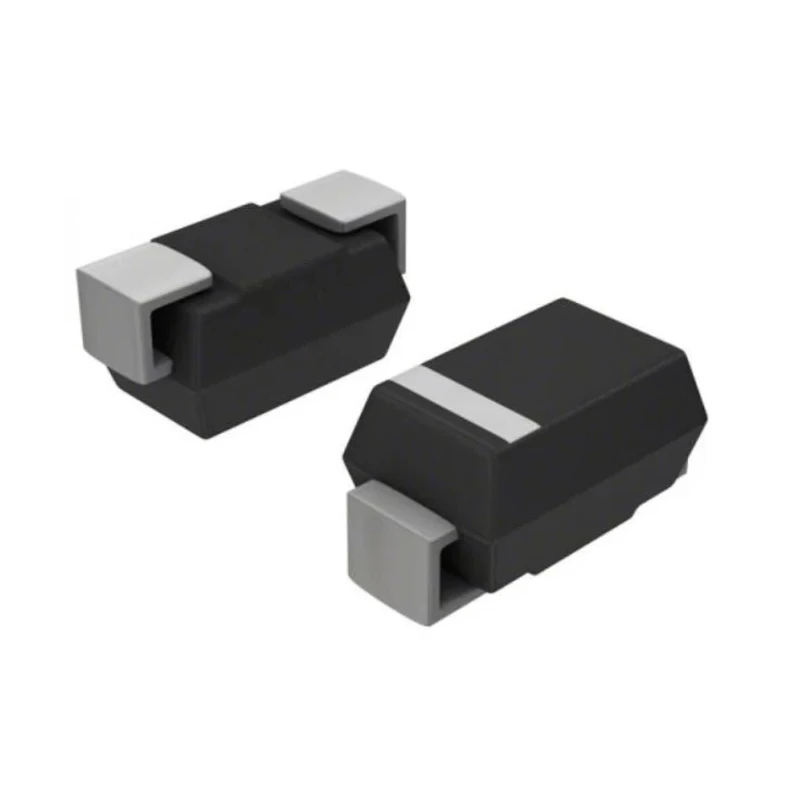

Vishay 15 V 4 A Surface Mount Schottky Rectifier DO-214AB Package VS-30BQ015-M3/9AT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 7.11mm |
| Model | VS-30BQ015-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | Q |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS 2002/95/EC |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 15V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 650A |
| Maximum Forward Voltage Vf | 0.35V |
| Vishay Diode, 30BQ015Brand | Vishay |
Key Features
- Utilizes DO-214AB (SMC) package for surface mount convenience.
- Features maximum continuous forward current of 4 A.
- Offers a peak reverse repetitive voltage of 15 V.
- Exhibits low maximum forward voltage of 0.35 V for energy efficiency.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Delivers a peak non-repetitive forward surge current rating of 650 A.
- Has a 2-pin configuration suitable for circuit integration.
- Designed in compliance with RoHS 2002/95/EC standards.
Product Description
Vishay VS-30BQ015-M3/9AT Schottky Rectifier is a high-performance semiconductor device designed for fast switching applications in electronic circuits. Its low forward voltage and rapid switching capabilities lower power losses, making it ideal for power management in industrial, communication, and consumer electronics.
The rectifier features a surface mount DO-214AB (SMC) package, facilitating automated PCB assembly and compact system designs. With a maximum continuous forward current of 4 A and peak reverse repetitive voltage of 15 V, it supports efficient rectification under demanding electrical conditions.
Operating temperature range from -55°C to 125°C ensures reliability across various environmental conditions. The device also withstands peak non-repetitive forward surge currents up to 650 A, providing robustness against transient electrical stress.
Its single diode configuration and 2-pin design simplify circuit implementation. The product complies with RoHS 2002/95/EC environmental standards. Small dimensions (7.11 mm length and 6.22 mm width) make it suitable for high-density electronic assemblies in industrial, telecommunications, automotive (non-automotive standard), and laboratory applications.
Utilizes DO-214AB (SMC) package for surface mount convenience. Maximum continuous forward current of 4 A allows for moderate power applications. Low forward voltage reduces power dissipation. Wide operating temperature range supports extended conditions.
High surge current capability enhances durability. Compact 2-pin design for easy circuit integration. RoHS compliant for environmentally conscious manufacturing. Dimensions facilitate use in dense PCB layouts.
This Vishay Schottky rectifier is an essential component for engineers and designers seeking energy-efficient switching diode solutions suitable for a variety of electronics and power supply projects. Explore Vishay products and similar semiconductor devices for your industrial and commercial electronics needs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this Schottky rectifier is 4 A.
This model has a peak reverse repetitive voltage rating of 15 V.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum forward voltage drop is 0.35 V.
The rectifier utilizes a DO-214AB (SMC) package for surface mount applications.
It has a peak non-repetitive forward surge current rating of 650 A.
This model features a 2-pin configuration suitable for circuit integration.
The dimensions are 7.11 mm in length and 6.22 mm in width.
Yes, it is designed in compliance with RoHS 2002/95/EC standards.
It is a Schottky rectifier, known for its fast switching capabilities.
This rectifier is suitable for power management in industrial, communication, and consumer electronics applications.
The peak reverse current is rated at 50 mA.
