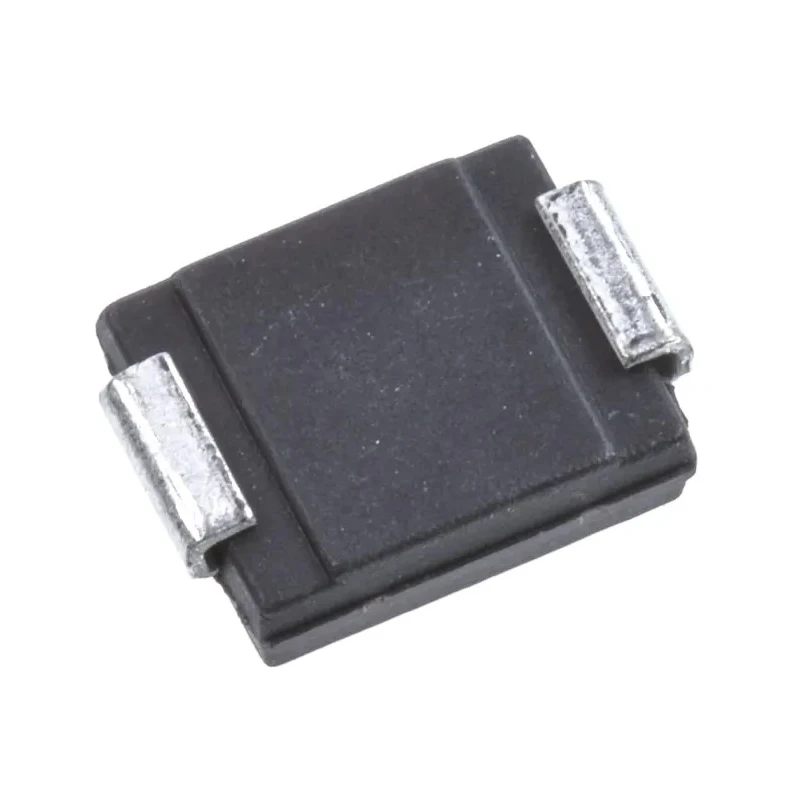

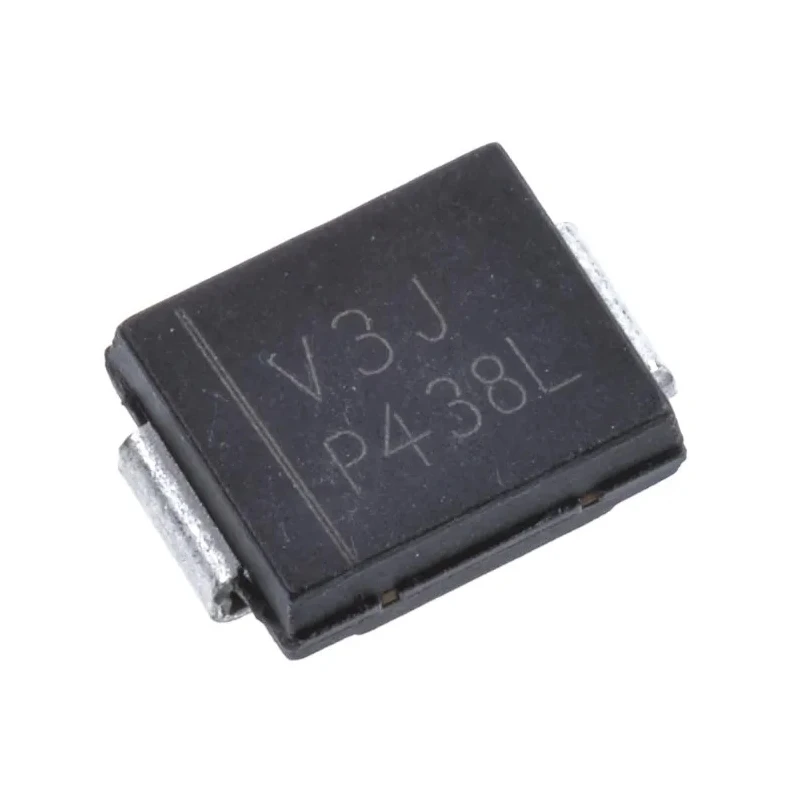

Vishay Schottky Rectifier 100 V 3 A Surface Mount DO-214AB VS-30BQ100-M3/9AT
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.42mm |
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | VS-30BQ100-M3/9AT |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | Q |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS 2002/95/EC, JEDEC JS709A, MSL1 (J-STD-020) |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 790mV |
Key Features
- High performance Schottky rectifier for efficient low forward voltage drop operation.
- Compact surface mount DO-214AB (SMC) package for PCB assembly.
- Single diode configuration with 2 pins for easy integration.
- Peak reverse repetitive voltage of 100 V and forward surge current up to 800 A.
- Operating temperature range from -55°C to 175°C for industrial reliability.
- Maximum forward voltage of 790 mV ensures low power dissipation.
- Compliance with RoHS 2002/95/EC and JEDEC JS709A standards.
- Low peak reverse current of 500 μA enhances circuit protection.
Product Description
Vishay VS-30BQ100-M3/9AT is a high-performance surface mount Schottky rectifier diode designed to provide efficient rectification with a low forward voltage drop. Encapsulated in the DO-214AB (SMC) package, this diode supports a maximum continuous forward current of 3 A and a peak repetitive reverse voltage of 100 V. The compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height make it suitable for modern PCB designs requiring space efficiency.
Engineered for fast switching applications, the VS-30BQ100-M3/9AT exhibits rapid reverse recovery characteristics and a maximum forward voltage of 790 mV, ensuring high efficiency in power conversion circuits. Its wide operating temperature range from -55°C to 175°C permits reliable operation in demanding industrial, automotive, and telecommunications environments.
This Schottky rectifier complies with RoHS 2002/95/EC, JEDEC JS709A, and MSL1 (J-STD-020) standards, assuring environmental compliance and quality manufacturing practices. The diode features a peak non-repetitive forward surge current of 800 A and a low peak reverse leakage current of 500 μA, enhancing device protection and longevity.
Applications include power supplies, voltage clamping, freewheeling diodes in DC-DC converters, and reverse polarity protection. Its single diode configuration with 2 pins simplifies circuit design and mounting processes in automated production lines.
High performance with low forward voltage drop for reduced power loss. Surface mount DO-214AB package ideal for compact PCB layouts. Reliable operation over a wide temperature range -55°C to 175°C. Peak reverse voltage of 100 V suitable for various power circuits.
Complies with major environmental and manufacturing standards. Fast switching capabilities for power conversion and efficient rectification. Compact dimensions facilitating efficient board space usage. Low leakage current for better device reliability.
Explore Vishay semiconductor products and Schottky diodes on EnvMart for your industrial and electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A.
It has a peak reverse repetitive voltage rating of 100 V.
The operating temperature range is from -55°C to 175°C.
The maximum forward voltage drop is 790 mV.
This diode is encapsulated in a DO-214AB (SMC) package.
The peak non-repetitive forward surge current rating is 800 A.
It features a single diode configuration with 2 pins.
The peak reverse current is 500 μA.
It complies with RoHS 2002/95/EC, JEDEC JS709A, and MSL1 (J-STD-020) standards.
The dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It is suitable for applications including power supplies, voltage clamping, and reverse polarity protection.
The country of origin for this model is India.
