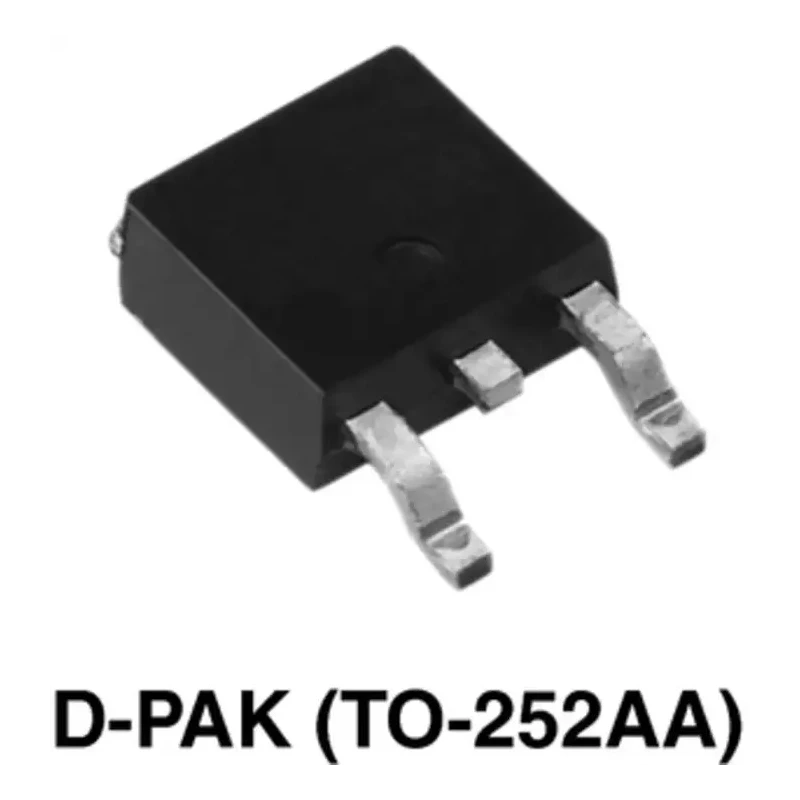

Vishay 60 V 3.5 A Schottky Diode Single Rectifier 4-Pin Surface Mount TO-252 Package VS-30WQ06FNHM3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | VS-30WQ06FNHM3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3.5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 490A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- Designed for surface mount assembly with compact TO-252 packaging.
- Maximum forward voltage drop of 650 mV improves efficiency.
- Peak reverse current rated at 30 mA for reliable operation.
- Operating temperature range from -40°C to 150°C ensures durability.
- Includes guard ring for enhanced ruggedness and long term reliability.
- High peak non-repetitive surge current of 490 A for transient handling.
- Ideal for switching power supplies, converters, and battery charging circuits.
- Complies with automotive AEC-Q101 standard for quality assurance.
Product Description
Vishay VS-30WQ06FNHM3 is a Schottky diode designed as a single rectifier with 60 V peak reverse repetitive voltage and a maximum continuous forward current of 3.5 A. It features a 4-pin DPAK (TO-252) surface-mount package with compact dimensions for space-constrained electronic applications.
This diode exhibits a low forward voltage drop of approximately 650 mV, ensuring efficient power handling and reduced heat dissipation. Its peak reverse current is limited to 30 mA, providing reliable electrical performance. The device operates over a wide temperature range from -40°C to 150°C, making it suitable for harsh industrial and automotive environments.
The Vishay VS-30WQ06FNHM3 includes a guard ring to enhance ruggedness and withstand long term use in demanding applications. It supports a high peak non-repetitive forward surge current of 490 A, allowing it to tolerate transient current surges often encountered in power supply systems.
Typical applications include switching power supplies, DC-DC converters, freewheeling diodes, battery charging circuits, and reverse battery protection. It is widely used in automotive sectors being compliant with the AEC-Q101 automotive standard.
Surface mount Schottky diode with TO-252 package. 60 V peak reverse voltage and 3.5 A continuous forward current. Low forward voltage drop of 650 mV for efficient operation. Wide operating temperature range from -40 to 150°C.
High surge current capacity of 490 A peak non-repetitive forward current. Includes guard ring for enhanced ruggedness. AEC-Q101 automotive standard qualified. Suitable for power supplies, converters, and battery charging.
Country of origin: China. Explore more Vishay semiconductor components and Schottky diode rectifiers at EnvMart for reliable industrial and automotive electronics applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-30WQ06FNHM3 is 3.5 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop for this diode is approximately 650 mV.
It operates over a temperature range from -40°C to 150°C.
The diode can handle a peak non-repetitive forward surge current of 490 A.
The Vishay VS-30WQ06FNHM3 comes in a TO-252 package type.
This model features a pin count of 4.
Yes, it complies with the AEC-Q101 automotive standard for quality assurance.
The peak reverse current for this diode is rated at 30 mA.
It is suitable for applications such as switching power supplies, DC-DC converters, and battery charging circuits.
The dimensions of the Vishay VS-30WQ06FNHM3 are 6.73 mm in length, 6.22 mm in width, and 2.38 mm in height.
The Vishay VS-30WQ06FNHM3 is manufactured in China.
