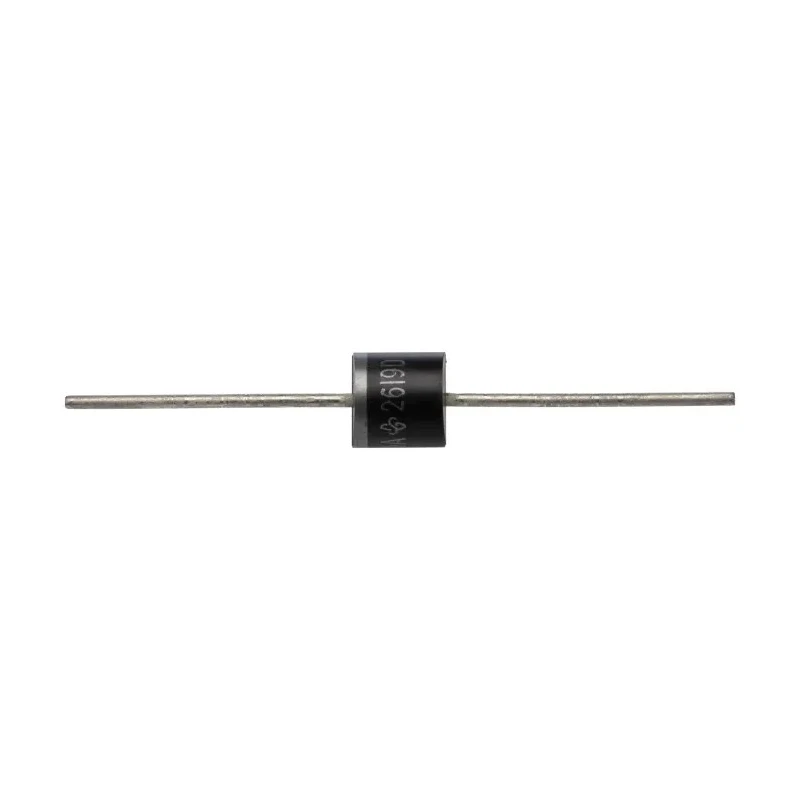

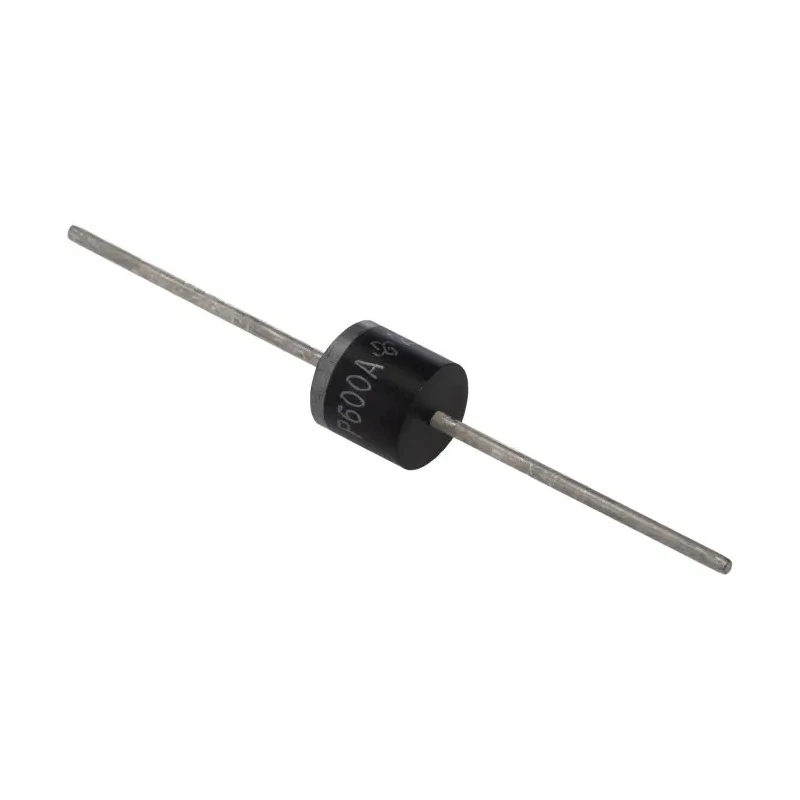

Vishay 50 V 6 A Diode Plastic Through Hole 2-Pin P600A-E3/54

Vishay P600A-E3/54 is a high-performance Schottky diode designed for industrial and electronic semiconductor applications requiring efficient rectification. It is housed in a plastic P600 through-hole package, featuring a void-free molded epoxy body that meets UL 94 V-0 flammability standards, ensuring safety and reliability in demanding environments.

This diode supports a maximum continuous forward current of 6 A and withstands a peak repetitive reverse voltage of 50 V, making it suitable for a wide range of power supply and converter circuits. The device exhibits a low forward voltage drop and low leakage current, contributing to reduced power losses during operation.

Its compact size measures 9.1 mm in height, length, width, and diameter, facilitating efficient PCB layout. The diode can operate reliably between -55°C to 150°C junction temperature, fitting diverse industrial, laboratory, and commercial requirements.

The P600A-E3/54 diode features a fast peak reverse recovery time of 2.5 microseconds for rapid switching in modern electronic circuits. Terminals have matte tin plating for optimal solderability, complying fully with J-STD-002 and JESD22-B102 industry standards, while the E3/54 suffix indicates compliance with JESD 201 class 1A whisker testing to reduce failure risks.

Applications include rectification functions in power supplies, inverters, electrical converters, and freewheeling diode roles. Its construction and materials support long lifecycle and dependable performance in industrial machinery, HVAC equipment, manufacturing lines, and lab instrumentation.

Features a low forward voltage drop ensuring energy efficient performance. Supports maximum continuous forward current of 6 A and peak repetitive reverse voltage of 50 V. Plastic P600 package with 2 pins, molded epoxy body providing durability and flame resistance to UL 94 V-0 rating.

Wide operating temperature range from -55°C to 150°C suitable for varied industrial environments. Has a short peak reverse recovery time of 2.5 microseconds enhancing switching speed. Terminals are matte tin plated for robust solderability compliant with J-STD-002 and JESD 22-B102 standards.

Color band polarity marking identifies cathode and simplifies correct installation. Ideal for use in power supplies, inverters, converters, and freewheeling diode applications. Choose Vishay P600A-E3/54 for reliable diode solutions in your semiconductor projects and explore additional Vishay semiconductor products and related components on EnvMart.
