| Country of Origin | India |
|---|---|
| Diameter | 1.6mm |
| Brand | Vishay |
| Height | 3.7mm |
| Length | 3.7mm |
| Model | LL43-GS08 |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | LL43 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 450mV |
| Peak Reverse Recovery Time trr | 5ns |

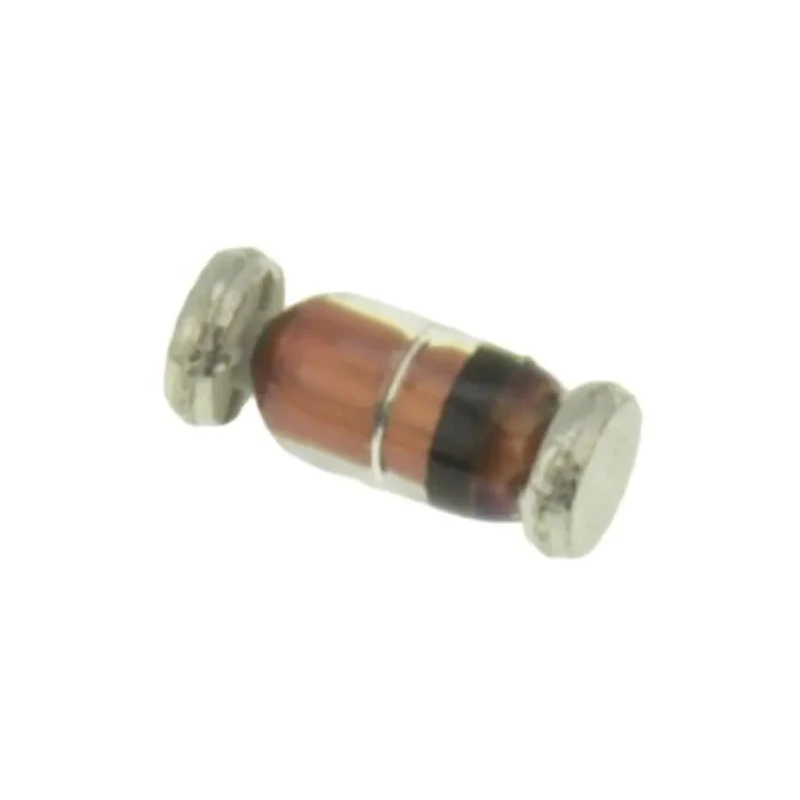

Vishay LL43-GS08 is a high-performance small signal Schottky diode primarily designed for surface mount technology (SMT) applications. This diode operates with a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, making it ideal for low voltage rectification and switching circuits in industrial, automotive, and consumer electronics.
The diode features a compact 2-pin SOD-80 package with dimensions of 3.7 mm in length and height, and 1.6 mm in diameter and width, contributing to efficient PCB space utilization. Its low forward voltage of 450 mV minimizes conduction losses, enhancing circuit efficiency.
With a peak reverse recovery time (trr) of just 5 nanoseconds, the device supports rapid switching speeds critical in high-frequency electronic circuits. The diode operates reliably across a broad temperature spectrum from -55°C to 125°C, catering to demanding industrial and automotive environments. It conforms to RoHS standards and meets the stringent AEC-Q101 automotive certification.
Designed with a PN junction guard ring, LL43-GS08 offers robust protection against electrostatic discharge (ESD), thus improving device longevity and reliability. Maximum continuous forward current of 200 mA. Peak reverse repetitive voltage of 30 V.
Low forward voltage drop of 450 mV. Fast switching with a recovery time of 5 ns. Compact 2-pin SOD-80 surface mount package. Wide operating temperature range from -55°C to 125°C. Compliance with RoHS and AEC-Q101 standards.
PN junction guard ring for enhanced electrostatic protection.
This diode is suitable for use in industrial electronics, automotive circuitry, telecommunications, power supplies, and other semiconductor-based electronic applications. It supports general-purpose diode functions where small signal rectification and fast switching are essential.
