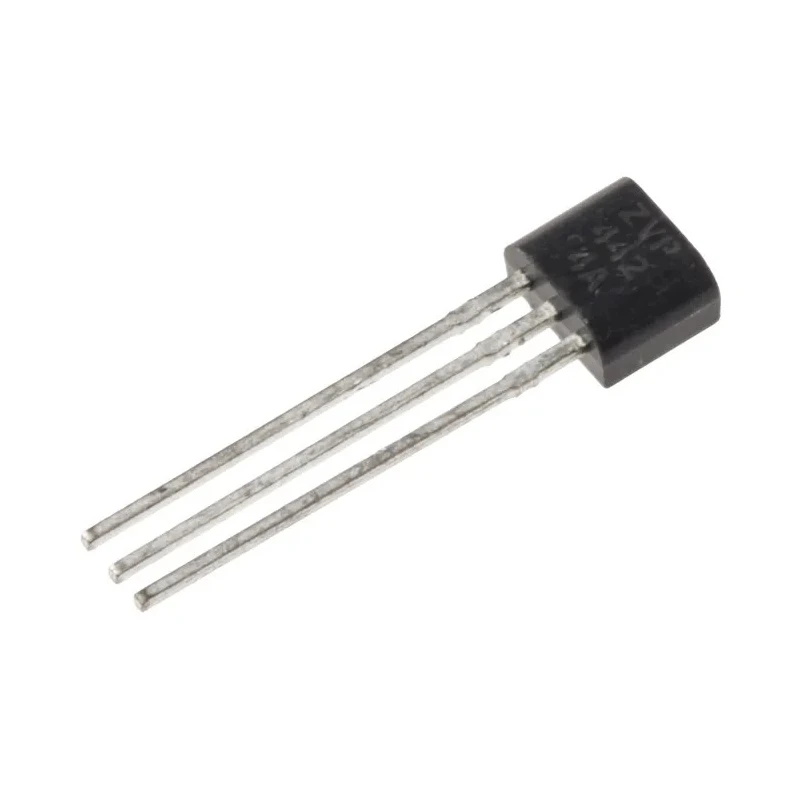

DiodesZetex P-Channel MOSFET 200 mA 240 V Enhancement Mode 3-Pin E-Line ZVP4424A
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 4.01mm |
| Length | 4.77mm |
| Model | ZVP4424A |
| Width | 2.41mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | E-Line |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 200mA |
| Maximum Drain Source Voltage Vds | 240V |
| Maximum Drain Source Resistance Rds | 9Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 750mW |
| Maximum Gate Source Voltage Vgs | 40V |
Key Features
- Through-hole mount type ensures secure placement in electronic circuits.
- Compact dimensions of 4.77 mm length, 4.01 mm height, and 2.41 mm width.
- Maximum power dissipation is 750 mW for reliable operation.
- Operates within temperature range from -55°C to 150°C for versatility.
- Maximum gate-source voltage rating of 40 V enhances application safety.
- Low maximum drain-source resistance of 9 Ω improves efficiency.
- Compliant with automotive standard AEC-Q101 ensuring quality and reliability.
- Equipped with 3 pins in an E-Line package suitable for discrete semiconductor roles.
Product Description
DiodesZetex ZVP4424A is a type P-Channel MOSFET designed for electronic applications requiring efficient switching and amplification with a maximum continuous drain current of 200 mA and a maximum drain-source voltage of 240 V. The device features enhancement mode operation and a through-hole mount package type, making it suitable for robust industrial and electronic circuit designs.
With compact physical dimensions (length 4.77 mm, height 4.01 mm, width 2.41 mm) and a 3-pin E-Line package configuration, this MOSFET ensures easy integration on circuit boards. It dissipates up to 750 mW of power, allowing for sustained performance under demanding conditions.
The ZVP4424A is rated for operating temperatures from -55°C to 150°C, enabling its use in a wide range of environments including automotive and industrial applications. It also features a maximum gate-source voltage of 40 V and a maximum drain-source resistance of 9 Ω, contributing to its efficiency and operational safety.
The inclusion of AEC-Q101 automotive standard approval certifies its reliability for automotive system requirements. This MOSFET is ideal for discrete semiconductor roles in electronic components, power and connectors sectors, and is widely used in industrial, automotive, and laboratory equipment power management and switching circuits.
Through-hole mount type ensures secure placement in electronic circuits. Compact dimensions of 4.77 mm length, 4.01 mm height, and 2.41 mm width. Maximum power dissipation is 750 mW for reliable operation. Operates within temperature range from -55°C to 150°C for versatility.
Maximum gate-source voltage rating of 40 V enhances application safety. Low maximum drain-source resistance of 9 Ω improves efficiency. Compliant with automotive standard AEC-Q101 ensuring quality and reliability. Equipped with 3 pins in an E-Line package suitable for discrete semiconductor roles.
This product is part of the DiodesZetex semiconductor range and fits well in applications requiring dependable MOSFET components, including industrial power control, automotive electronics, and electronic manufacturing. Explore more in our Semiconductor MOSFET category for related components and reliable solutions from DiodesZetex.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 200 mA.
This MOSFET has a maximum drain-source voltage rating of 240 V.
The dimensions of this unit are 4.77 mm in length, 4.01 mm in height, and 2.41 mm in width.
It can dissipate a maximum power of 750 mW.
This model operates within a temperature range from -55°C to 150°C.
The maximum gate-source voltage rating is 40 V.
The maximum drain-source resistance is 9 Ω.
This MOSFET uses a through-hole mount type for secure placement in electronic circuits.
It is equipped with 3 pins in an E-Line package configuration.
Yes, it is compliant with the automotive standard AEC-Q101.
This model features a P-Channel type configuration.
It is suitable for discrete semiconductor roles in industrial, automotive, and laboratory equipment power management and switching circuits.
