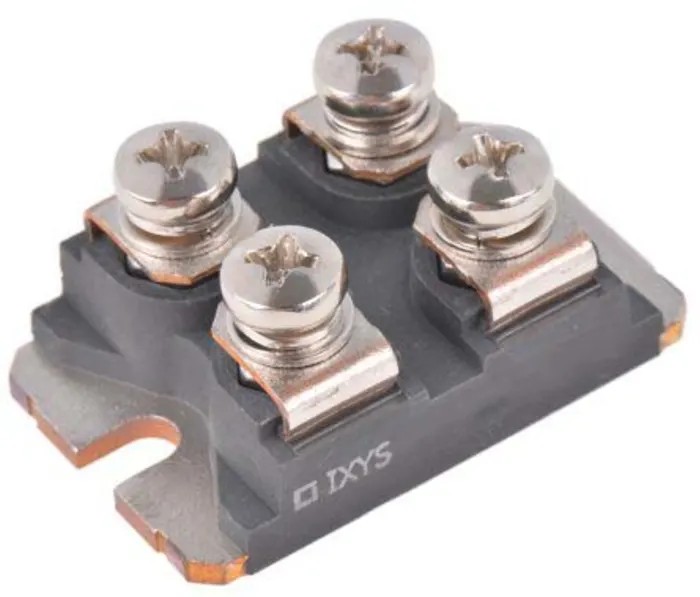

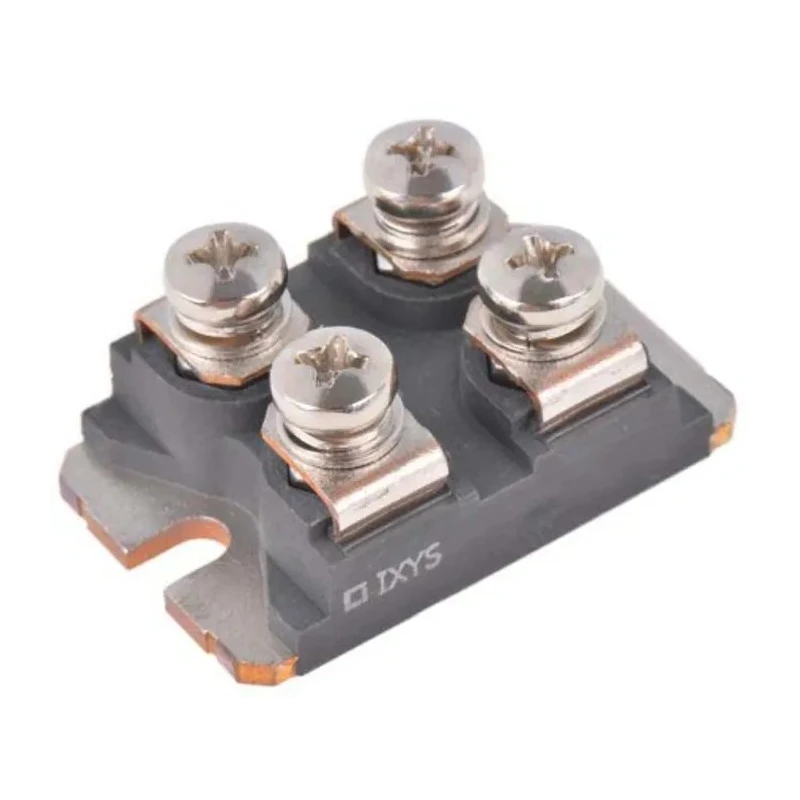

IXYS Dual Thyristor Module 1600 V 650 A 40 A 150 mA SOT-227B 4-Pin MMO74-16io6

Free Delivery in India | Lowest Global Shipping Charges

IXYS Dual Thyristor Module 1600 V 650 A 40 A 150 mA SOT-227B 4-Pin MMO74-16io6

Name: IXYS Dual Thyristor Module 1600 V 650 A 40 A 150 mA SOT-227B 4-Pin MMO74-16io6
Brand: IXYS
SKU: 93942
Price: 50.81 USD
Availability: InStock



Category Thyristor Module Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	12.22mm
Length	38.23mm
Model	MMO74-16io6
Width	25.25mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	SOT-227B
Pin Count	4
Rated Average On-State Current Irms	40A
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	650A
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	100mA
Maximum Gate Trigger Voltage Vgt	1.6V

Key Features

This module features a back-to-back dual thyristor configuration for efficient AC power regulation.
It has a repetitive peak reverse voltage rating of 1600 volts for high voltage endurance.
The rated average on-state current is 40 amperes, suitable for medium power applications.
The surge current capability is 650 amperes for transient conditions.
Package type is SOT-227B with a compact 4-pin surface mount design.
Maximum gate trigger current is 150 milliamperes for controlled activation.
Operational temperature rated up to 125 degrees Celsius ensures reliability under heat stress.
It has dimensions of 38.23 mm length, 25.25 mm width, and 12.22 mm height for board layout consideration.

Product Description

The IXYS MMO74-16io6 Dual Thyristor Module offers reliable AC power control with high voltage and current ratings. This module contains two back-to-back thyristors housed in the isolated base SOT-227B package. It supports a repetitive peak reverse voltage of 1600 volts and a surge current rating of 650 amperes, making it suitable for demanding industrial and commercial power control applications.

Its compact 4-pin surface mount design with dimensions 38.23 mm length, 25.25 mm width, and 12.22 mm height facilitates compact PCB integration. The module features an isolated copper baseplate that ensures excellent heat transfer, enhancing thermal management. The maximum gate trigger current of 150 mA and holding current of 100 mA provide precise and stable triggering under varied electrical conditions.

Designed for robust performance, the module supports operation up to 125°C, making it ideal for industrial environments such as battery chargers, welders, plating equipment, regulated power supplies, and temperature or speed control circuits. The M4 screw terminal connections and two-hole fixing provide secure mechanical and electrical attachment.

Thyristors, also known as silicon-controlled rectifiers (SCRs), are bistable semiconductor devices widely used for controlled rectification and AC power regulation. The MMO series modules are well-recognized in the power semiconductor industry for their durability and reliability.

Back-to-back dual thyristors enable full-wave AC power control. Isolated copper baseplate ensures efficient thermal dissipation. Compact 4-pin SOT-227B surface mounting package. High surge current rating for transient robustness.

Wide operational temperature range supports demanding industrial use. Applications include power supplies, welding equipment, and battery chargers.
