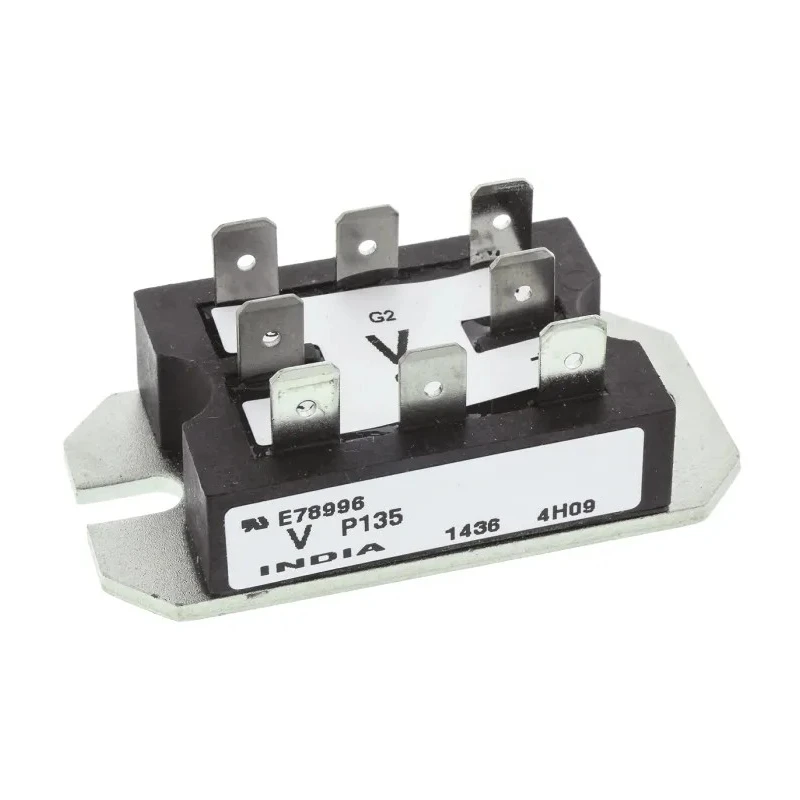

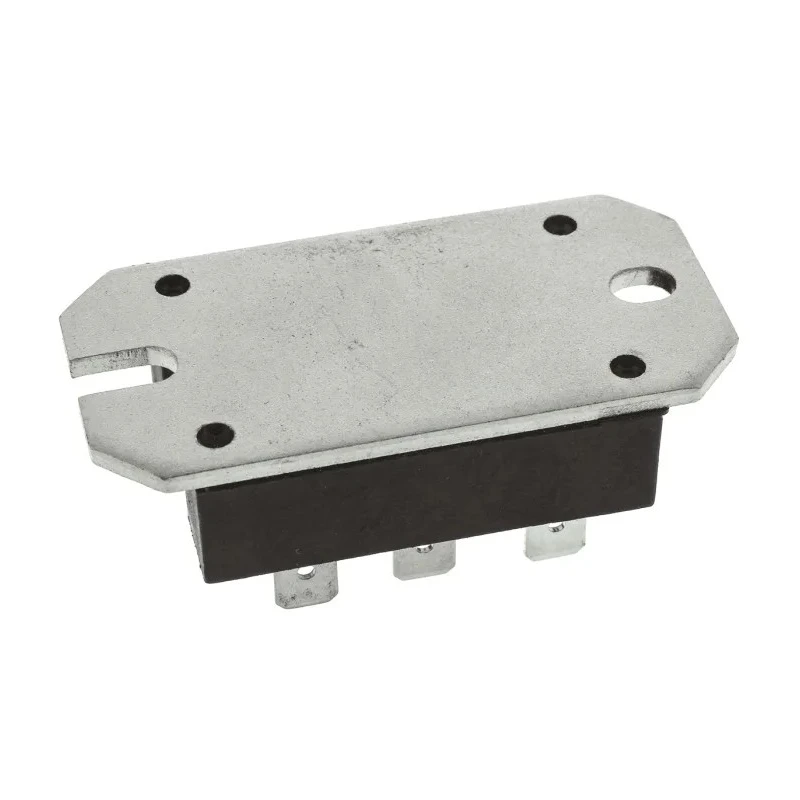

Vishay Thyristor Module 1200 V 380 A, 25 A Rated Average On-State Current, 8-Pin VS-P135
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15.5mm |
| Length | 63.5mm |
| Model | VS-P135 |
| Width | 32.5mm |
| Mount Type | Screw |
| Series | VS-P100 |
| Maximum Operating Temperature | 125°C |
| Pin Count | 8 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 380A |
| Maximum Gate Trigger Current Igt | 60mA |
| Maximum Holding Current Ih | 130mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.35V |
| Repetitive Peak Off-State Current | 0.1mA |
Key Features
- Rated average on-state current of 25 A for efficient conduction.
- Repetitive peak reverse voltage up to 1200 volts ensuring high voltage tolerance.
- Surge current rating of 380 A providing robustness against transient spikes.
- Maximum gate trigger current of 60 mA enabling reliable triggering.
- Maximum operating temperature rating of 125°C for durable performance.
- Screw type mounting ensures secure and stable attachment.
- Maximum holding current of 130 mA and maximum gate trigger voltage of 2 V for optimized control.
- Peak on-state voltage is 1.35 V, contributing to low conduction losses.
Product Description
Vishay VS-P135 Thyristor Module is a high-performance discrete semiconductor designed for applications requiring controlled rectification with excellent voltage and current ratings. This module features a repetitive peak reverse voltage (VDRM) of 1200 V and a surge current rating of 380 A, making it suitable for demanding industrial electronic circuits.
The module supports a rated average on-state current (Irms) of 25 A with a peak on-state voltage of only 1.35 V, which helps in minimizing conduction losses and improving energy efficiency. It has an 8-pin configuration with screw mounting, ensuring secure installation in various power electronics assemblies.
In addition, the VS-P135 offers a maximum gate trigger current (Igt) of 60 mA and holding current (Ih) of 130 mA, supported by a maximum gate trigger voltage (Vgt) of 2 V. These parameters facilitate stable triggering and operation within sensitive control environments. Operating temperature is rated up to 125°C, ensuring reliable performance under elevated thermal conditions.
Compact physical dimensions (63.5 mm length, 32.5 mm width, and 15.5 mm height) allow easy integration into single-phase and three-phase fully controlled bridge rectifiers. The screw terminal offers a robust and maintainable connection method.
This module belongs to the VS-P100 Series offering versatile connection options including Faston terminals and solder tips. It is engineered for industrial, laboratory, manufacturing, and power control applications where precise and robust thyristor switching devices are required.
Rated average on-state current of 25 A. Repetitive peak reverse voltage of 1200 V. Surge current rating of 380 A. Screw mounting for secure installation. Maximum gate trigger current of 60 mA. Compact dimensions for flexible use.
Operating temperature up to 125°C. Peak on-state voltage of 1.35 V. Maximum holding current of 130 mA. Maximum gate trigger voltage of 2 V.
Ideal for power electronics, industrial automation, and electronic component design projects requiring high voltage and current controlled rectification components. Browse more products like this Vishay Thyristor Module for advanced electric module solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-P135 Thyristor Module has a rated average on-state current of 25 A.
This model can handle a repetitive peak reverse voltage of up to 1200 V.
The surge current rating of the VS-P135 is 380 A, providing robustness against transient spikes.
The dimensions of this thyristor module are 63.5 mm in length, 32.5 mm in width, and 15.5 mm in height.
The maximum gate trigger current for the VS-P135 is 60 mA.
This model can operate at a maximum temperature of 125°C.
The VS-P135 features screw-type mounting for secure installation.
The peak on-state voltage of the Vishay VS-P135 is 1.35 V.
The maximum holding current for the VS-P135 is 130 mA.
This thyristor module is suitable for industrial, laboratory, manufacturing, and power control applications requiring controlled rectification.
The VS-P135 has an 8-pin configuration.
The Vishay VS-P135 belongs to the VS-P100 Series, which offers versatile connection options.
