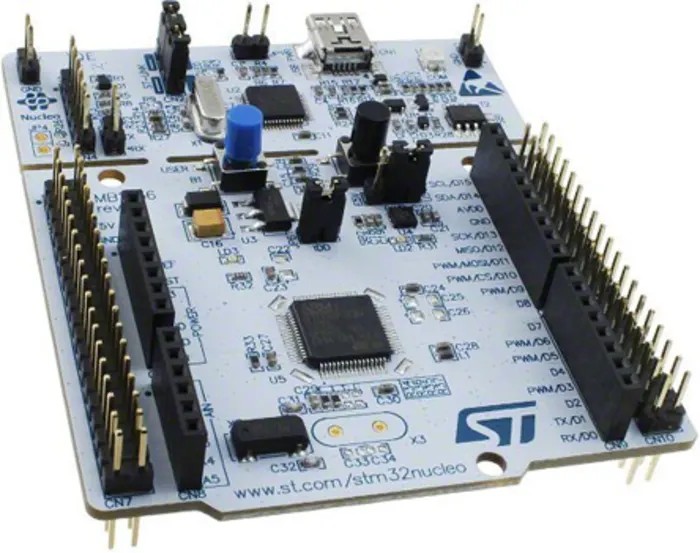

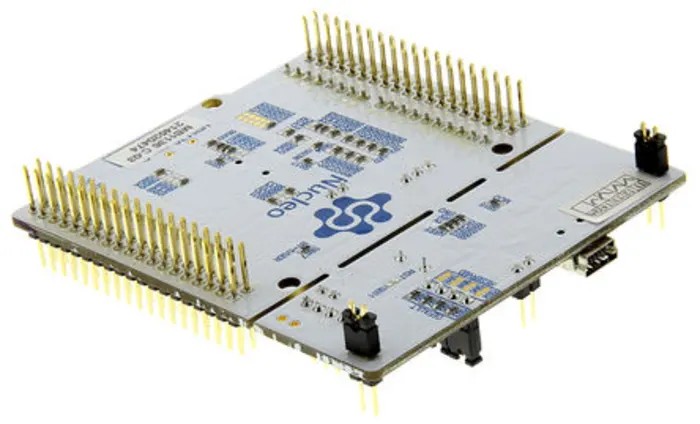

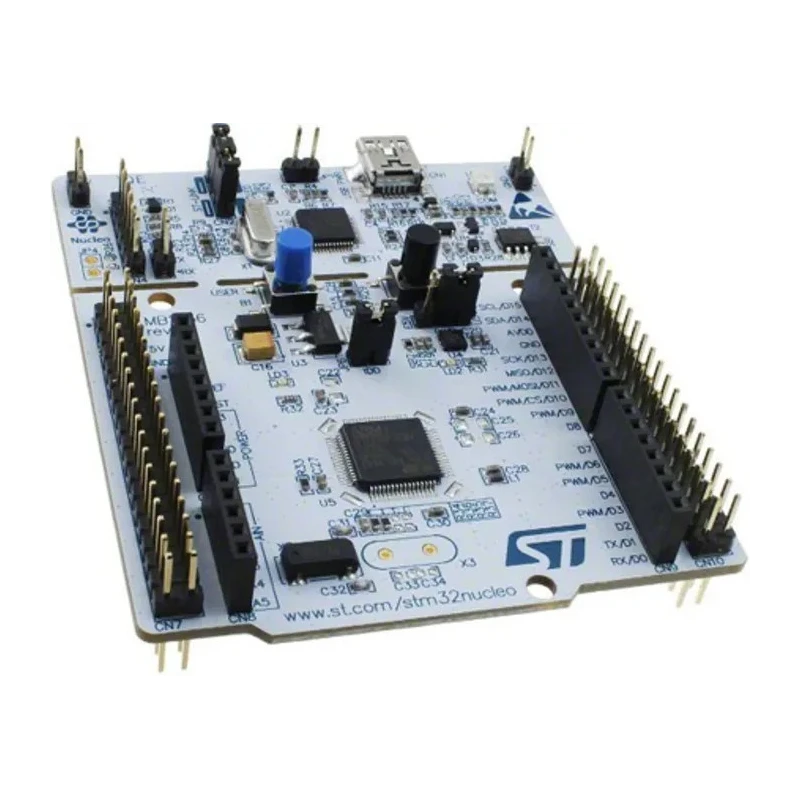

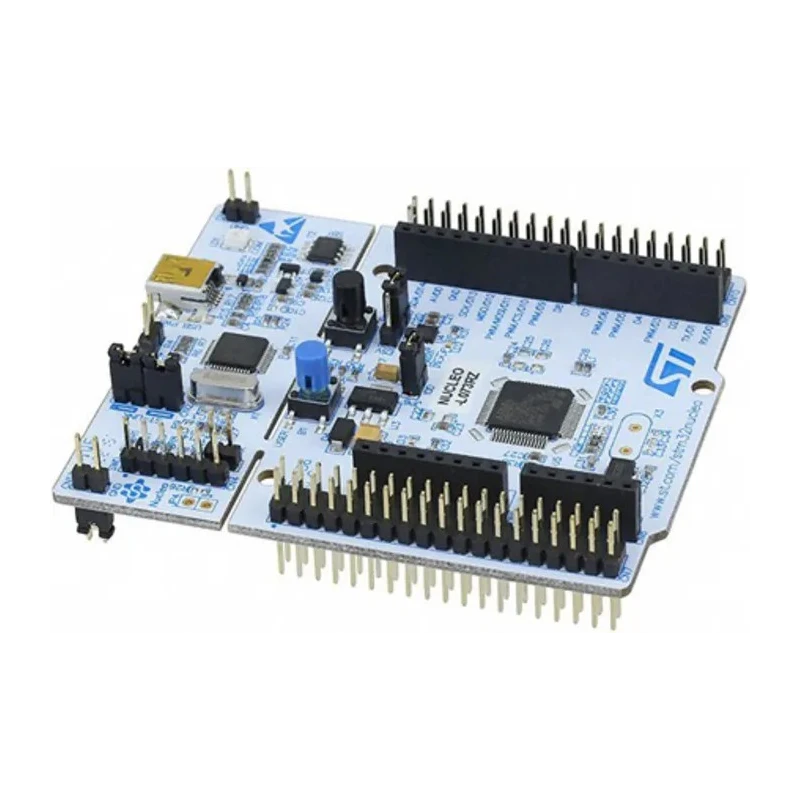

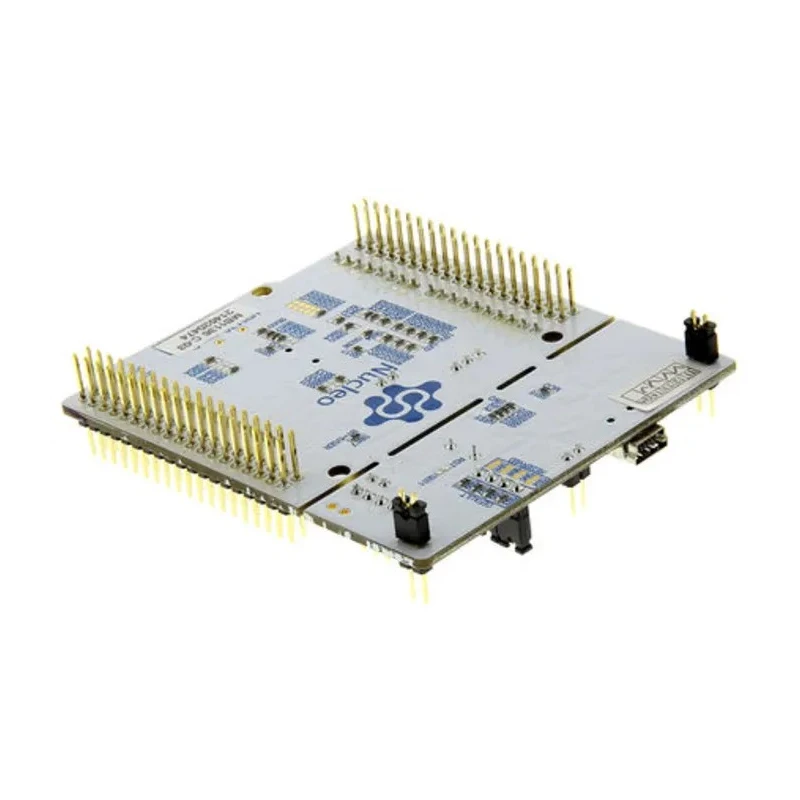

STMicroelectronics STM32 Nucleo-64 MCU Development Board 32MHz ARM Cortex M0+ Microcontroller NUCLEO-L073RZ

STMicroelectronics NUCLEO-L073RZ is a 64-pin development board featuring the ultra-low power STM32L073RZT6 microcontroller with a 32MHz ARM Cortex-M0+ core. Designed for embedded applications, it includes 192KB ECC Flash memory, 20KB RAM, and a 6KB ECC EEPROM, providing robust performance and reliability.

The board supports Arduino Uno v3 connectors enabling easy integration with a wide range of shields. Its ST morpho extension headers give full access to all MCU GPIOs, expanding versatility for development needs.

Onboard debugging is facilitated by the integrated ST-LINK/V2-1 debugger and programmer via SWD connector, simplifying programming and debugging tasks. The board supports diverse serial communication interfaces, including USART, SPI, I²C, and USB, suitable for numerous interfacing scenarios.

A notable feature is the support for 24 capacitive sensing channels, accommodating touchkey, linear, and rotary touch sensors. Additional features include an LCD driver for up to 4 x 52 or 8 x 48 segments and a CRC calculation unit, enabling advanced user interface and data integrity functions.

Equipped with three LEDs for USB communication, power status, and user purposes, along with reset and user pushbuttons, the board offers comprehensive control and status indication. This development tool is compatible with multiple Integrated Development Environments such as IAR, Keil, GCC-based toolchains, and ARM mbed platform, facilitating software development and rapid prototyping.

This product is RoHS compliant and manufactured in China, ensuring compliance with environmental standards. It is ideal for industrial, laboratory, educational, and prototyping use cases in embedded system design and development.

Features STM32L073RZT6 32MHz ARM Cortex M0+ microcontroller with 192KB Flash and 20KB RAM. Arduino Uno v3 connectivity and ST morpho pin headers for expansion. On-board ST-LINK/V2-1 debugging and programming interface. Supports USART, SPI, I²C, USB serial communication protocols.

24 capacitive sensing channels for versatile touch sensor applications. Includes LCD driver, CRC unit, and unique 96-bit ID. Three LEDs and pushbuttons for user interface and control. Compatible with IAR, Keil, GCC, and ARM mbed IDEs.

RoHS compliant and manufactured in China. Explore the range of microcontroller development tools and kits on EnvMart to find compatible accessories and complementary products for your embedded projects.
