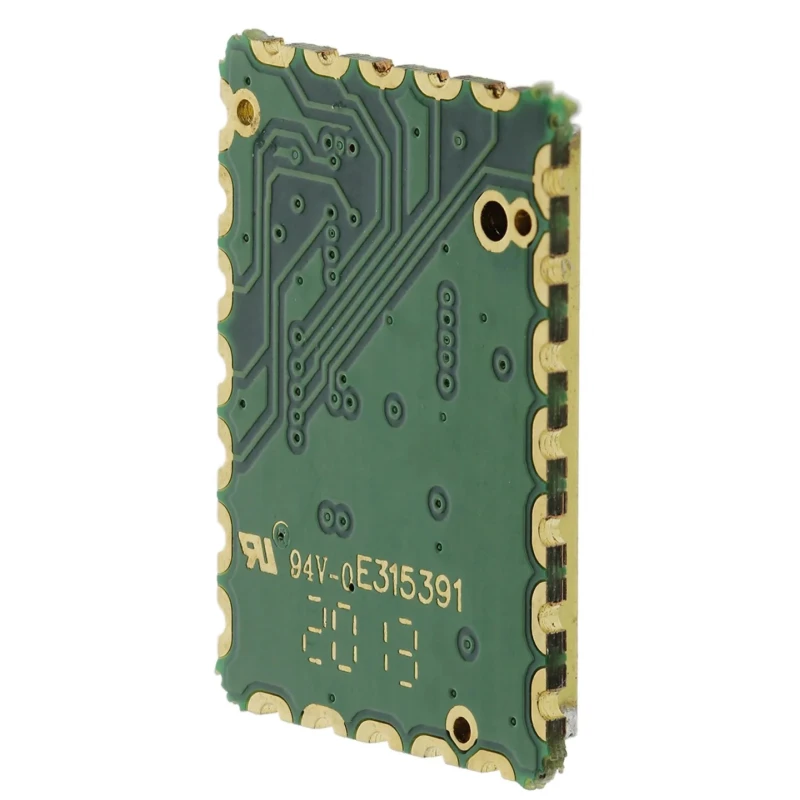

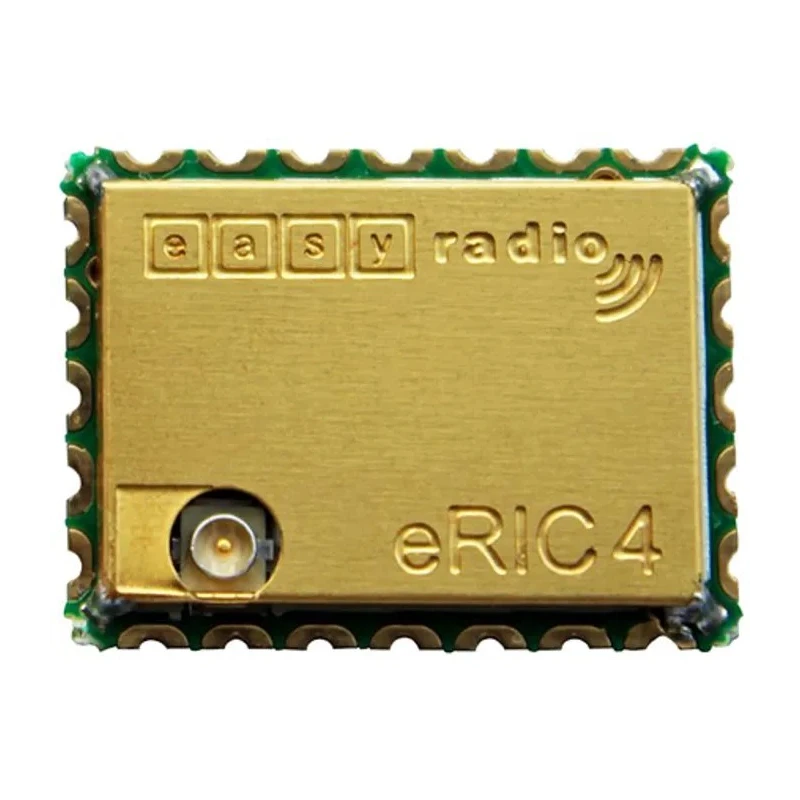

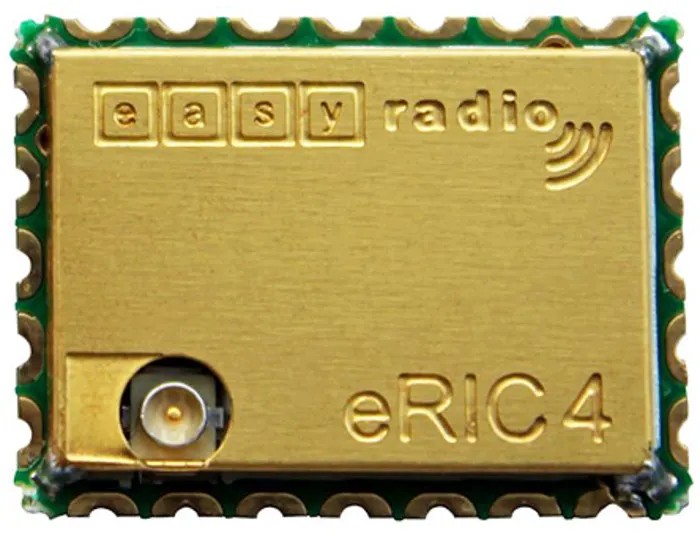

LPRS easyRadio ERIC4 RF Transceiver Module 433 MHz Communication & Wireless Development Tool LPRS, ERIC4

LPRS LPRS, ERIC4 RF Transceiver Module 433 MHz is a compact communication and wireless development tool based on Texas Instruments CC430 System-on-Chip featuring a 32KB flash memory and 4KB RAM with MSP430 core. It is optimized for Internet of Things (IoT) applications requiring simple sense and control RF nodes with low power consumption. The built-in protected easyRadio Operating System (eROS) provides users with high-level access to radio functions while allowing application code in a portion of the flash memory.

The module operates on the 433 MHz ISM frequency band and delivers a maximum RF output power of +12dBm, with receiver sensitivity down to -111dBm at 1200bps, enhancing wireless communication reliability. It supports a maximum RF data rate of 500 kbps and a host data rate of 115.2 kbps, communicating via serial UART with RTS/CTS handshaking for robust data exchange.

Additional features include AES-128 encryption for data security, an onboard temperature sensor for environmental monitoring, and a U.FL connector for an external antenna to improve signal reception. The module is powered by a DC voltage supply between +2.4V and +6.0V with an integrated +3.3V low dropout regulator ensuring stable voltage supply.

With dimensions of 15 x 20 x 2.2 mm in an SMD package and operating temperature range from -40 to +85 °C, the ERIC4 module is suitable for embedded, industrial, and commercial IoT solutions requiring compact and efficient RF transceiver capabilities.

Utilizes Texas Instruments CC430 SoC with MSP430 core and embedded easyRadio OS. Operates in 433 MHz ISM band with +12dBm max RF power output. Receiver sensitivity of -111dBm at 1200bps ensures reliable signal reception.

Supports up to 500 kbps RF data rate and 115.2 kbps host data rate via UART. Includes AES-128 data encryption and programmable GPIO for customization. Onboard temperature sensor and U.FL connector for external antenna. Powered by +2.4V to +6.0V DC with onboard +3.3V LDO regulator.

Compact SMD form factor measuring 15 x 20 x 2.2 mm. Wide operating temperature range from -40 to +85 °C for industrial applications.

This transceiver module offers a ready-to-use RF communication solution for IoT, wireless sensor networks, and embedded control systems requiring low power, secure, and reliable data transmission. Ideal for industrial, manufacturing, automation, and research applications.
