Microchip Power Management Development Kit FB, PD with PD70201 5V 5A Power Detector Evaluation Board

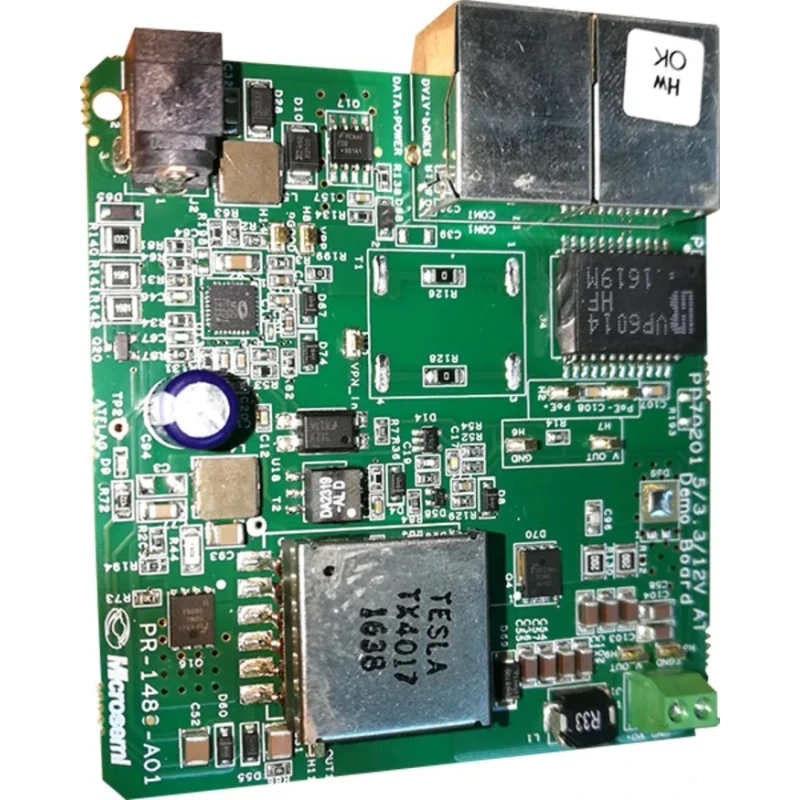

Microchip PD70201EVB-U-25F-5 Power Management Development Kit is an evaluation board built to assess the performance of the PD70201 power detector device. The kit supports a wide input voltage range from 17 V to 54 V enabling use in various power supply conditions. It consists of a 25 W power device that features a DC isolated DC-DC converter to efficiently step down the input voltage to a regulated 5 V output at up to 5 A current.

The board prioritizes the AUX input for supplying the load when connected, with the PD inputs serving as backup power sources when the AUX input is disconnected. This design ensures uninterrupted operation in applications requiring reliable power delivery.

Engineered according to IEEE 802.3af and IEEE 802.3at standards, the kit supports both standard and non-standard applications, making it suitable for use in Power over Ethernet and related systems. The use of flyback topology optimizes the conversion efficiency and stability of the power supply.

For connectivity, the board includes two RJ45 connectors dedicated to data and power input, as well as data output, facilitating integration in embedded and industrial systems.

This power management development kit is ideal for engineers developing or testing power detector functionality in electronics, communication, and industrial automation sectors. It supports rapid evaluation and prototyping to accelerate product development cycles.

The kit supports input voltages from 17 to 54 V. Designed for both standard IEEE 802.3at and non-standard applications. DC isolated DC-DC converter provides step-down voltage output. AUX input supplies priority power, with PD inputs acting as backup.

Includes two RJ45 connectors for data and power input/output. Implements flyback topology for power conversion. Complies with IEEE 802.3af and 802.3at standards. Suitable for power management development and evaluation applications.

Environmentally compliant with ISO standards, this evaluation board simplifies testing and validation of power detectors in varied use cases including industrial, communication, and embedded system applications.
