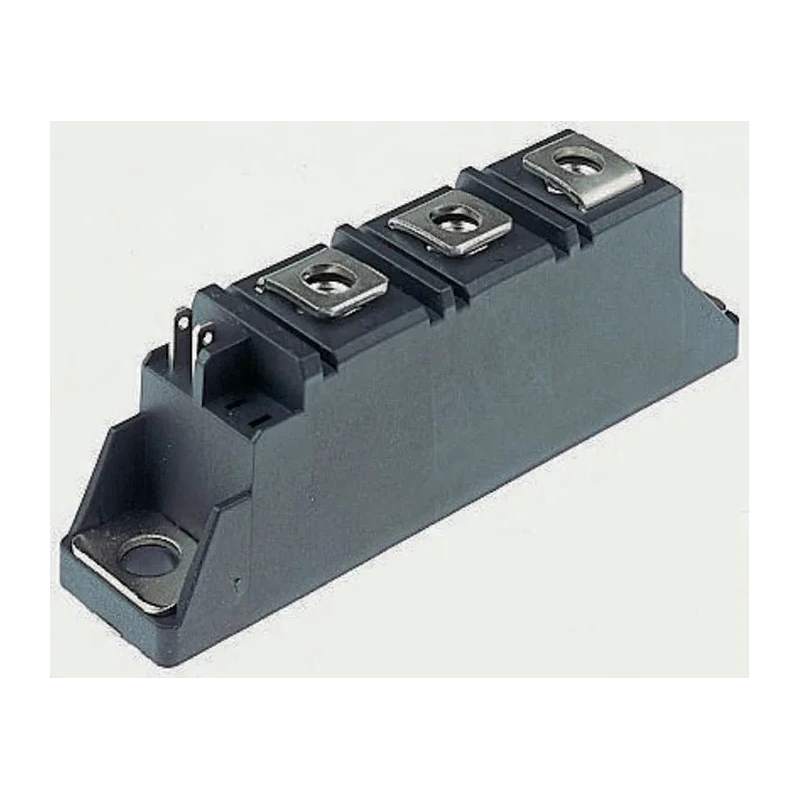

IXYS Dual Thyristor Module 2200V 1.8kA 104A 100mA TO-240AA Panel Mount MCC94-22IO1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 92mm |
| Model | MCC94-22IO1B |
| Width | 20.8mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-240AA |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 104A |
| Repetitive Peak Reverse Voltage VDRM | 2200V |
| Surge Current Rating | 1.8kA |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.74V |
| Repetitive Peak Off-State Current | 15mA |
Key Features
- Dual thyristor module with 2200V repetitive peak reverse voltage for reliable high-voltage switching.
- Rated average on-state current of 104A, suitable for heavy-duty applications.
- Peak surge current rating up to 1.8kA provides dependable performance during transient events.
- Panel mount TO-240AA form factor with electrically isolated baseplate enhances installation safety.
- Gate trigger current of 100mA and holding current of 150mA ensure precise control.
- Peak on-state voltage of 1.74V optimizes power efficiency.
- 7-pin configuration allows for easy integration into electronic circuits.
- Operating temperature up to 125°C enables use in high-temperature environments.
Product Description
The IXYS MCC94-22IO1B is a high-performance dual thyristor module designed for industrial power control applications requiring reliable high-voltage and robust current capabilities. This module features a repetitive peak reverse voltage of 2200V, making it suitable for demanding environments where voltage surges are expected. With a rated average on-state current of 104A and a surge current rating of 1.8kA, it can handle heavy electrical loads and transient events typical in industrial and commercial settings.
The device utilizes a TO-240AA 7-pin package, providing a panel-mount option with an electrically isolated baseplate to ensure safety and ease of installation. The gate trigger current is rated at 100mA, and the holding current is 150mA, supporting precise control over switching operations. Peak on-state voltage is specified at 1.74V, enhancing power efficiency during conduction.
Its encapsulated module construction is designed to withstand environmental stresses and allow for dependable operation up to a maximum operating temperature of 125°C. The compact dimensions of 92mm length, 20.8mm width, and 30mm height enable efficient use in varied enclosure sizes.
Functional in applications such as battery chargers, welding machines, plating equipment, regulated power supplies, and temperature or speed control circuits, the MCC94-22IO1B is a versatile module for professionals seeking durability and performance. The 7-pin configuration simplifies integration and supports flexible circuit design.
Key features include high voltage and current ratings, panel-mounted TO-240AA package, electrically isolated baseplate, encapsulated module design, and compatibility with various industrial power control systems. Its UL recognition contributes to peace of mind in regulated environments.
Industrial, laboratory, manufacturing, HVAC, power supply, and energy management sectors benefit from the use of this thyristor module. For more related products and to browse the complete line of industrial semiconductor solutions, explore IXYS and EnvMart's category of Thyristor Modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this module is 2200V, making it suitable for high-voltage applications.
The rated average on-state current for this model is 104A, allowing it to handle significant electrical loads in industrial applications.
This thyristor module has a surge current rating of 1.8kA, providing reliable performance during transient events.
The maximum operating temperature for the MCC94-22IO1B is 125°C, enabling its use in high-temperature environments.
This module utilizes a TO-240AA package type, which is designed for panel mounting.
The MCC94-22IO1B features a 7-pin configuration, facilitating easy integration into electronic circuits.
The peak on-state voltage for this module is specified at 1.74V, which helps optimize power efficiency during conduction.
The maximum gate trigger current for this thyristor module is 100mA, allowing for precise control over switching operations.
This thyristor module is suitable for applications such as battery chargers, welding machines, and regulated power supplies.
The dimensions of this model are 92mm in length, 20.8mm in width, and 30mm in height.
The maximum holding current for this model is 150mA, which is important for maintaining the thyristor in the on-state.
The MCC94-22IO1B is manufactured in India, ensuring compliance with local manufacturing standards.
