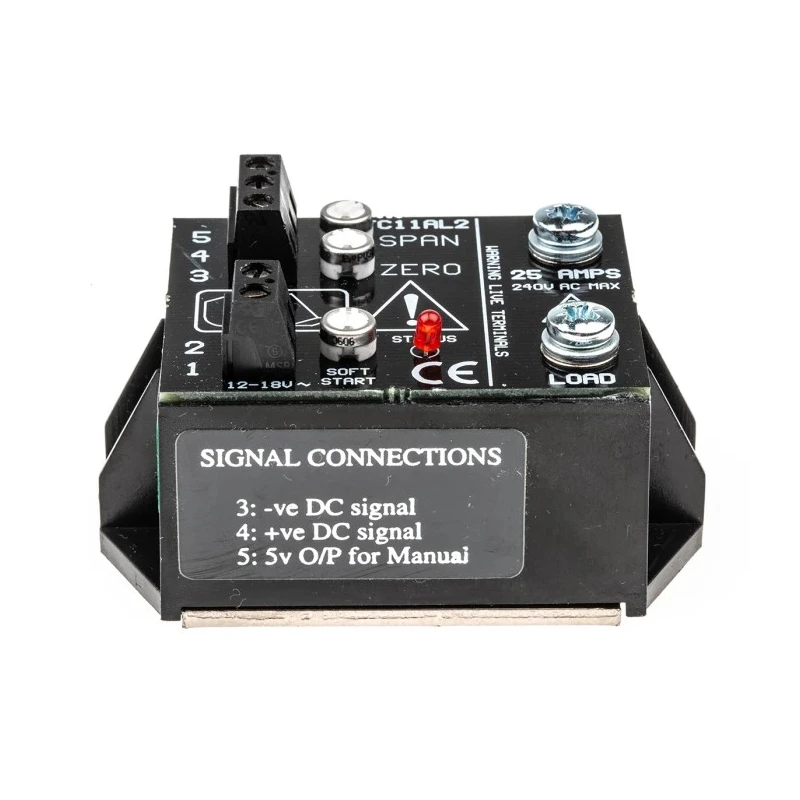

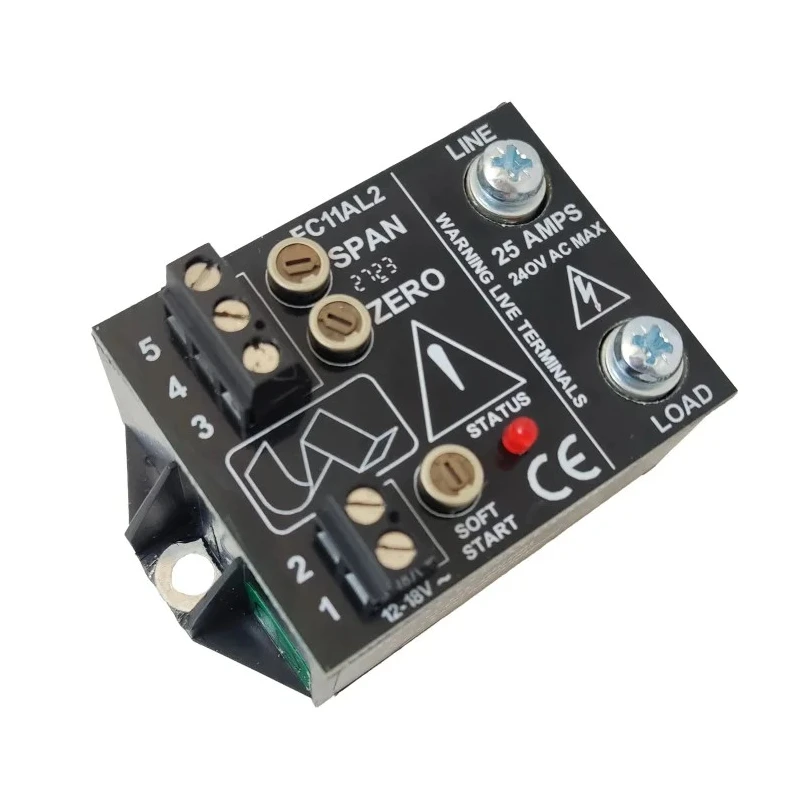

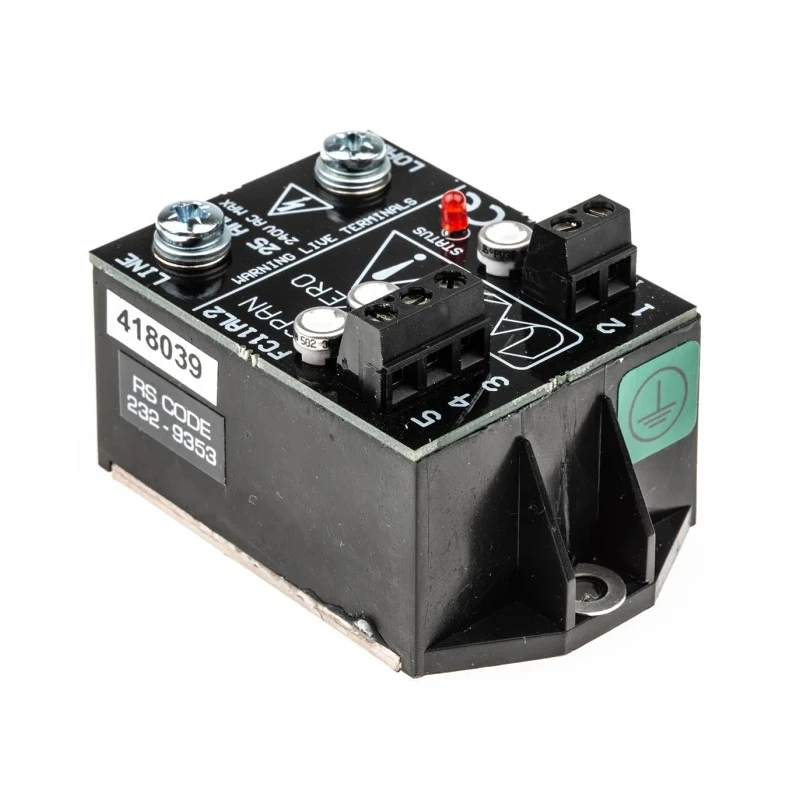

United Automation Universal Phase Angle Module Surface Mount 26 A Rated Current 250 A Surge Current 65°C Max FC11AL/2

United Automation FC11AL/2 Universal Phase Angle Module is a surface mount Thyristor Module engineered for industrial and electronic control applications. It supports a rated average on-state current of 26 A and a surge current rating of 250 A, suitable for controlling AC loads with precision and reliability.

This module features a single-phase firing system with an internal triac enabling variable phase angle control. It includes adjustable signal matching and a selectable soft start function to minimize electrical stresses during startup.

Designed for use with 110/230V loads up to 25 A on appropriate heat sinks, the module is capable of handling inductive loads such as transformers and full wave vibrators. The robust design includes a high isolation voltage rating to provide electrical safety and compatibility in demanding industrial environments.

Additional functional features include an auxiliary 5 V d.c. output for manual control operations, reinforcing its versatility in automation setups. The maximum operating temperature is rated at 65°C, ensuring stability in various ambient conditions.

Physically compact, the device measures 73 mm in length and 44 mm in width allowing easy mounting and integration on control panels or printed circuit boards. Single phase firing module with internal triac and variable phase angle control.

Adjustable signal matching with selectable soft start for smooth operation. Compatible with 110/230V loads up to 25A on suitable heat sinks. Handles inductive loads including transformers and full wave vibrators. High isolation voltage for enhanced safety and noise rejection.

Includes auxiliary 5 V d.c. output for manual control. Maximum operating temperature rated at 65°C for reliable industrial use. Compact size: 73 mm length and 44 mm width.

This Universal Phase Angle Module is ideal for use in industrial automation, power control systems, and electronic components requiring precise AC load control and regulation. Its reliable construction and versatile features make it well suited for manufacturing, laboratory automation, and power electronics applications.
