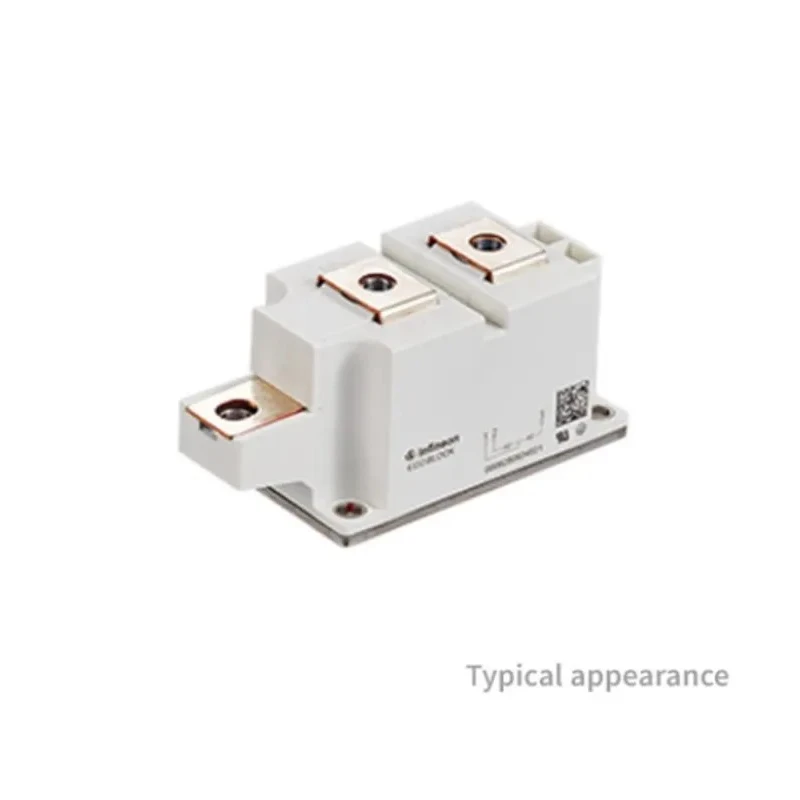

Infineon Thyristor Module 1800 V, 9.5 kA, 320 A, 150 mA, 7-Pin, TD320N18SOFHPSA1

Infineon TD320N18SOFHPSA1 Thyristor Module is an industrial-grade semiconductor designed for demanding power electronics and phase control applications. With a rated average on-state current of 320 A and a repetitive peak reverse voltage of 1800 V, this module delivers high reliability and performance in environments requiring robust surge protection and current handling capabilities.

The thyristor features a surge current rating of 9.5 kA, ensuring stability and endurance under transient overloads. Its maximum gate trigger current is 150 mA, with a corresponding gate trigger voltage of 2 V, making it suitable for direct integration into industrial control and power conversion systems.

The 7-pin module form factor enables compatibility with standardized circuit footprints, simplifying assembly and maintenance. Holding current is rated at a reliable 150 mA, and the peak on-state voltage is maintained at 1.47 V. It operates comfortably within a maximum temperature of 130°C, supporting a broad range of industrial processes.

Operates at a rated average on-state current of 320 A. Repetitive peak reverse voltage up to 1800 V ensures robust performance. Surge current rating of 9.5 kA for reliable operation under high loads. Maximum gate trigger current is 150 mA with a gate trigger voltage up to 2 V.

7-pin module form factor allows easy integration into standard circuit footprints. Maximum holding current is 150 mA, supporting stability during operation. Peak on-state voltage of 1.47 V at rated conditions. Withstands operating temperatures up to 130°C for wide range use.

Optimized for industrial power electronics including phase control and power conversion.

This solid-state device is ideal for use in power converters, motor controls, phase regulators, and high-current switching applications in manufacturing, automation, and process industries. It is part of the TT320N18SOF series, recognized for high thermal and electrical robustness.

Infineon's advanced semiconductor technology ensures predictably high performance, long lifetime, and easy mounting with its reliable eco block design. Suitable for applications such as industrial, laboratory, and commercial power distribution where resilience and operational continuity are critical.
