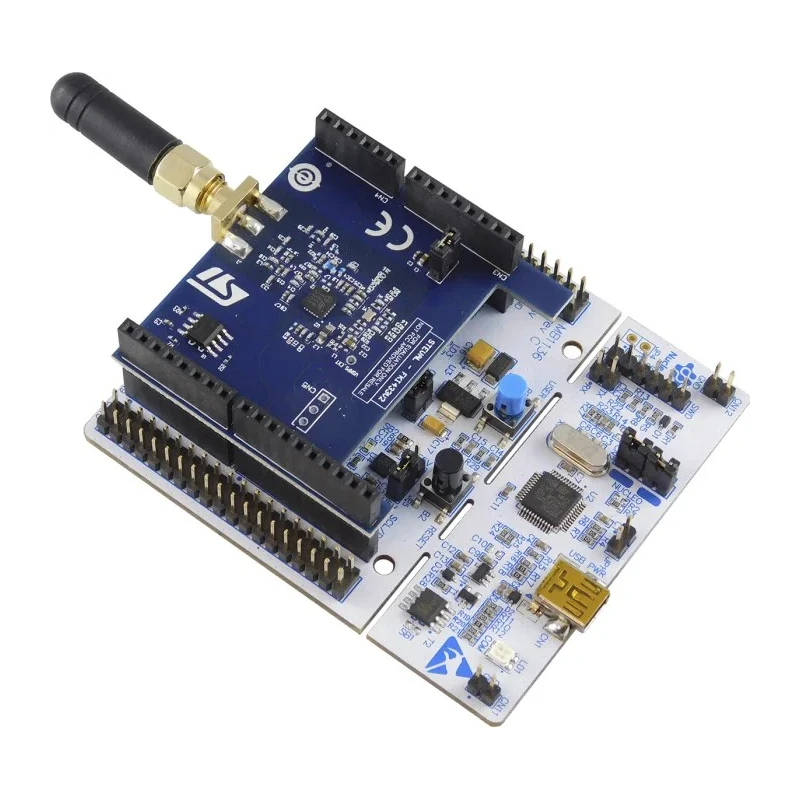

STMicroelectronics S2-LP Sub-1GHz Transceiver Wireless Development Kit for STM32 Nucleo-64, SPI/USB Interface STEVAL-FKI433V2

The STMicroelectronics STEVAL-FKI433V2 is a highly integrated transceiver development kit designed for rapid prototyping and low-power wireless applications operating in the sub-1GHz RF spectrum. This kit is built around the S2-LP narrow band ultra-low power transceiver module, meticulously tuned for the 430 - 470 MHz frequency bands, making it suitable for a range of industrial, metering, and IoT use cases.

At its core, the development kit incorporates the STM32 Nucleo-64 development board equipped with an STM32L0 microcontroller, offering a flexible and energy-efficient platform for wireless communication tasks. The kit provides a robust set of features to enable developers to easily test, evaluate, and optimize RF device performance under various real-world scenarios.

The highly sensitive S2-LP transceiver supports multiple modulation schemes, including 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK, while programmable RF output power reaches up to +16 dBm. Data rates are selectable from 0.3 to 500 kbps, and the module features receiver sensitivity up to -130 dBm, supporting low-duty cycle and long-range operations critical in smart utility and industrial systems.

Connectivity options on the STEVAL-FKI433V2 encompass both SPI and USB interfaces. The SPI interface allows direct control from the STM32L0 microcontroller or integration with other systems, while the USB port provides convenient PC or host device connectivity. The development kit comes with associated documentation, sample firmware for STM32L, and an intuitive GUI, streamlining application development and evaluation.

The ultra-low-power design enables extended autonomous operation with minimal energy requirements - drawing as little as 6.7 mA in receive mode and just 10 mA for +10 dBm transmit output. Automatic acknowledgment, retransmission, timeout protocol engines, and low-duty cycle RX/TX modes support robust, reliable wireless networking and M2M applications such as smart meters, remote monitoring, and building automation.

The STEVAL-FKI433V2 is supplied as a complete bundle with required accessories to swiftly start wireless communication development. Its design is compliant with RoHS standards, ensuring suitability for contemporary industrial and scientific environments. Typical use cases include wireless M-Bus networks, industrial sensor nodes, remote control, home and building automation, and low-power IoT endpoints.

For further communication, compatibility, and integration, the kit contains sample documentation, firmware, and a graphical user interface to support rapid deployment in laboratory, R&D, industrial, and commercial projects within the sub-1GHz short- and long-range wireless segment.
