Semikron Danfoss Diode/Thyristor Module SCR 1200 V 95 A 150 mA 2 kA 1.65 V SKKH 92/12 E

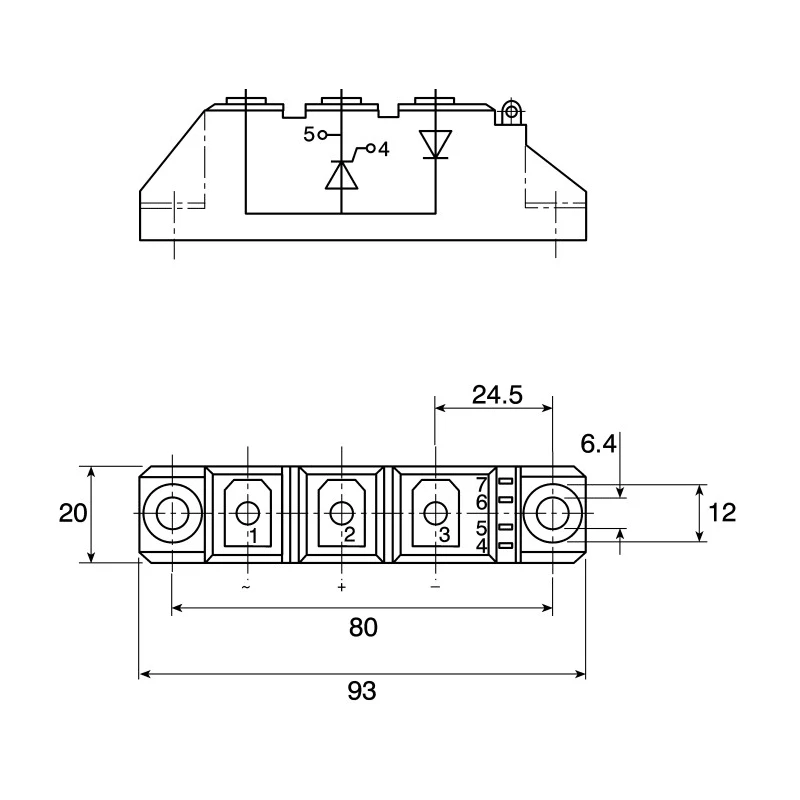

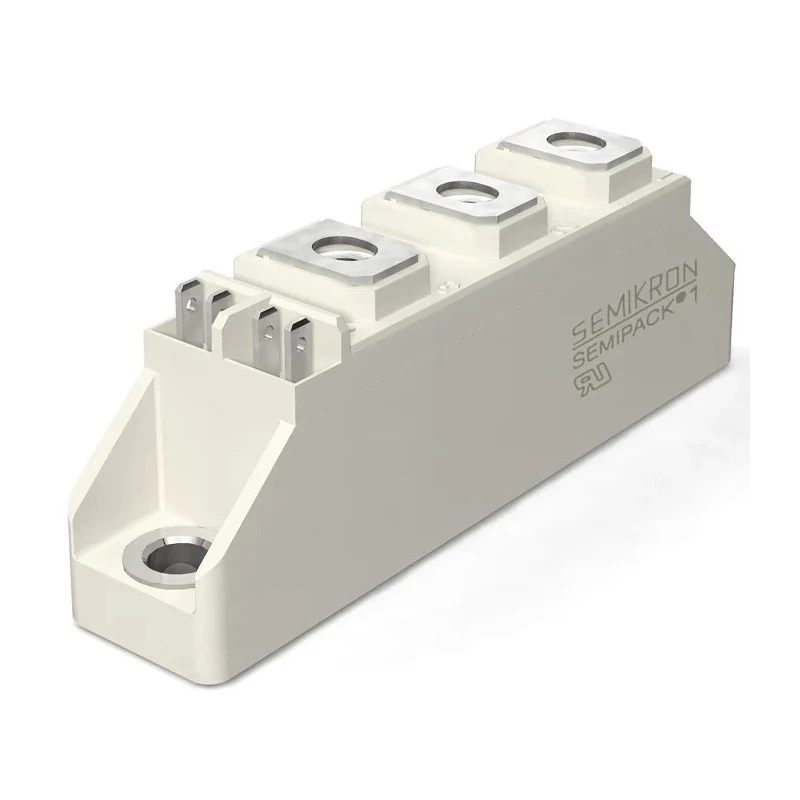

Semikron Danfoss SKKH 92/12 E is a diode/thyristor module designed for industrial power control applications, providing a repetitive peak reverse voltage of 1200 V and a rated average on-state current of 95 A. Encapsulated in a SEMIPACK 1 package and featuring a panel mounting type, this module delivers robust and reliable performance in demanding electrical environments.

The module supports surge currents up to 2 kA, accommodating high transient currents typical in battery chargers, welders, and plating equipment. A maximum gate trigger current of 150 mA and gate voltage of 3 V enable precise triggering and control of the silicon-controlled rectifier (SCR). Operating temperatures range from -40°C to 125°C, ensuring dependable functionality across various industrial conditions.

Semikron Danfoss's SKKH 92/12 E contains 5 pins and maintains a peak on-state voltage of 1.65 V during operation. Its electrically isolated base plate enhances safety when integrated into power supplies, motor controls, and temperature regulation circuits. While the module does not include automotive certifications, it remains a trusted component for many industrial and commercial electrical applications.

Encapsulated SEMIPACK 1 package with panel mount. Peak reverse voltage of 1200 V and surge current rating of 2 kA. Gate trigger current max 150 mA and gate voltage max 3 V. Operating temperature range from -40°C up to 125°C.

Five-pin configuration with a peak on-state voltage of 1.65 V. Ideal for battery chargers, welding, regulated power supplies, and speed control. Robust construction with electrically isolated base plate.
