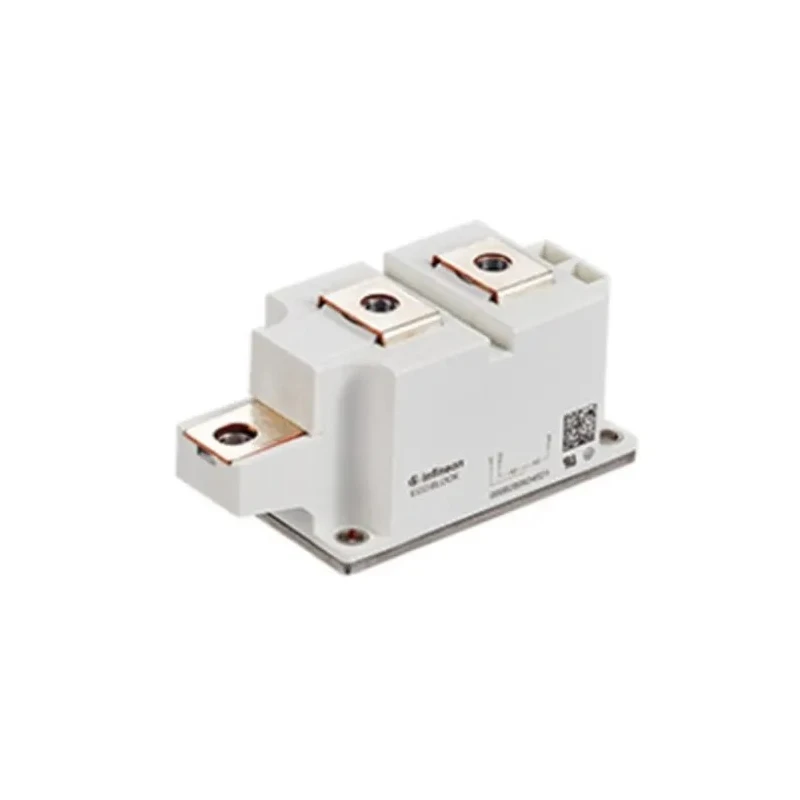

Infineon Thyristor Module 1600 V 9 kA Surge Current 280 A Rated On-State Current TD280N16SOFHPSA1

Infineon TD280N16SOFHPSA1 Thyristor Module is a robust semiconductor device tailored for industrial power control applications. It features a 1600 V repetitive peak reverse voltage and a surge current rating of 9 kA, suitable for managing high transient loads effectively. The device supports a rated average on-state current of 280 A, allowing it to handle substantial continuous currents.

This thyristor module is equipped with an electrically insulated base plate that enhances safety and aids in effective thermal dissipation within industrial environments. It employs solder bond technology packaged in an industrial standard form factor, ensuring durability and ease of integration.

The module's electrical characteristics include a maximum gate trigger current and holding current of 150 mA, a maximum gate trigger voltage of 2 V, and a peak on-state voltage drop of 1.77 V, optimizing switching efficiency and control precision. Its maximum operating temperature is rated at 130°C, enabling reliable functionality under challenging operating conditions. Repetitive peak off-state current is minimal at 30 mA, contributing to overall low leakage and improved device reliability.

This Thyristor Module is ideally used in industrial soft starters, power controllers, battery chargers, and static switches, making it an essential component in power electronics for industrial machines, manufacturing equipment, and automation systems.

Includes electrically insulated base plate for enhanced safety and thermal management. Supports a maximum operating temperature of 130°C for reliable performance. Utilizes solder bond technology within an industrial standard package.

Maximum gate trigger current and holding current are rated at 150 mA. Peak on-state voltage is 1.77 V ensuring efficient operation. Repetitive peak reverse voltage rating is 1600 V for high voltage endurance. Designed for use in soft starters, power controllers, battery chargers, and static switches.

Repetitive peak off-state current is 30 mA with maximum gate trigger voltage of 2 V.

For engineers and system integrators, this module provides reliable and high-performance operation in power electronic applications, adhering to industrial standards. Explore the extensive range of Infineon power management modules and components available at EnvMart for your project requirements.
