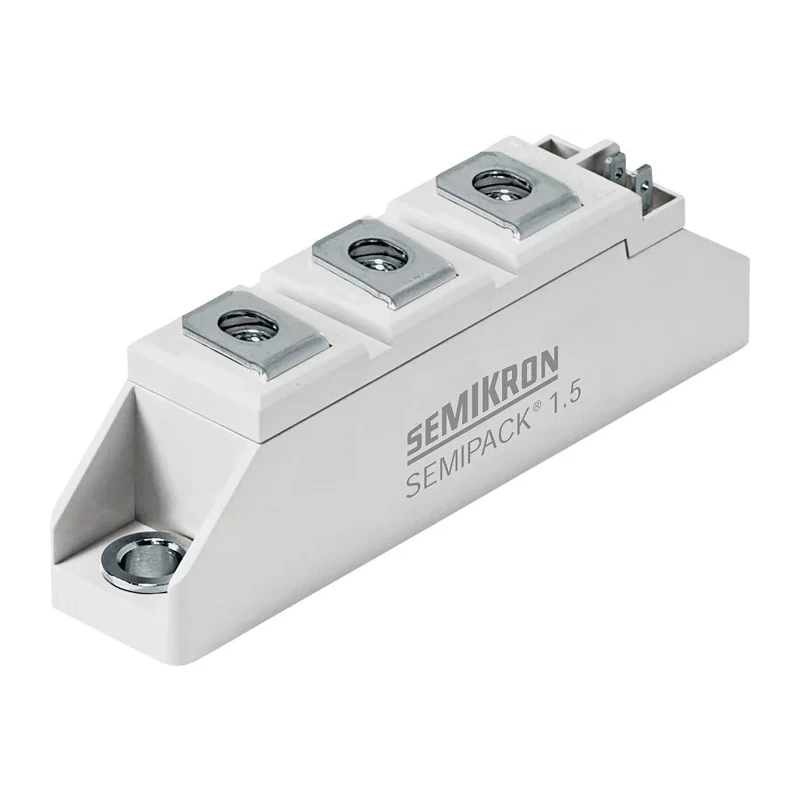

Semikron Danfoss Dual Thyristor Module 1200 V 70 A 150 mA 1.6 kA 1.9 V SKKT 72/12 E
Specifications
| Country of Origin | Slovakia |
|---|---|
| Brand | Semikron Danfoss |
| Model | SKKT 72/12 E |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Package Type | SEMIPACK1 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 70A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 1.6kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 250mA |
| Maximum Gate Trigger Voltage Vgt | 3V |
| Peak On-State Voltage | 1.9V |
| Repetitive Peak Off-State Current | 20mA |
| IRKT56/12Brand | International Rectifier |
| IRKT71/12Brand | International Rectifier |
Key Features
- Constructed as a dual thyristor module in a SEMIPACK1 package for efficient power control.
- Rated with a repetitive peak reverse voltage of 1200 V ensuring high voltage endurance.
- Supports a surge current rating of 1.6 kA for transient load handling.
- Operates across a temperature range from -40°C to 125°C for versatile industrial applications.
- Features a maximum gate trigger current of 150 mA and maximum gate trigger voltage of 3 V.
- Comprises 7 pins with a panel mount type for integration ease.
- Maximum holding current is 250 mA with a peak on-state voltage of 1.9 V, optimizing conduction efficiency.
- Manufactured in Slovakia, designed as a new semiconductor component.
Product Description
Semikron Danfoss SKKT 72/12 E is a dual thyristor module designed as a Semiconductor Power Module with a voltage rating of 1200 V and capable of handling an average on-state current of 70 A. This module uses SCR type thyristors encapsulated within a SEMIPACK1 package, featuring an electrically isolated base plate. It is engineered to provide reliable switching and control in power electronics applications such as battery chargers, welders, plating equipment, regulated power supplies, and speed or temperature control circuits.
The device has a repetitive peak reverse voltage of 1200 V, and can withstand surge currents up to 1.6 kA, making it suitable for handling power transients. The gate trigger current maximum is rated at 150 mA, with a maximum gate trigger voltage of 3 V, ensuring controlled and efficient triggering. The module includes 7 pins and is designed for panel mounting, facilitating installation in industrial control systems.
Operating temperatures for this module range from -40°C to 125°C, supporting diverse industrial environments. Additional electrical characteristics include a maximum holding current of 250 mA and a peak on-state voltage of 1.9 V, contributing to its efficiency and durability. It does not carry automotive or additional standards and approvals but is UL recognized.
Manufactured under strict quality controls in Slovakia, this module represents a new product condition semiconductor device, ideal for high-demand electronic circuits requiring reliable power switching.
Constructed as a dual Thyristor Module in a SEMIPACK1 package for efficient power control. High voltage endurance with a repetitive peak reverse voltage of 1200 V. Surge current rating of 1.6 kA enables effective transient handling.
Wide operating temperature range from -40°C to 125°C. Maximum gate trigger current of 150 mA and gate trigger voltage of 3 V. 7-pin configuration with panel mount type for ease of installation. Maximum holding current of 250 mA and a low peak on-state voltage of 1.9 V.
UL recognized component made in Slovakia, suitable for industrial applications. Discover a broad range of electronic components and thyristor solutions on EnvMart to enhance your power management and industrial control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this module is 1200 V, ensuring high voltage endurance for various applications.
This model has a rated average on-state current of 70 A, suitable for handling significant electrical loads.
The surge current rating for this thyristor module is 1.6 kA, allowing it to manage transient loads effectively.
It operates within a temperature range of -40°C to 125°C, making it versatile for various industrial environments.
This module features a 7-pin configuration, facilitating easy integration into panel-mounted applications.
The maximum gate trigger current for this thyristor module is 150 mA, ensuring efficient triggering during operation.
The peak on-state voltage of this model is 1.9 V, which optimizes conduction efficiency.
This module uses SCR type thyristors, which are designed for reliable switching and control in power electronics applications.
The maximum holding current for this module is 250 mA, contributing to its operational efficiency.
The package type of this model is SEMIPACK1, which is designed for efficient power control.
This thyristor module is manufactured in Slovakia, ensuring adherence to strict quality controls.
It is suitable for applications such as battery chargers, welders, plating equipment, and regulated power supplies.
