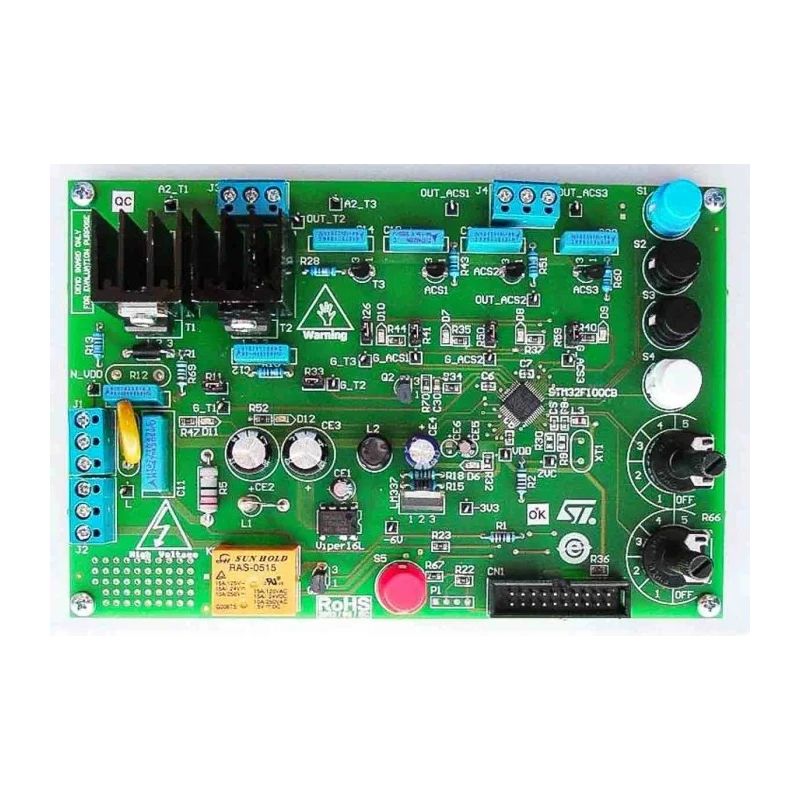

STMicroelectronics Demonstration Board Motor Controller for STM32F100, Evaluation Board for Home Appliance STEVAL-IHT005V2
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IHT005V2 |
| For Use With | Home Appliance Applications |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STM32F100 |
| Kit Name | Demonstration Board |
Key Features
- Features 32-bit STM32F100C4T6B MCU running at 24 MHz with 16 kBytes of Flash memory.
- Includes 12-bit A/D converter, 5 timers, communication interfaces, and 4 kBytes SRAM.
- Robust 3.3 V full solution validated for 4 kV level class A IEC-61000-4-4 burst immunity.
- Power supply based on VIPer16L offline converter with 800 V avalanche-rugged power section operating at 60 kHz.
- Allows evaluation of AC switch control feasibility with 3.3 V supply and gate current measurements.
- Complies with RoHS standards and is manufactured in Italy.
Product Description
STMicroelectronics STEVAL-IHT005V2 is an evaluation demonstration board Motor Controller designed primarily for home appliance applications. It uses the 48-pin 32-bit STM32F100C4T6B microcontroller running at 24 MHz, featuring 16 kBytes of Flash memory, a 12-bit analog-to-digital converter, five timers, several communication interfaces, and 4 kBytes of SRAM memory. This evaluation board exemplifies robust 3.3 V system design complying with the IEC-61000-4-4 standard, offering 4 kV level class A burst immunity, suitable for industrial and home appliance environments.
The on-board power supply is powered by the VIPer16L, an offline converter with an 800 V avalanche-rugged power section operating at 60 kHz frequency. It provides a negative 6 V output in a buck-boost topology which enables efficient motor control operations. Engineers and developers can use this board to assess AC switch control functionality at a 3.3 V supply voltage and produce gate current measurements as referenced in the ST application note AN2986.
This evaluation board supports the development and prototyping of motor control systems in home appliances and related applications, providing a comprehensive platform for motor driver development and testing.
Features a robust 3.3 V power solution with high-level burst immunity. Integrates STM32F100 MCU and supporting peripherals for motor control purposes. Includes offline VIPer16L power supply controller for reliable voltage regulation.
Enables measurement and analysis of gate currents for AC switch control. Complies with RoHS standards and is manufactured in Italy.
This product is well-suited for industrial developers involved in power, motor, and robotics development tools seeking reliable demonstration and evaluation hardware. Browse related STMicroelectronics solutions and development tools at EnvMart for advanced motor control design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features the 32-bit STM32F100C4T6B microcontroller, which operates at a frequency of 24 MHz.
It includes 16 kBytes of Flash memory and 4 kBytes of SRAM.
This evaluation board is primarily designed for home appliance applications.
It uses the VIPer16L offline converter, which has an 800 V avalanche-rugged power section operating at 60 kHz.
The power supply provides a negative 6 V output in a buck-boost topology.
This evaluation board is manufactured in Italy.
It is intended for evaluating AC switch control feasibility and measuring gate currents at a 3.3 V supply.
The product is classified as an evaluation board for demonstration purposes.
It complies with RoHS standards, ensuring it meets environmental safety requirements.
It allows for the assessment and prototyping of motor control systems in home appliances and related applications.
