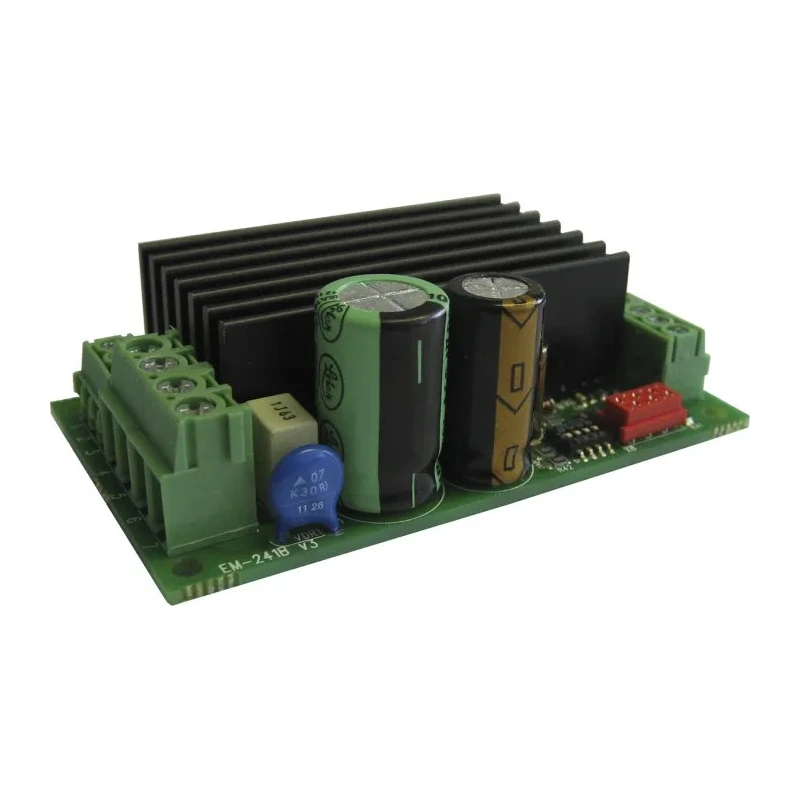

Electromen OY PWM DC Motor Controller 10V-35V 15A, Compact DIN Rail Mount EM-241-SPF

Electromen OY EM-241-SPF PWM DC Motor Controller is a high-efficiency solid-state positioning driver designed for DC motors operating at supply voltages between 10V and 35V and sustaining a continuous current of 15A with peak capability up to 30A. The controller uses FET transistor technology ensuring reliable power stage operation with minimal losses.

This controller enables highly accurate positioning with a maximum accuracy of 0.2%, which is critical for actuator and motor positioning in industrial automation applications. It accommodates feedback signals from encoders or Hall sensors via one or two line pulse inputs, ideally using quadrature pulse signals for precise movement tracking.

The input control signal is analog and supports three different voltage/current ranges: 0-5V, 0-11V, or 4-20mA. The input scale is freely configurable within these ranges allowing integration into diverse control systems. The learn routine facilitates quick range determination and range adjustment using limit switch parameters.

Dynamic settings such as load compensation, dead-zone (positioning window), and soft start and stop ramps improve operational smoothness and reduce mechanical shock. An adjustable braking zone and configurable current limits for each direction enhance safe motor control and protect equipment.

Equipped with an onboard LED, the driver provides diagnostic indications for fault conditions, which can also be externally signaled via the combiport. This port can be reconfigured to output 'position OK' signals or retransmit the current position through an analog voltage, allowing integration into monitoring systems.

The device exhibits very low RF emissions, making it suitable for use in sensitive electromagnetic environments including medical equipment. The compact form factor supports DIN rail mounting, enabling easy installation in control panels.

Configuration options for this motor controller include the EM-236 interface unit, EM-268 PC-based software Menthol-Lite, and the EM-326 smartphone Menthol-App, providing versatile settings adjustment methods.

Typical industrial applications include automation control, robotics, actuator positioning, and other precision motor control scenarios in manufacturing, HVAC systems, and laboratory instrumentation.

Explore more Motor Controllers and automation solutions on EnvMart for advanced industrial control needs. Capable of continuous 15A current and peak 30A at 2kHz PWM switching frequency. Provides precise positioning accuracy up to 0.2% for actuator applications.

Supports feedback via one or two pulse lines, including 0°/90° quadrature pulse input. Offers flexible analogue control input ranges: 0-5V, 0-11V, or 4-20mA, freely scalable. Features dynamic adjustment options including load compensation, dead-zone setting, soft start/stop ramps, and adjustable braking zones.

Compact design suitable for DIN rail mounting and has low RF emissions for electromagnetic compatibility. Includes onboard LED indicator for fault detection and external fault signaling capability. Control parameters can be configured via interface units, PC software, or smartphone app.

Operates reliably within temperature range of -40°C to 60°C.
