Semikron Danfoss Dual Thyristor Module 1600V, 106A, SCR, SEMIPACK1 SKKT 106B16 E

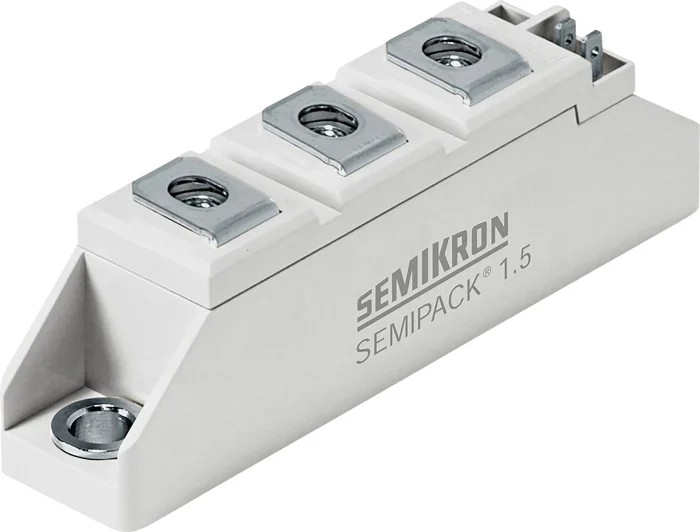

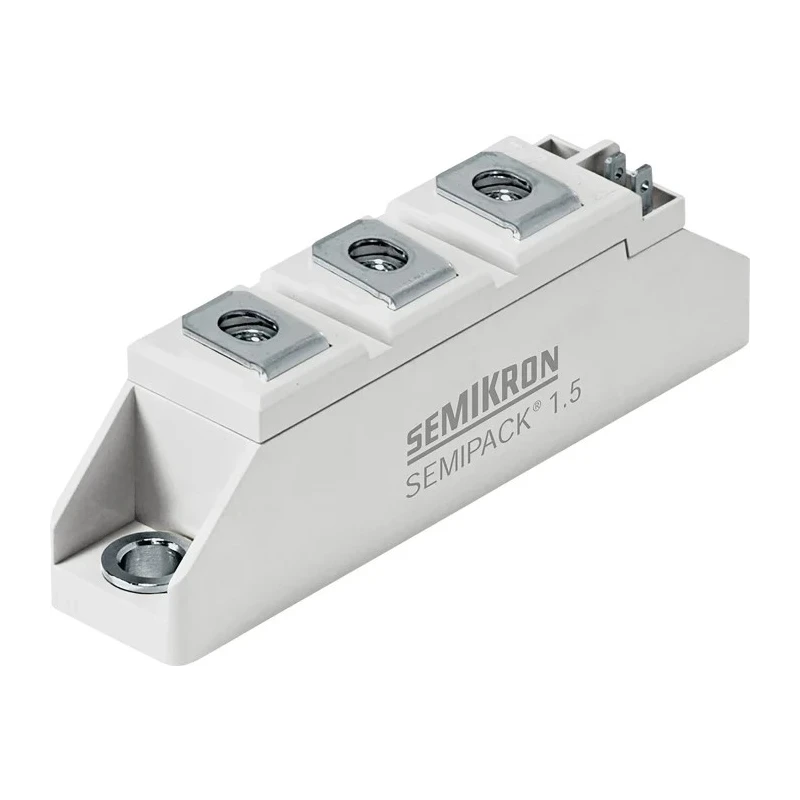

The Semikron Danfoss SKKT 106B16 E is a dual thyristor module engineered for industrial and demanding electronic applications where precise power switching is required. Featuring a robust SCR design in a SEMIPACK1 package, it delivers reliable performance for panel-mounted installations.

This module supports a rated average on-state current of 106 A, ensuring its suitability for high-power circuits. It operates at a repetitive peak reverse voltage of 1600 V and can withstand surge currents up to 2.25 kA, making it ideal for environments where power fluctuations are common. The device includes a maximum gate trigger current of 150 mA and maintains a peak on-state voltage of 1.65 V, balancing both speed and efficiency in power control.

With 7-pin connectivity and encapsulated construction, the SKKT 106B16 E provides assured electrical isolation and modular integration. Its wide operating temperature range from -40°C to 130°C guarantees reliability in both extreme cold and elevated industrial heat.

This thyristor module finds use in battery charging systems, welding equipment, plating apparatus, regulated power supplies, and speed control circuits. The SCR characteristic assures bistable switching, allowing the device to conduct when triggered, and maintain conduction while forward biased, crucial for industrial automation and precision control.

Durably constructed with advanced semiconductor layers, the module ensures high efficiency and safety, especially in power electronics and semiconductor applications. Panel mount configuration simplifies installation and maintenance. This module is a cornerstone in industrial electronics for applications requiring high current, voltage, and rapid switching.

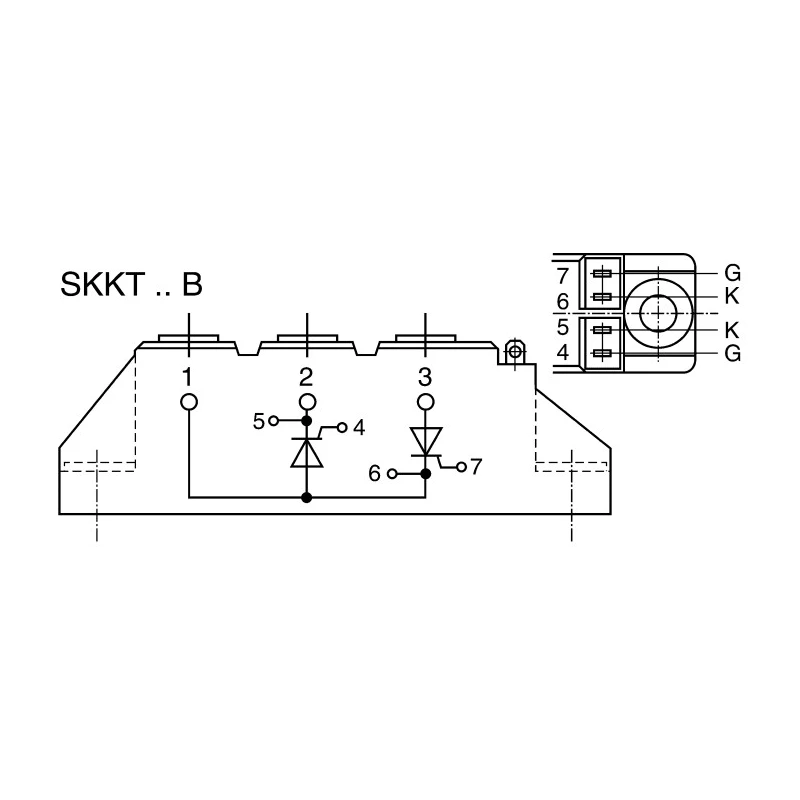

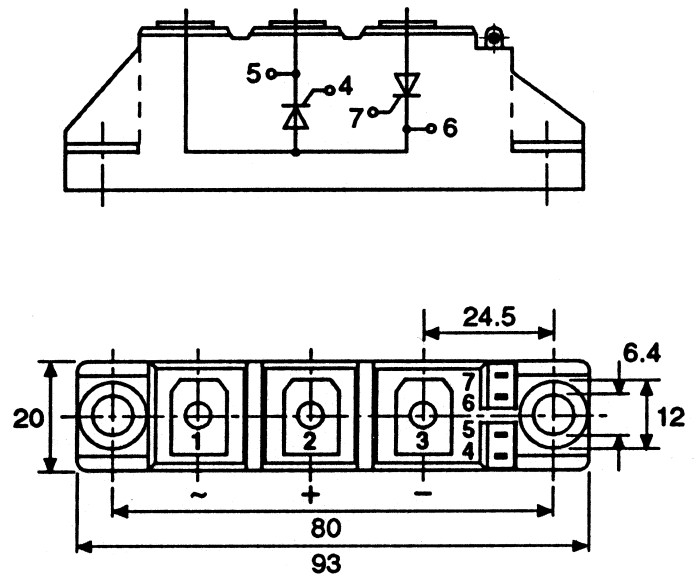

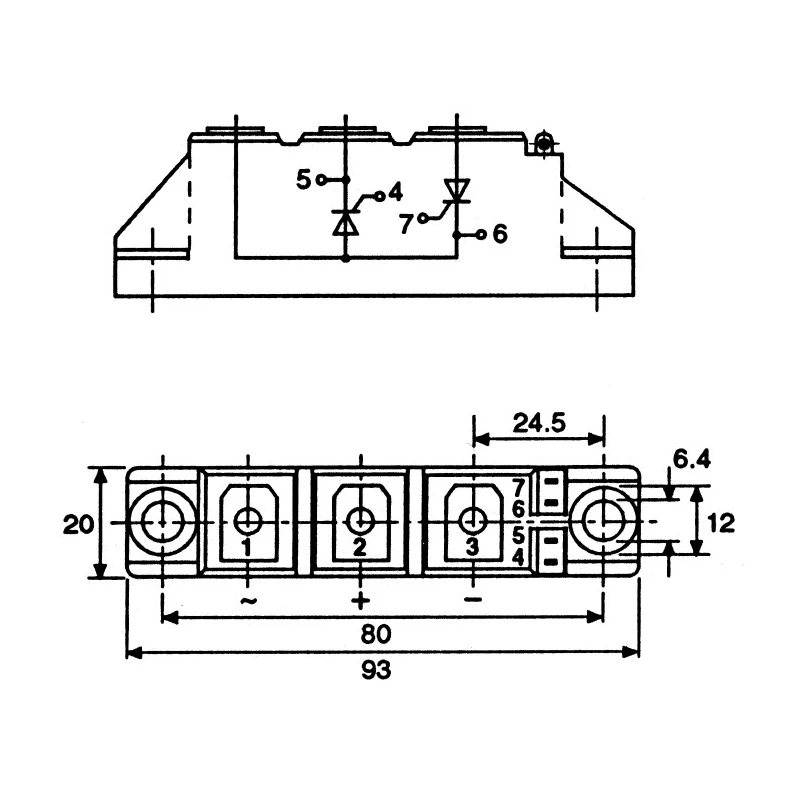

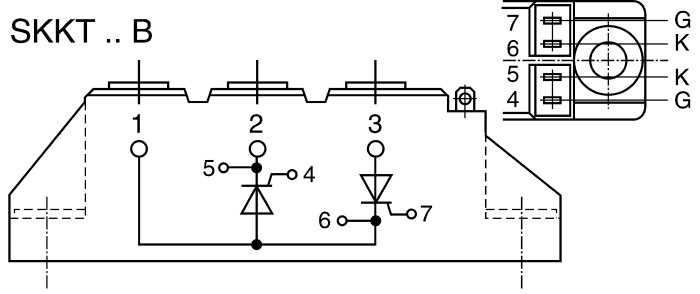

Dual thyristor module provides efficient switching and long-term reliability. Operates at 1600 V repetitive peak reverse voltage and 106 A average on-state current. Panel mount and 7-pin interface supports robust integration into complex systems.

Wide operational temperature range suits demanding environments. Ideal for battery chargers, welding and plating systems, regulated power supplies, and power control circuits. Meets industrial specification for surge and gate trigger currents.

Reliable SCR construction ensures safe and precise power switching.
