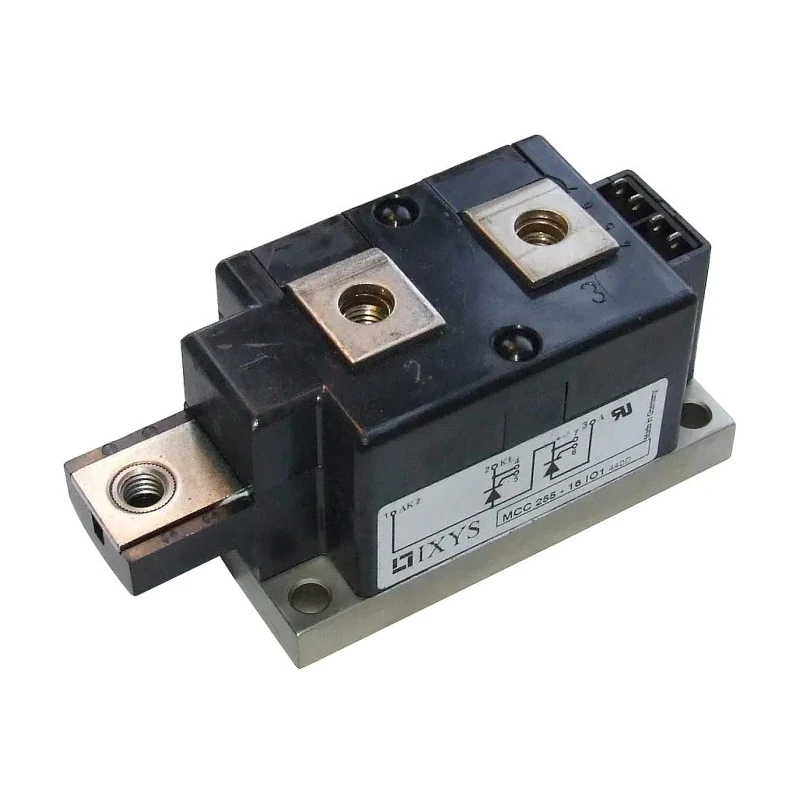

IXYS Dual Thyristor Module 1600V, 9.6kA, 250A, Panel Mount, 7-Pin MCC255-16IO1

IXYS MCC255-16IO1 is a dual thyristor module engineered for use in advanced power electronics applications requiring high voltage and high current control. The module offers reliable performance for demanding environments such as battery chargers, welding and plating equipment, regulated power supplies, temperature and speed controls, and other industrial power circuits.

The MCC255-16IO1 features a repetitive peak reverse voltage of 1600V, ensuring superior insulation and protection in commercial and industrial electrical systems. With a surge current rating of 9.6kA and an average on-state current of 250A, this module is designed for circuits where high transient and continuous current profiles are crucial.

Its panel mount construction and encapsulated design provide an electrically isolated base plate, simplifying installation and enhancing operational safety. The module incorporates a 7-pin terminal interface and supports maximum gate trigger current of 150mA, allowing precision triggering and control. Maximum holding current is 150mA, maintaining stable operation during switching events, while gate trigger voltage is limited to 2V for fast response.

Peak on-state voltage of 1.36V ensures efficient conduction with minimal energy loss. Operating temperature is rated up to 130°C for robust performance across a range of industrial environments.

Typical applications include battery charging stations, welding equipment, electroplating systems, regulated DC and temperature controls, and speed control circuits within industrial, commercial, and laboratory settings.

The MCC255-16IO1 is ideal for system designers and electrical engineers needing reliable, high-performance thyristor modules. Explore more advanced power modules, thyristors, and related electrical solutions from IXYS and other leading brands in the Thyristor Module category on EnvMart.
