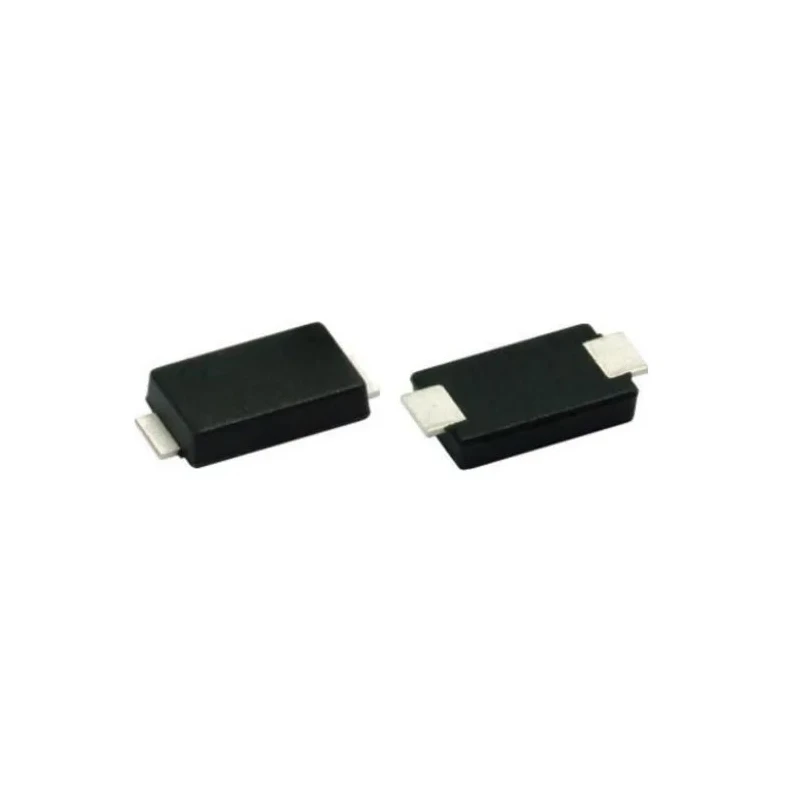

Vishay 150 V 5 A Rectifier Schottky Diode, Surface Mount, DO-221AC Package, 2-Pin, VSSAF5M15HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 5.35mm |
| Model | VSSAF5M15HM3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | VSSAF5M15 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JESD 201 Class 2 whisker test, RoHS and AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 180μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1.15V |
Key Features
- Designed for efficient power rectification in surface mount configurations.
- Maximum continuous forward current of 5 A for high power applications.
- Peak reverse repetitive voltage rated at 150 V for robust performance.
- Single Schottky diode with two-pin DO-221AC package dimensions.
- Low forward voltage drop (max 1.15 V) for high efficiency operation.
- Peak reverse current only 180 μA ensures low leakage.
- Supports surge current up to 100 A for transient events.
- Complies with JESD 201 Class 2 whisker test, RoHS and AEC-Q101 standards.
Product Description
Vishay VSSAF5M15HM3/H Schottky diode combines high performance 150 V reverse voltage and 5 A continuous forward current in a compact, surface-mount DO-221AC package. This diode is designed for demanding power rectification tasks in modern electronic circuits, including commercial, industrial, and automotive environments.
The device utilizes trench MOS Schottky technology, resulting in low forward voltage drop, high efficiency, and minimized power loss. Its low-profile construction (height 1 mm, length 5.35 mm, width 2.7 mm) makes it ideal for automated placement and dense PCB layouts.
Designed for efficient power rectification in surface mount configurations. Maximum continuous forward current of 5 A for high power applications. Peak reverse repetitive voltage rated at 150 V for robust performance. Single Schottky diode with two-pin DO-221AC package dimensions.
Low forward voltage drop (max 1.15 V) for high efficiency operation. Peak reverse current only 180 μA ensures low leakage. Supports surge current up to 100 A for transient events. Wide operating temperature: -40°C to +175°C, suitable for automotive and industrial applications.
Complies with JESD 201 Class 2 whisker test, RoHS and AEC-Q101 standards. Ideal for use in DC/DC converters, inverters, polarity protection and freewheeling applications.
Engineered to meet stringent international standards (RoHS, AEC-Q101, JESD 201 Class 2), this diode is suitable for automotive modules, industrial power supplies, high frequency inverters, and polarity protection circuits. Its fast switching, low leakage, and high surge capability make it a reliable choice for critical semiconductor designs.
Applications include DC/DC converters, low voltage battery circuits, freewheeling diodes, high-frequency inverters, and polarity protection in manufacturing, laboratory, and automotive sectors.
Browse more Vishay semiconductor products in the Schottky Diodes category on EnvMart for advanced discrete solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5 A, making it suitable for high power applications.
This diode has a peak reverse repetitive voltage rating of 150 V, ensuring robust performance in various applications.
The dimensions of the DO-221AC package are 1 mm in height, 5.35 mm in length, and 2.7 mm in width.
The peak reverse current for this model is 180 μA, which ensures low leakage.
The maximum forward voltage drop for this Schottky diode is 1.15 V, contributing to its high efficiency operation.
It supports surge current up to 100 A for transient events, making it suitable for demanding applications.
The operating temperature range is from -40°C to +175°C, making it suitable for automotive and industrial applications.
This model complies with JESD 201 Class 2 whisker test, RoHS, and AEC-Q101 standards.
This diode features a single Schottky diode configuration, suitable for various rectification tasks.
Typical applications include DC/DC converters, low voltage battery circuits, freewheeling diodes, and polarity protection.
The diode has a pin count of 2, consistent with its surface mount design.
This model uses surface mounting, which is ideal for automated placement in dense PCB layouts.
