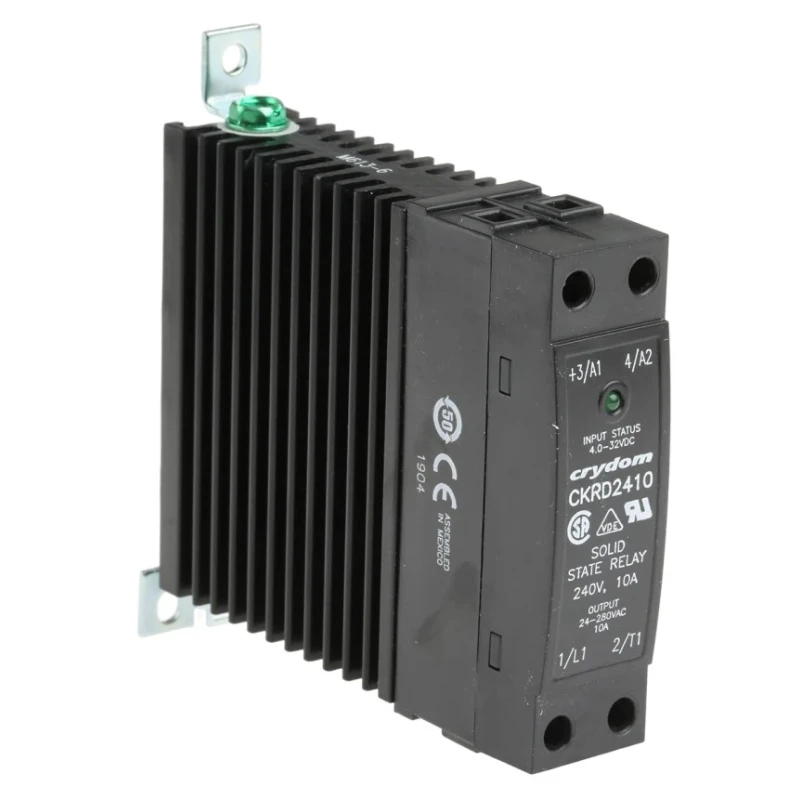

Crydom CKR Series Solid State Relay 10 A Load 280 Vrms Load 32V Control DIN Rail Mount CKRD2410

Crydom CKRD2410 Solid State Relay from the CKR Series is a high-performance relay designed for industrial and automation applications requiring reliable switching of electrical loads up to 10 amps. Featuring DIN rail mounting and a maximum load voltage of 280 Vrms with control voltages between 4V and 32V DC, this device offers dependable operation in demanding environments.

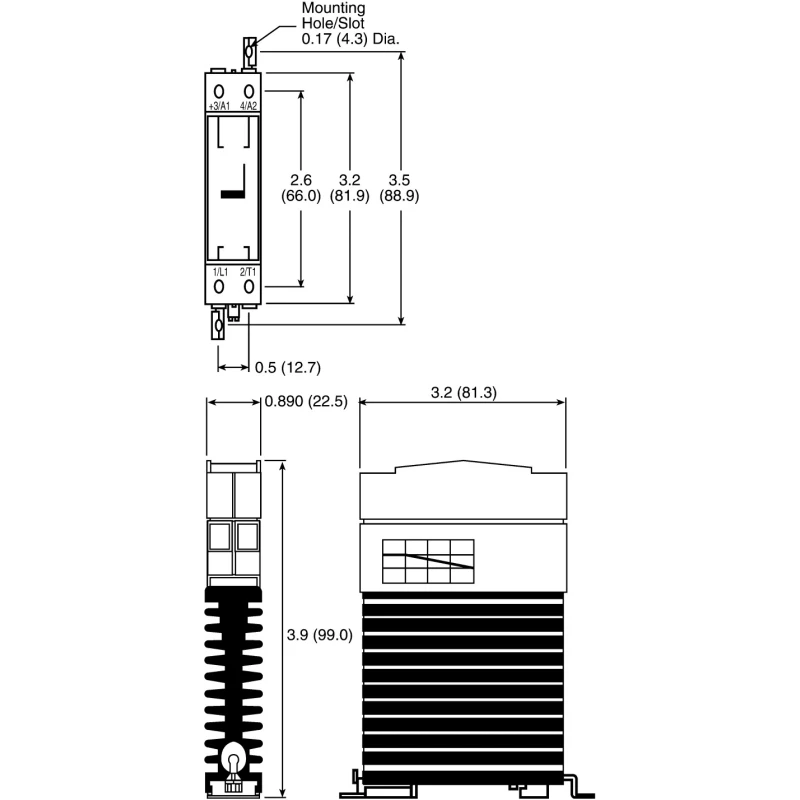

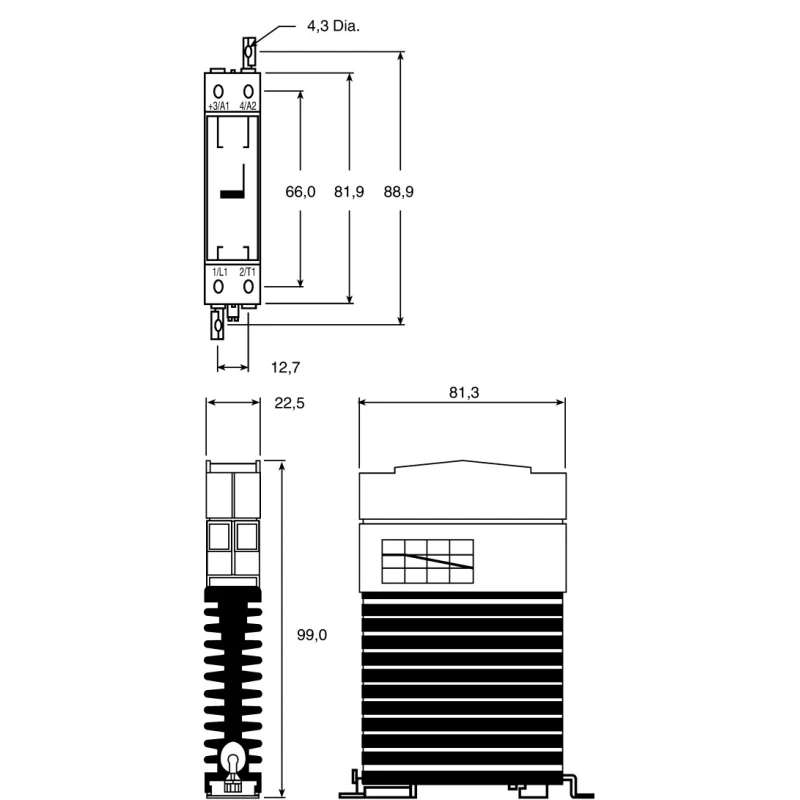

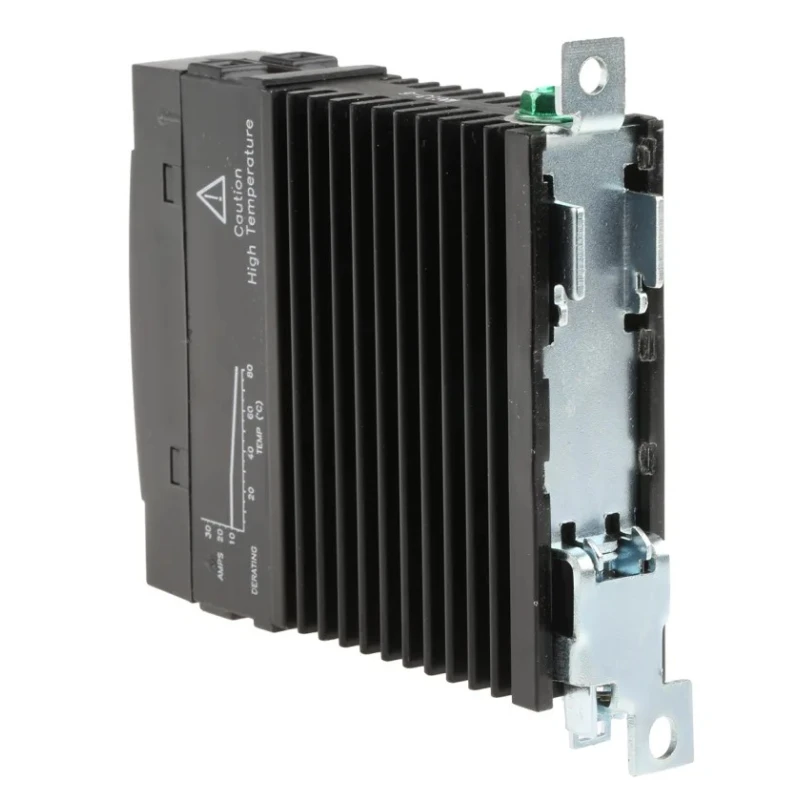

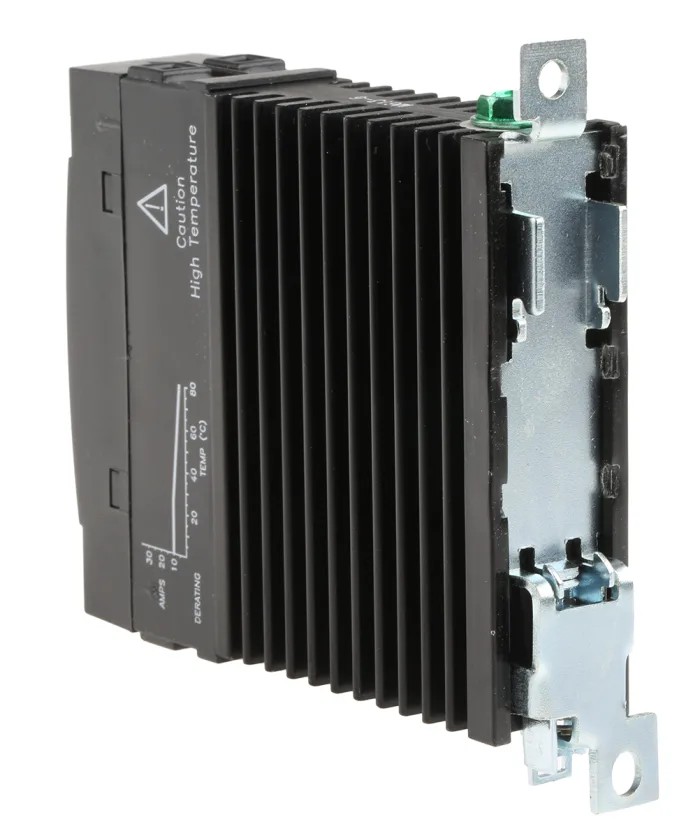

The relay integrates a built-in anodised aluminium heat sink that provides efficient thermal management and enhances durability, especially in high usage scenarios. With a compact size of 81.9mm length, 22.5mm width, and 99mm height, it optimizes panel space when mounted on DIN rails. Its wide operating temperature span from -40°C to 80°C makes it suitable for harsh industrial settings.

This solid state relay operates with a zero cross switching function, which reduces electrical noise and prolongs the life of the connected equipment. The green LED input status indicator is a useful diagnostic feature for maintenance and troubleshooting. The device includes box clamp terminal types and holds an IP20 ingress protection rating, ensuring protection against solid foreign objects.

The solid state SCR output provides silent operation without mechanical moving parts, resulting in faster response times and extended service life compared to mechanical relays. Typical applications include automated robotics, medical devices, HVAC systems, manufacturing equipment, and other industrial control systems requiring precise and reliable relay operation.

Equipped with a robust anodised aluminium heat sink for effective temperature management. Compact DIN rail mount design for easy installation and space conservation. Wide operating temperature range from -40°C to 80°C for use in harsh conditions.

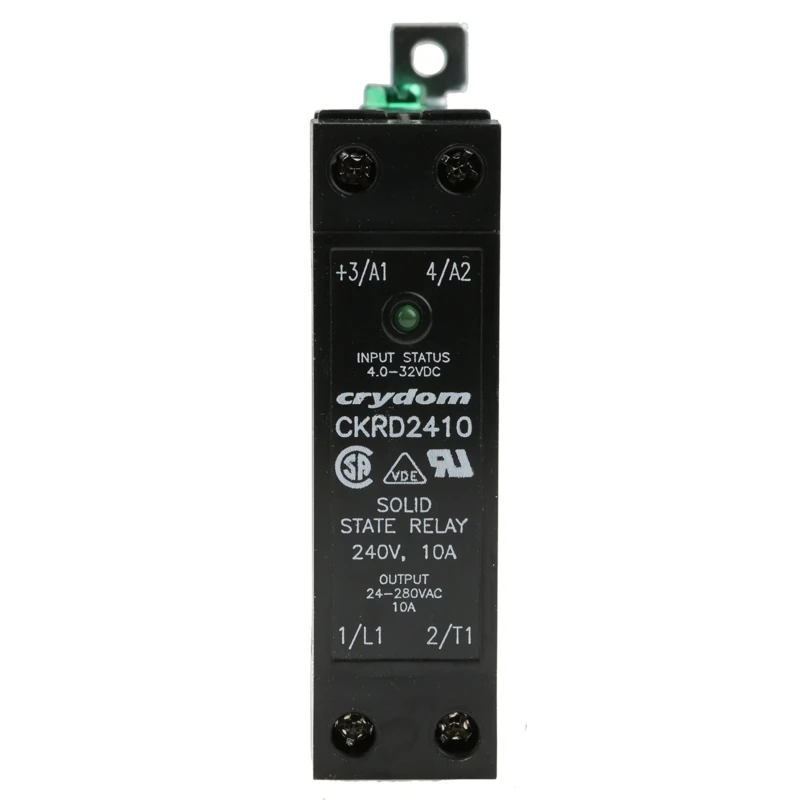

Zero cross switching function to minimize electrical noise and enhance equipment longevity. Green LED indicator for straightforward monitoring of input voltage status. Box clamp terminal type and IP20 protection ensure secure and safe connectivity.

Solid state SCR output type for fast switching without mechanical wear.

Crydom products are widely trusted in industrial and laboratory environments for high reliability and performance. Explore the broad range of Solid State Relays and related components on EnvMart to find the right fit for your automation and control needs.
