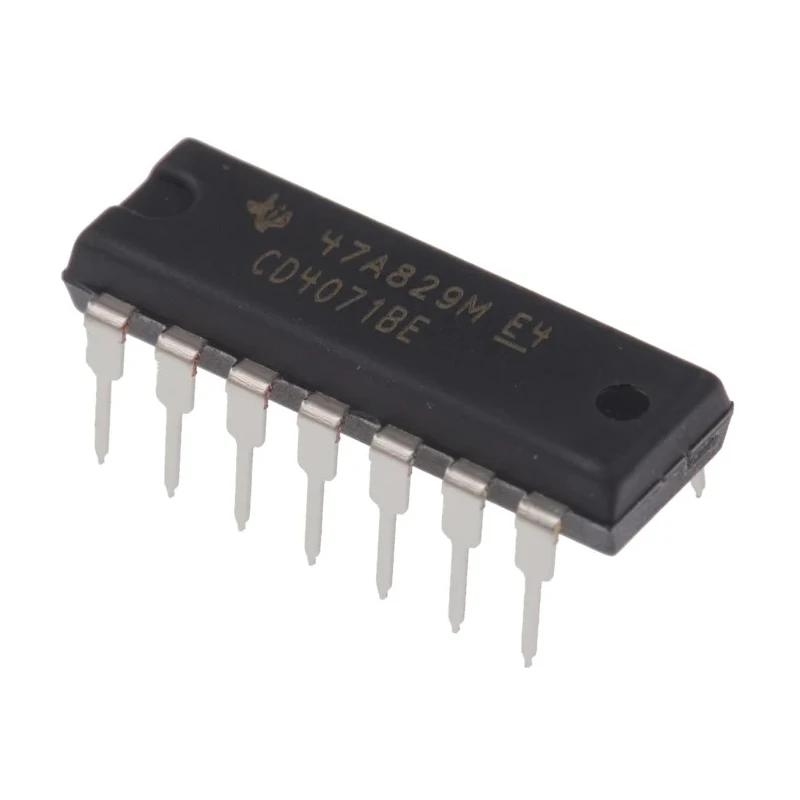

Texas Instruments 4 2-Input OR Logic Gate, CMOS 4000 Series, 14-Pin PDIP CD4071BE

Texas Instruments CD4071BE is a 4 2-input OR logic gate IC from the CMOS 4000 logic family, packaged in a 14-pin PDIP (Plastic Dual In-line Package) suitable for through hole mounting. It operates over a wide supply voltage range from 3V to 18V, making it compatible with diverse voltage standards in electronic circuit designs.

The device contains four independent OR gates, each with two inputs, designed for logic function implementation in industrial, automotive electronics, and laboratory equipment applications. The CMOS input type ensures low power consumption and high noise immunity.

With a maximum propagation delay time of 90 nanoseconds, this IC provides fast switching performance in digital systems. Its operating temperature range of -55°C to 125°C enables reliable function in harsh environmental conditions.

The package’s dimensions are approximately 19.3mm in length and 4.57mm in height, facilitating easy mounting on printed circuit boards. The maximum output currents are -4.2 mA for high level and 4.2 mA for low level signaling, supporting typical digital interface requirements.

This 4000 series logic gate is widely used in electronic components, power connectors, semiconductor logic IC applications, and other projects requiring OR logic functionality. It is ideal for integration in embedded systems, industrial automation, and prototype developments.

Contains 4 independent 2-input OR gates with CMOS technology. Supports a wide voltage range from 3 to 18 volts for versatile applications. Maximum propagation delay of 90 nanoseconds ensures timely logic processing. Wide operating temperature range from -55°C to 125°C for industrial use.

14-pin PDIP package suitable for through hole PCB mounting. Logic family: 4000 series CMOS for low power consumption. Maximum output currents: -4.2 mA high level, 4.2 mA low level. Non-Schmitt trigger input type for standard logic behavior.
