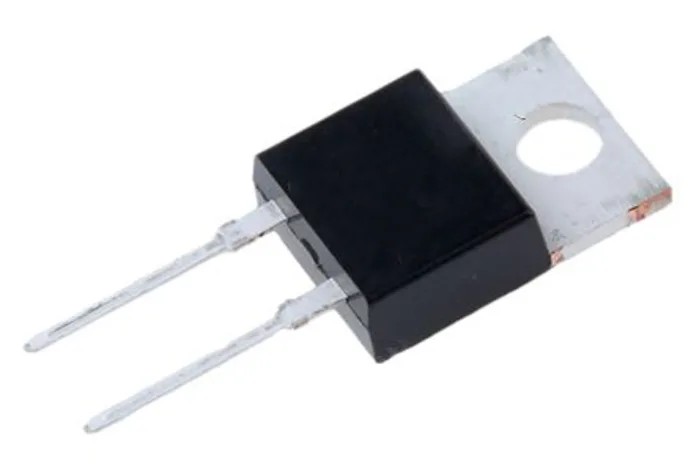

IXYS Switching Diode 1200V 10A TO-220 Package Through Hole Single Rectifier DHG10I1200PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.66mm |
| Length | 10.66mm |
| Model | DHG10I1200PA |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 3.56V |
| Peak Reverse Recovery Time trr | 75ns |
| Wolfspeed 1200 V 10 A Diode Schottky 2-Pin TO-220 C4D02120ABrand | Wolfspeed |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
Key Features
- Suitable for high voltage rectification and switching applications.
- Single diode configuration provides efficient one-way current flow.
- TO-220 package and through hole mounting for easy PCB integration.
- Supports forward current up to 10A and 1200V reverse repetitive voltage.
- Fast recovery time of 75ns for high-speed switching circuits.
- Maximum forward voltage drop of 3.56V and peak non-repetitive surge current of 70A.
- Wide operating temperature range from -55°C to 150°C.
Product Description
The IXYS DHG10I1200PA is a high voltage switching diode featuring a single rectifier configuration. Designed for professional electronic, power supply, and industrial systems, it offers robust electrical characteristics for demanding environments. With a rated maximum continuous forward current of 10A and peak reverse repetitive voltage up to 1200V, this diode is ideal for rectification, power management, and switching circuits where reliability and performance are critical.
This component utilizes a TO-220 package type, making it suitable for through hole mounting in a variety of printed circuit board layouts. Its single diode configuration ensures efficient unidirectional current control, and a fast peak reverse recovery time of 75ns allows for use in high-speed switching applications. The diode's maximum forward voltage drop is 3.56V, keeping conduction losses low.
Additional performance parameters include a peak non-repetitive forward surge current of 70A, a peak reverse current of 15μA, and a wide operating temperature range from -55°C up to 150°C. Its compact dimensions - length 10.66mm, width 4.82mm, height 9.66mm - support integration into electronic devices with space constraints.
Key features include robust mechanical and thermal properties, non-automotive standard design for general industrial and laboratory equipment, and compliance with standard discrete semiconductor application requirements. The diode is widely used in rectifiers, power management, motor control, switching power supplies, and industrial electronics.
Suitable for high voltage rectification and switching applications. Single diode configuration provides efficient one-way current flow. TO-220 package and through hole mounting for easy PCB integration. Supports forward current up to 10A and 1200V reverse repetitive voltage.
Fast recovery time of 75ns for high-speed switching circuits. Maximum forward voltage drop of 3.56V and peak non-repetitive surge current of 70A. Wide operating temperature range from -55°C to 150°C. Industrial, laboratory, and commercial uses include power circuit switching, rectification, voltage conversion, and protection.
Explore more in the Schottky Diode category or browse other IXYS models available from EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 10A.
This model supports a peak reverse repetitive voltage of up to 1200V.
The diode is housed in a TO-220 package type, suitable for through hole mounting.
It features a fast peak reverse recovery time of 75ns, making it suitable for high-speed switching applications.
The maximum forward voltage drop is 3.56V, which helps to minimize conduction losses.
This diode operates within a wide temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current is rated at 70A.
The dimensions of this model are 10.66mm in length, 4.82mm in width, and 9.66mm in height.
It has a single diode configuration, providing efficient unidirectional current control.
This diode is suitable for applications such as rectification, power management, motor control, and switching power supplies.
The TO-220 package of this diode has 2 pins.
The peak reverse current is rated at 15μA.
