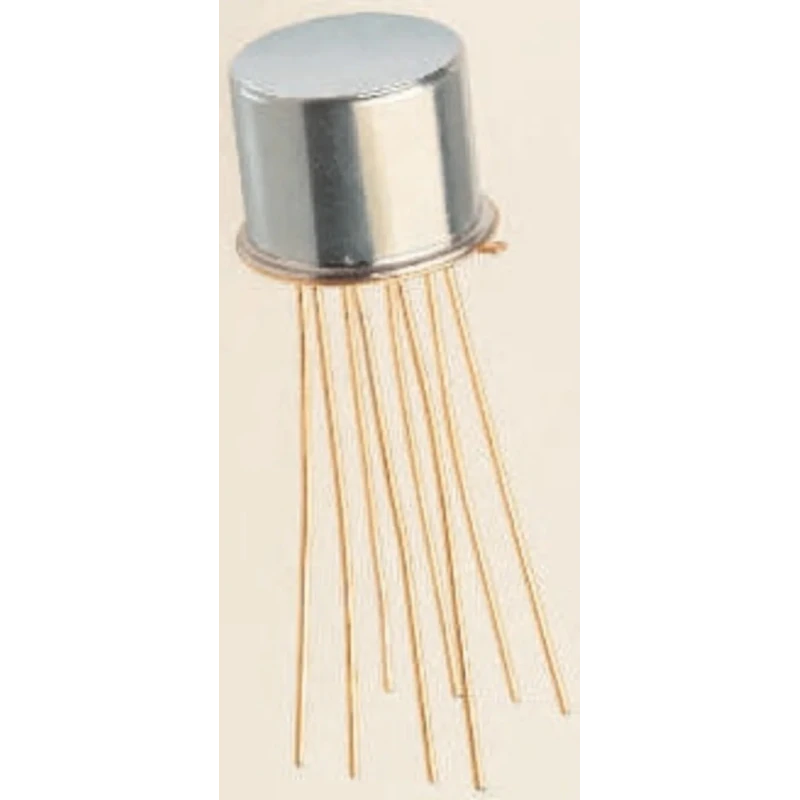

Teledyne TO-5 Through Hole RF Relay, DPDT, Gold Plated Contact, 28V Coil, 1A, 450mW, 712-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 6.99mm |
| Length | 9.4mm |
| Model | 712-5 |
| Mount Type | Through Hole |
| Contact Material | Gold Plated |
| Series | 712 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 50Ω |
| Coil Power | 450mW |
| Contact Current | 1A |
| Inter-contact Capacitance | 0.4 pF |
Key Features
- Hermetically sealed TO-5 relay with double pole double throw (DPDT) contact configuration.
- Operates with a 28V coil and offers low coil power dissipation at 450mW.
- Gold plated contacts ensure high conductivity and minimal contact resistance at 150mΩ.
- Handles 1A contact current for reliable low level and RF switching up to 1GHz.
- Ultra-miniature form factor, height of 6.99mm and length of 9.4mm for close PCB spacing.
- Excellent resistance to shock and vibration, suitable for harsh environments.
- Low insertion loss and inter-contact capacitance of 0.4pF, ideal for UHF frequencies.
- Compliant with RoHS standards for industrial and laboratory applications.
Product Description
Teledyne 712-5 is an industrial-grade TO-5 Through Hole RF Relay designed for reliable, low-level and RF switching.
Gold plated contacts provide high conductivity and minimize contact resistance to 150mΩ, ensuring exceptionally low insertion loss. The relay’s robust uni-frame design offers superior magnetic efficiency and mechanical rigidity, which translates to high resistance against shock and vibration. Its hermetically sealed construction further enhances durability, allowing operation in demanding industrial and laboratory environments.
With a 1A contact current capability and coil resistance of 50Ω, the Teledyne 712-5 provides versatile operation from dry circuit switching to transmit/receive RF switching up to 1GHz. Low coil power dissipation (450mW) makes this component suitable for energy-sensitive applications. Its compact footprint, with a height of only 6.99mm and length of 9.4mm, streamlines close PCB spacing and floor space optimization.
This relay features minimal inter-contact capacitance (0.4pF) and low contact circuit losses, supporting high-frequency applications including radio transceivers and test equipment. The mounting style is through hole, simplifying integration into standard circuit boards.
Applications include industrial automation, laboratory equipment, radio communication circuits, RF signal conditioning, and any environments requiring compact, high-reliability relay switching.
Hermetically sealed ultra-miniature TO-5 relay for precision RF switching. Double pole double throw (DPDT) configuration and robust gold plated contacts. Wide operating temperature range from -55°C to 85°C enables resilience in extreme conditions.
Low coil power dissipation, compact design for densely populated circuit boards. RoHS compliant for safe deployment in industrial and laboratory systems. Discover more Teledyne relays and RF switching solutions on EnvMart for your industrial, laboratory, and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
It can handle a maximum contact current of 1A, making it suitable for low-level and RF switching applications.
The relay operates with a 28V coil and has a low coil power dissipation of 450mW, which is beneficial for energy-sensitive applications.
It has a minimal inter-contact capacitance of 0.4pF, which supports high-frequency applications effectively.
The relay has a height of 6.99mm and a length of 9.4mm, making it suitable for close PCB spacing.
The coil resistance is 50Ω, which is a critical parameter for its operation and compatibility with control circuits.
This model operates within a temperature range of -55°C to 85°C, allowing it to function in extreme conditions.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements for industrial and laboratory applications.
It utilizes a through hole mounting style, which simplifies integration into standard circuit boards.
The contacts are made of gold plated material, which provides high conductivity and minimizes contact resistance to 150mΩ.
It is suitable for applications in industrial automation, laboratory equipment, radio communication circuits, and RF signal conditioning.
The relay features exceptionally low insertion loss, which is a critical factor for maintaining signal integrity in RF applications.
