Global Laser Laser Module 670 nm 1 mW Continuous Wave, TTL Control, Ellipse Pattern, -12V to -8V Beta CW 1068-42-000

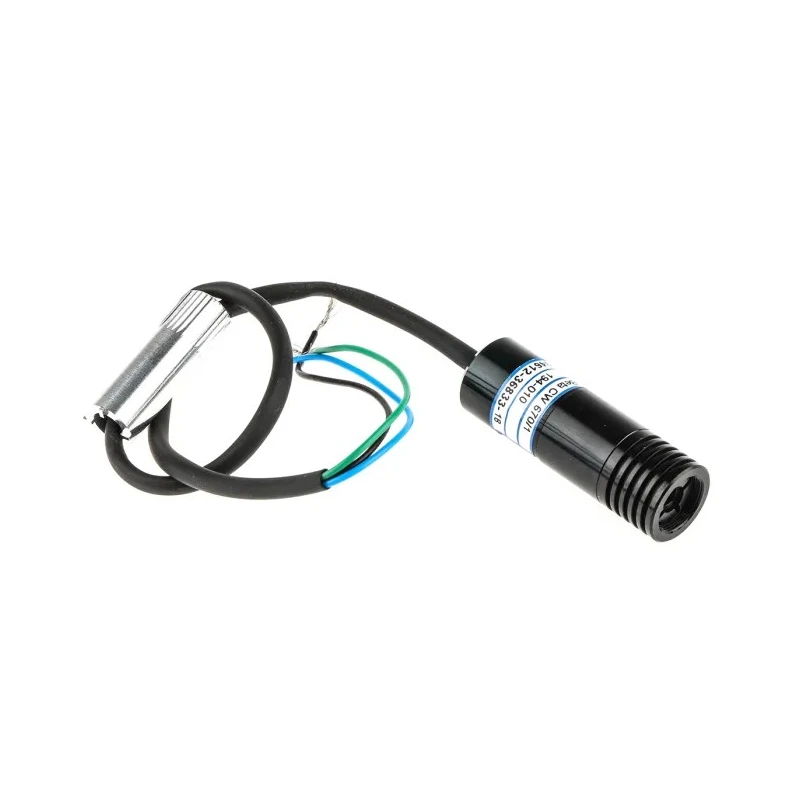

The Global Laser 1068-42-000 is a high-quality laser module designed for demanding optoelectronic and industrial applications. Combining a precision laser diode, integrated driver circuit, and a collimating adjustable lens, this module delivers a reliable and highly visible red beam at a wavelength of 670 nm with 1 mW output power.

Belonging to the Beta CW series, it features continuous wave operation and a distinctive ellipse emission pattern, making it exceptionally well suited for alignment, position sensing, targeting, and profile vision tasks. The TTL control interface facilitates easy integration into automated industrial or laboratory setups, offering dependable switching and modulation capabilities.

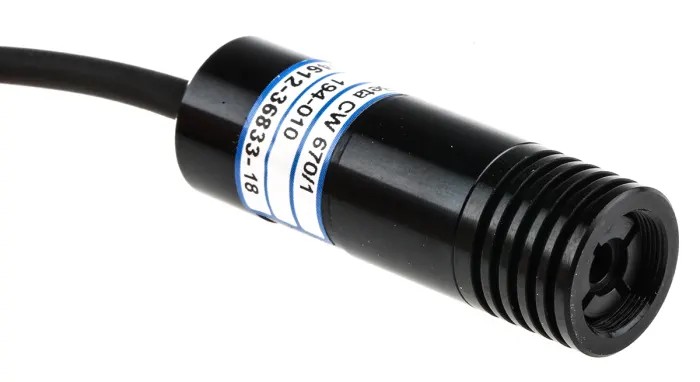

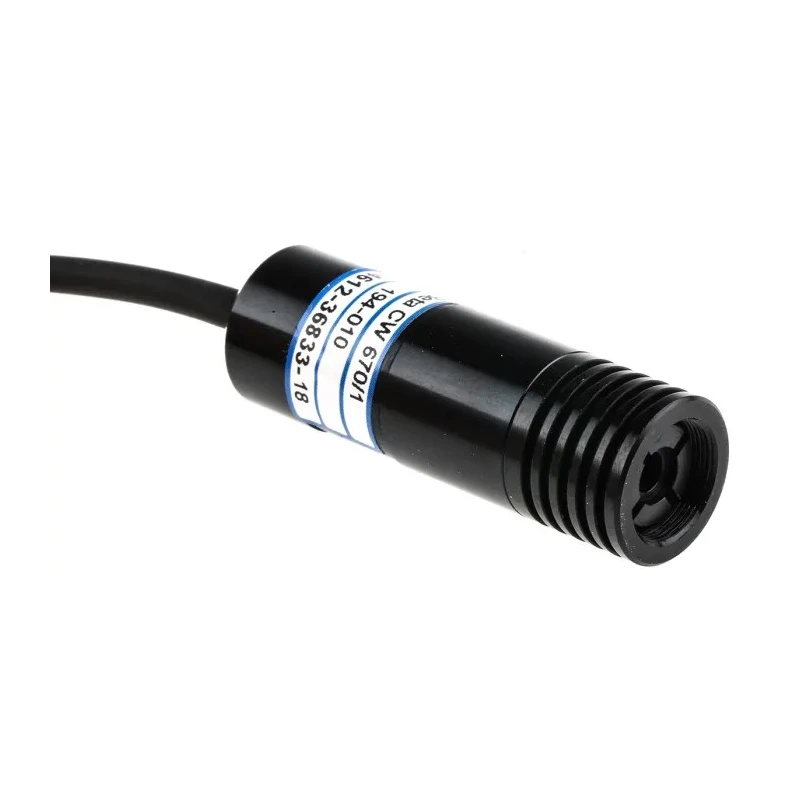

The module's brass body is powder-coated and electrically isolated, with robust construction for durability in both laboratory and field environments. The 15.25 mm diameter and 46 mm length allow streamlined installation into optical assemblies or machinery. Adjustable lens design enables users to focus the beam spot size precisely, optimizing performance for specific alignment or measurement needs. The module operates reliably within a temperature range of -10°C to 50°C and accepts a supply voltage between -12V and -8V DC.

Key technical specifications include a Laser Class 2 safety rating, optical output power of 1 mW, ellipse emission pattern, TTL control, and Beta CW series designation. The module does not conform to automotive standards but is ideal for a wide range of industrial, laboratory, and manufacturing environments requiring accurate laser-based alignment or detection.

Typical applications include industrial alignment, component positioning, vision profiling, and machine automation setups. Originating from the United Kingdom, the Global Laser module offers proven reliability and precision for optoelectronic integrators and automation professionals.

Laser diode module for precision optoelectronic applications. Outputs a red, highly collimated beam at 670 nm wavelength. 1 mW optical power suitable for alignment and positioning tasks. TTL control allows integration into automated detection systems.

Operates on a supply voltage from -12V to -8V DC. Beta CW series features adjustable lens for beam size focusing. Robust, electrically isolated brass body with 15.25 mm diameter. Ellipse emission pattern provides enhanced profile vision.

Wide temperature range from -10°C to 50°C for industrial reliability. Country of origin: United Kingdom. Browse more Laser Modules and optoelectronic solutions from Global Laser and explore EnvMart's full range for industrial and laboratory automation.
