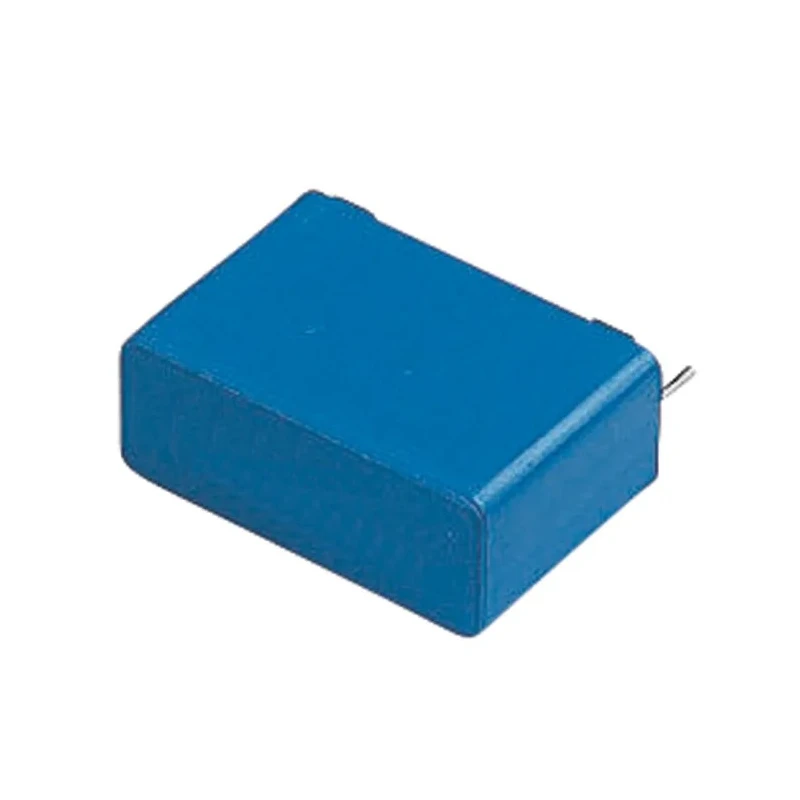

TDK Film Capacitor 22 nF 200V AC 630V DC Through Hole 2 Pins B32521N8223J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 11mm |
| Length | 13mm |
| Model | B32521N8223J000 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | B32521 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 22nF |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 200V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Capacitance of 22 nF ensures precise electronic performance.
- Rated for 200V AC and 630V DC voltage for reliable operation.
- Through hole mounting features a 10 mm lead pitch for easy PCB installation.
- Compliance with automotive AEC-Q200 Rev D and UL RoHS standards.
- Operates safely up to a maximum temperature of 125°C.
- Constructed with stacked-film and wound technology for durability.
- Plastic case with epoxy resin sealing offers UL 94 V-0 flame retardant rating.
- Pin diameter measures 0.6 mm with 2 pins for secure connections.
Product Description
TDK B32521N8223J000 Film Capacitor is a high-quality electronic component designed for robust performance in general purpose blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression applications. It supports 22 nF capacitance and is rated for 200 V AC and 630 V DC, making it suitable for both industrial and automotive environments.
This capacitor utilizes advanced stacked-film and wound technology enclosed within a plastic case with epoxy resin sealing, corresponding to UL 94 V-0 standards, which ensures high pulse strength and excellent contact reliability. The rated maximum operating temperature is 125°C, enabling stable operation under demanding conditions.
Mounting is through hole with a 10 mm lead pitch and 0.6 mm lead diameter, providing straightforward PCB assembly with secure 2-pin connections. Its compact dimensions - 13 mm length, 11 mm height, and 5 mm width - allow integration into space-constrained equipment.
Certified to automotive standard AEC-Q200 Rev D, and compliant with UL and RoHS directives, this capacitor is a dependable choice for automotive electronics, industrial control systems, and other electronic devices requiring high reliability and environmental compliance.
Capacitance: 22 nF for precise electronic applications. Rated AC voltage of 200 V and DC voltage of 630 V. Robust through hole mounting with 10 mm lead pitch and 2 pins. High endurance with a maximum temperature rating of 125°C.
Certified to automotive and safety standards including AEC-Q200 Rev D, UL, and RoHS. Constructed with flame-retardant plastic casing and epoxy resin sealing. Ideal for filtering, coupling, blocking, decoupling, bypassing, and RFI mitigation.
This film capacitor is applicable in industrial electronics, automotive electrical systems, manufacturing control systems, and other environments demanding stress-resistant, reliable capacitors.
Explore EnvMart's comprehensive selection of electronic components including Film Capacitors for various applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 22 nF, ensuring precise electronic performance for various applications.
It is rated for 200V AC and 630V DC, making it suitable for a range of electronic applications.
The maximum operating temperature is 125°C, allowing for stable performance under demanding conditions.
This capacitor features through hole mounting with a lead pitch of 10 mm and a lead diameter of 0.6 mm.
It has 2 pins for secure connections during installation.
The dimensions are 13 mm in length, 11 mm in height, and 5 mm in width, making it compact for various applications.
Yes, it is certified to automotive standard AEC-Q200 Rev D and complies with UL and RoHS directives.
It is constructed with stacked-film and wound technology, enclosed in a plastic case with epoxy resin sealing.
This model is suitable for general purpose blocking, coupling, decoupling, bypassing, and RFI suppression applications.
The series designation for this model is B32521, which is part of TDK's film capacitor line.
It has a UL 94 V-0 flame retardant rating, ensuring safety in high-temperature environments.
The country of origin for this capacitor is India.
