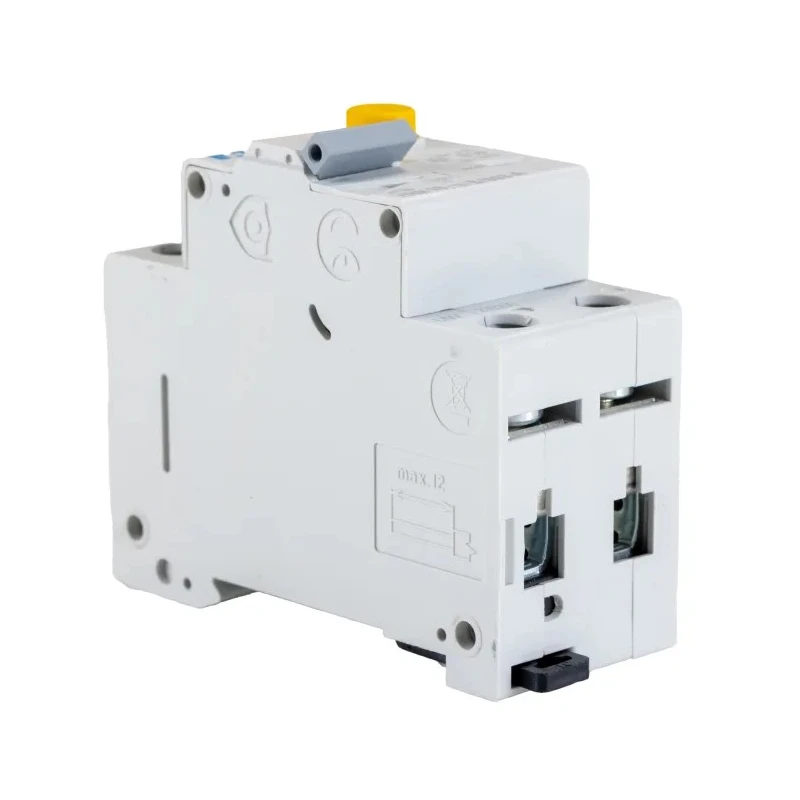

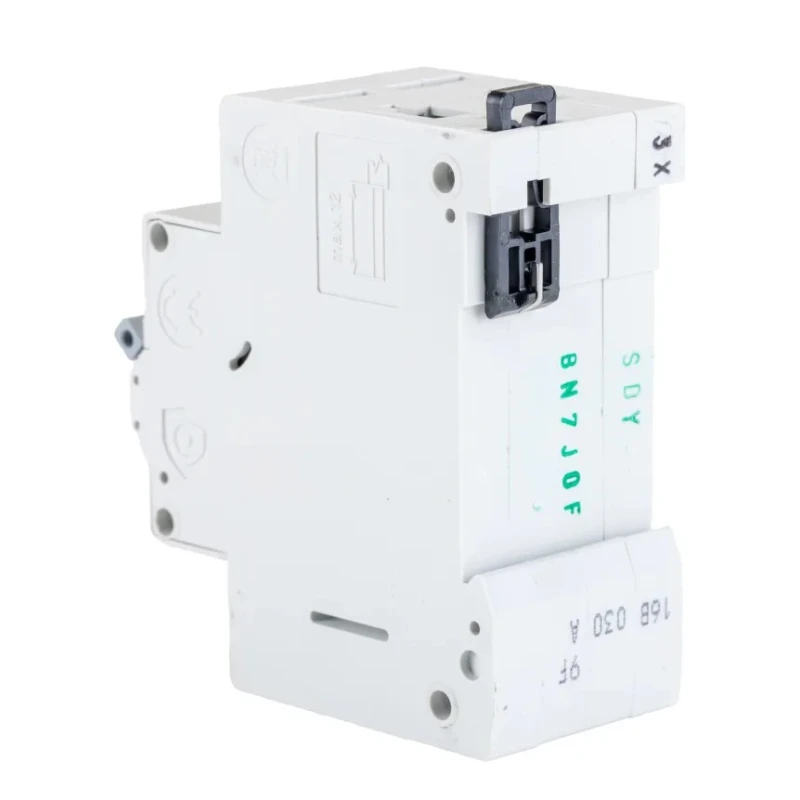

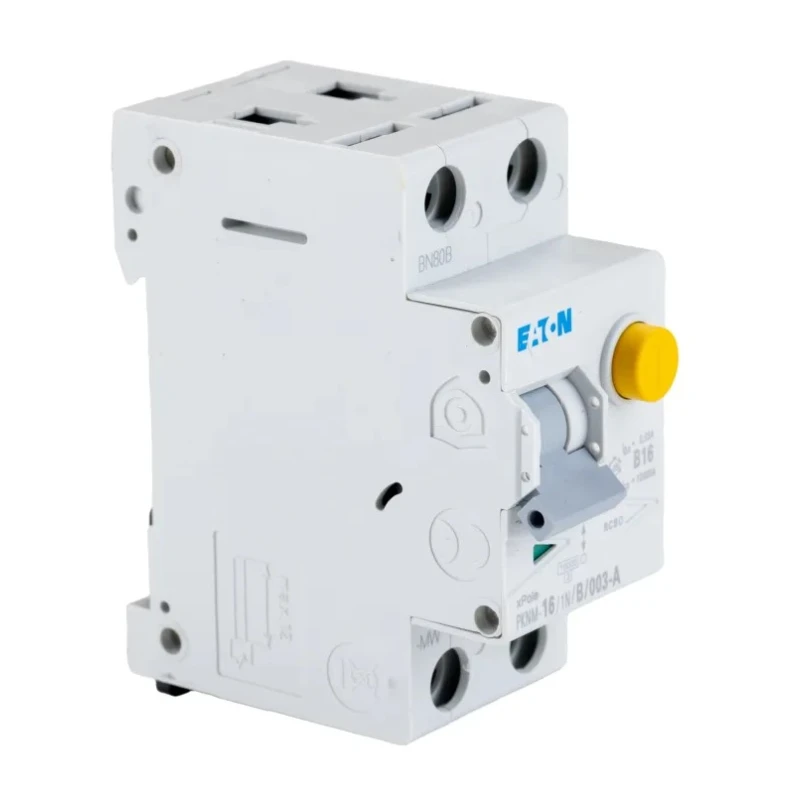

Eaton Residual Current Device PKNM Series 16A, 2-Pole, 30 mA Trip Sensitivity, Type B, 10 kA 236205 PKNM-16/1N/B/003-A-MW

Eaton 236205 PKNM-16/1N/B/003-A-MW Residual Current Device (RCD) is engineered to provide efficient earth leakage protection for AC electrical circuits with a current rating of 16A and 2 poles. It features a 30 mA trip sensitivity and Type B tripping characteristics, suitable for sensitive applications including variable speed three-phase motors such as compressors, water pumps, and fans. The device operates at a rated AC voltage of 230V with a breaking capacity of 10 kA, ensuring safety against high fault currents.

The PKNM series RCD includes IP20-rated terminals to guard against finger contact and larger objects beyond 12mm, enhancing user safety and preventing accidental contact. Its compact dimensions (70mm width, 80mm height, 70.5mm depth) are designed to maximize space efficiency within distribution boards. The unit mounts easily via standard DIN rail mounting and features a toggle switch reset actuator for straightforward manual operation.

Safety features include an electromagnetic tripping mechanism for rapid fault response, screw-type terminals for secure electrical connections, and a contact position indicator for easy status verification. The device is insulated to ensure safe handling and installation and is built to resist UV-induced aging, making it suitable for outdoor installations. The Eaton PKNM RCD complies with CE standards, demonstrating adherence to stringent quality and safety requirements.

Breaking capacity of 10 kA to protect against current surges. 30 mA sensitivity for protective earth leakage response. Type B tripping characteristic suitable for AC and pulsating DC residual currents. Compact form factor optimized for distribution board space.

IP20-rated terminals for contact protection. DIN rail mounting for quick and secure installation. Toggle switch reset actuator for ease of use. Electromagnetic tripping mechanism for instantaneous response. Contact position indicator for status monitoring.

UV-resistant for outdoor durability.

This Residual Current Device is ideal for industrial, residential, and commercial electrical safety systems, helping to minimize electric shock risks and reduce fire hazards by quickly disconnecting faulty circuits. With robust build quality and advanced trip characteristics, it supports reliable operation in variable frequency drive applications and sensitive electrical setups.
