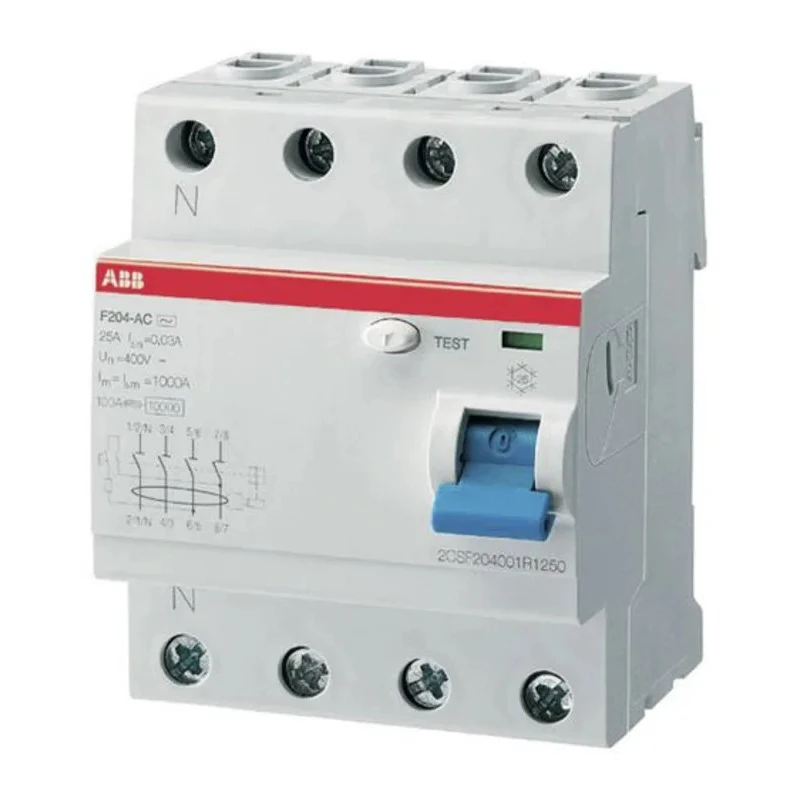

ABB F200 Series Residual Current Device 25A 4-Pole 30mA Type AC 1kA 400V AC 2CSF204023R1250

Free Delivery in India | Lowest Global Shipping Charges

ABB F200 Series Residual Current Device 25A 4-Pole 30mA Type AC 1kA 400V AC 2CSF204023R1250



Category Residual Current Device Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	85mm
Model	2CSF204023R1250
Depth	69mm
Width	70mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	4
Rated AC Voltage	400V ac
Tripping Characteristics	Type AC
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC

Key Features

Type AC tripping characteristic offers protection against sinusoidal alternating fault currents.
Rated sensitivity of 30 mA ensures improved user safety.
Instantaneous electromagnetic tripping mechanism allows quick fault disconnection.
Designed for DIN rail mounting enabling easy installation.
Screw terminals provide secure and reliable electrical connections.
Conforms to IEC/EN 61008-1 and IEC/EN 61008-2-1 standards for dependability and safety.
Compact dimensions of 85mm height, 70mm width, and 69mm depth fit standard electrical enclosures.
Breaking capacity rated at 1kA for robust electrical fault handling.

Product Description

ABB 2CSF204023R1250 F200 Series Residual Current Device (RCD) is designed for commercial and residential electrical protection applications. Rated for 25A current and 400V AC voltage, it provides sensitive earth leakage detection with a 30mA trip threshold, ensuring user and equipment safety by disconnecting fault currents rapidly.

The 4-pole design allows versatile use in three-phase power systems, and the device is easily mounted on DIN rails, facilitating swift installation in electrical panels. Its electromagnetic instantaneous tripping mechanism ensures immediate fault response to mitigate risks of electrical shock or fire.

This RCD features screw-type terminals that guarantee secure connections, complying fully with IEC/EN 61008-1 and IEC/EN 61008-2-1 standards. Its compact dimensions of 85mm in height, 70mm width, and 69mm depth make it suitable for a variety of electrical installations while maintaining robust breaking capacity of 1 kiloampere.

Operating efficiently across temperatures from -25°C to +55°C, the device is built for reliable safety performance in diverse environments. Manufactured in Italy, it reflects ABB's commitment to quality and safety in electrical protection equipment.

Type AC circuit breaker protects against sinusoidal alternating fault currents. 4-pole configuration for comprehensive three-phase system protection. DIN rail mountable for convenient electrical panel installation. Trip sensitivity of 30mA enhances user protection.

Instantaneous electromagnetic trip mechanism enables fast fault isolation. Screw terminals ensure reliable electrical connections. Complies with IEC/EN 61008 standards. Compact size fits standard enclosures. Rated breaking capacity of 1kA.

Operates within -25°C to +55°C ambient temperature range.

This Residual Current Device is ideal for meeting safety regulations across commercial and residential electrical systems, providing dependable earth leakage protection to safeguard installations and personnel. Explore similar circuit breaker solutions and other ABB electrical protection devices on EnvMart.
