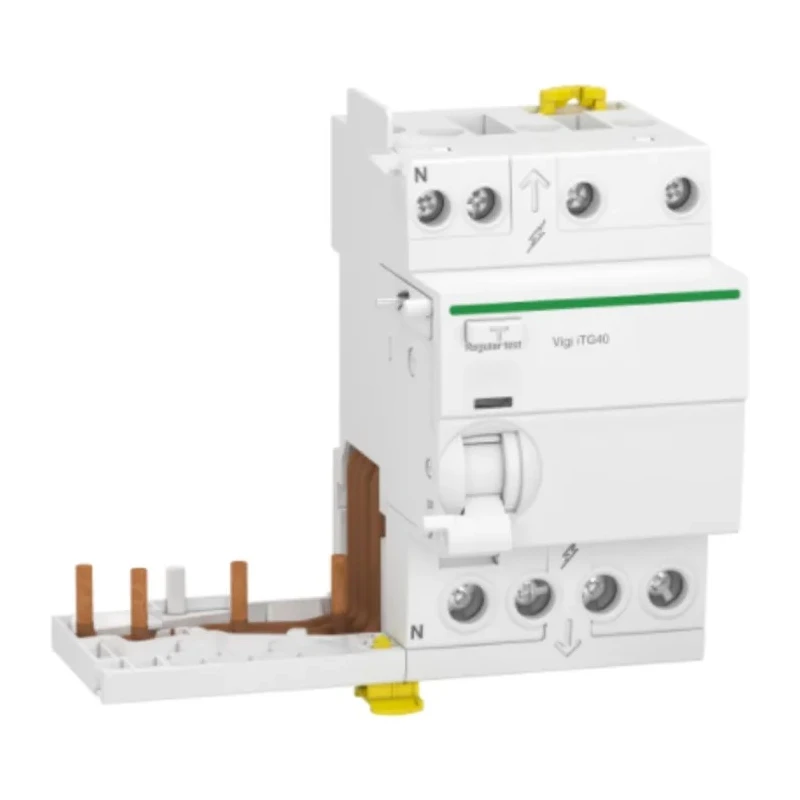

Schneider Electric Residual Current Device, 40A, 3-Pole, 300 mA, Type A-SI, Instantaneous Break, DIN Rail Mount Acti9

Schneider Electric Acti9 residual current device model Acti9 provides a 40 Amp current rating with 3 poles, equipped with a 300 mA trip sensitivity to protect electrical installations from earth leakage faults effectively. This Type A-SI device is engineered for instantaneous protection, ensuring safety for residential, commercial, and industrial electrical systems.

The device mounts effortlessly on a standard DIN rail, facilitating easy integration into electrical distribution boards. Its compact form factor with dimensions of 91mm height, 108mm width, and 74mm depth makes it suitable for tight panel spaces while maintaining full functionality.

Equipped with tunnel type terminals, it supports reliable and secure electrical connections. The lever-type reset actuator allows for easy manual reset of the device after a trip event, ensuring minimal downtime. The device complies with EN/IEC 61009-2-1, NF, and CE standards, reflecting its quality and compliance with international safety requirements.

This Schneider Electric Residual Current Device features a 40A breaking capacity and instantaneous break time, providing robust and immediate disconnection during fault conditions. The protective grading includes IP20 and IP40, suitable for typical electrical environments, and the device is designed to handle pollution degree 3 conditions.

Manufactured in Spain, this Residual Current Device supports applications in industrial automation, electrical distribution, and facilities management, making it a reliable choice for preventing electrical hazards caused by leakage currents.

Provides effective earth leakage protection with Type A-SI tripping characteristics. Mounts easily on DIN Rail for flexible installation. Compact size with dimensions 91mm height, 108mm width, and 74mm depth. Features a lever reset actuator for quick and reliable device operation.

Complies with EN/IEC 61009-2-1, NF, and CE standards ensuring safety and reliability. Equipped with tunnel type terminals providing secure electrical connections. Breaking capacity rated at 40A with instantaneous break time.

Designed and manufactured in Spain with IP20 and IP40 degree of protection. Explore more Schneider Electric electrical protection devices on EnvMart for superior safety and compliance in your electrical installations.
