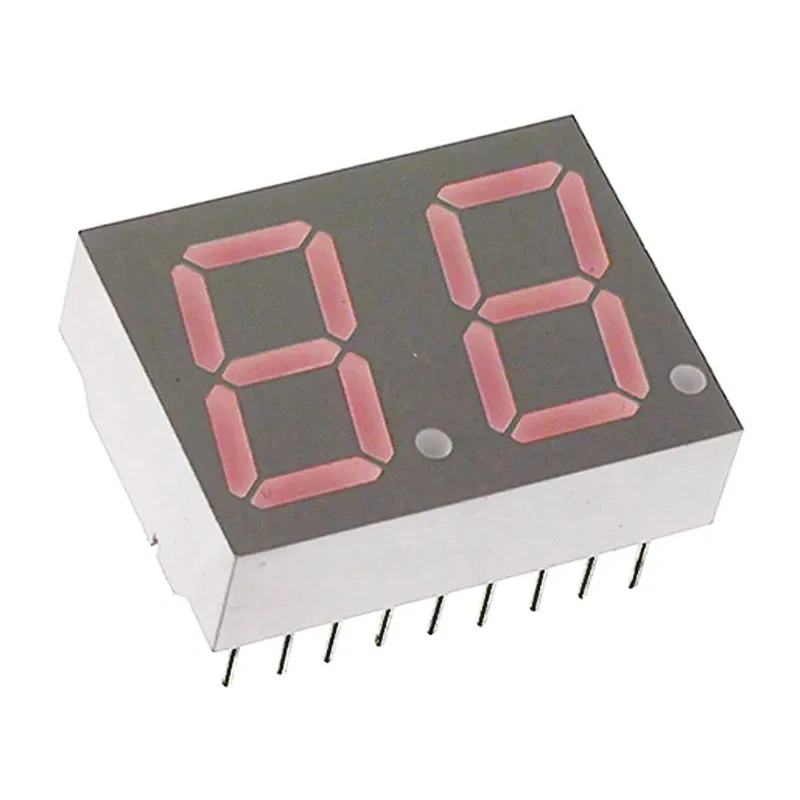

Broadcom 2-Digit 7 Segment Red LED Display Cathode Through Hole 7.8mm x 14.2mm HDSP-523E
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-523E |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number Of Segments | 14 |
| External Width | 25mm |
| External Depth | 18.6mm |
| External Height | 8mm |
| Luminous Intensity | 7.69mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 628nm |
| Colour of Face | Grey |
| Forward Voltage | 25V |
| Forward Current | 90mA |
| Number of Characters | 2 |
| Character Width | 7.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display has 14 segments in total providing clear numeric representation.
- It uses through-hole mounting technology for easy PCB installation.
- The character height is 14.2mm and width is 7.8mm for enhanced visibility.
- Operates reliably between temperatures of -35°C to 85°C.
- The forward voltage is 25V at a forward current of 90mA ensuring efficient power consumption.
- The external dimensions measure 25mm width, 8mm height, and 18.6mm depth.
- The LED colour is bright red with a dominant wavelength of 628nm and grey face colour.
Product Description
Broadcom HDSP-523E is a 2-digit 7 segment LED display designed for industrial and electronic applications requiring precise numeric display. Featuring cathode common connection and through-hole mount type, the display ensures sturdy and reliable placement on printed circuit boards.
This display offers a character height of 14.2mm and a width of 7.8mm, providing good legibility in various lighting conditions. The LED emits a red light with a luminous intensity of 7.69mcd and a dominant wavelength of 628nm, making it suitable for clear numeric indication.
Rated to operate within a wide temperature range of -35°C to 85°C, the HDSP-523E performs reliably in industrial, laboratory, manufacturing, and commercial electronics environments. It requires a forward voltage of 25V and a forward current of 90mA to operate efficiently while maintaining brightness.
The decimal point orientation is on the right side, which aids in applications needing precise decimal numeric representation. External dimensions of 25mm width, 8mm height, and 18.6mm depth allow compact integration in device panels and instrument front-ends.
Compliance with RoHS standards guarantees adherence to environmental and safety regulations. The grey face color complements various design schemes while maintaining visibility. The display has 14 segments allowing full numeric display capabilities.
Through-hole mounting facilitates easier assembly and durability. Wide temperature tolerance enables use in harsh environments. Red LED display provides clear visual output in electronic devices. Compact size fits in space-constrained panel applications.
This LED display module is ideal for electronics manufacturing, instrument panels, HVAC systems, industrial control panels, and other applications where precise numeric display is essential. Explore more electronic components and LED Display modules in the EnvMart catalog for enhanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 14.2mm, providing good legibility in various lighting conditions.
It operates reliably within a temperature range of -35°C to 85°C, making it suitable for various environments.
The display requires a forward voltage of 25V and a forward current of 90mA to operate efficiently.
This model features 14 segments, allowing for full numeric display capabilities.
The external dimensions are 25mm in width, 8mm in height, and 18.6mm in depth.
It uses through-hole mounting technology for easy installation on printed circuit boards.
The LED emits a bright red light with a dominant wavelength of 628nm.
Yes, it complies with RoHS standards, ensuring adherence to environmental and safety regulations.
The luminous intensity of this display is 7.69mcd, providing clear visibility.
The decimal point orientation is on the right side, which aids in precise decimal numeric representation.
This LED display is suitable for electronics manufacturing, instrument panels, HVAC systems, and industrial control panels.
The face color of this display is grey, which complements various design schemes while maintaining visibility.
