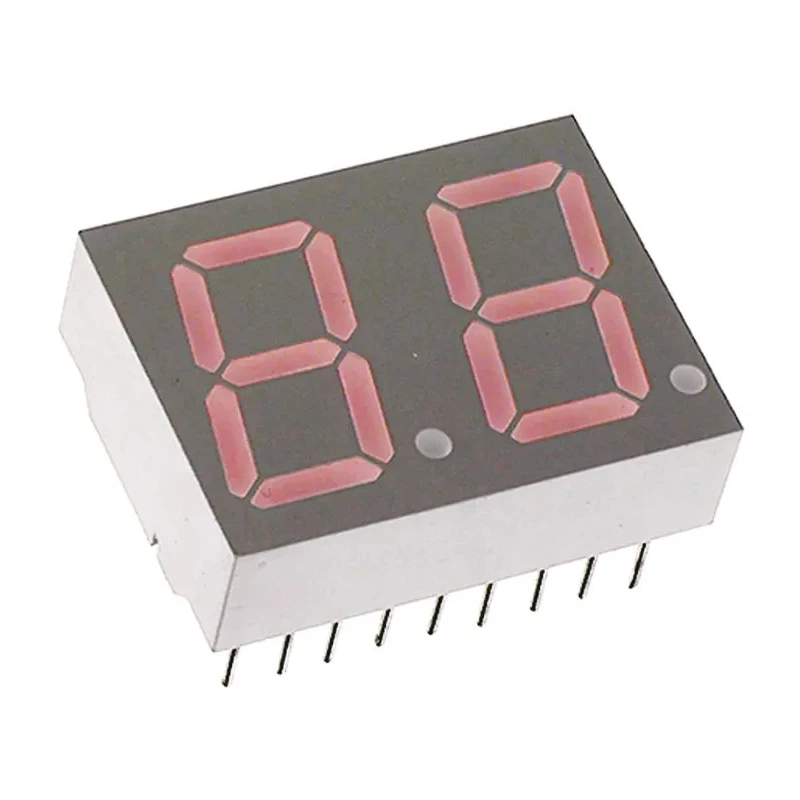

Broadcom 2 Character 7 Segment Red LED Display Anode 7.69mcd 14.2mm HDSP-521E

Broadcom HDSP-521E is a 2-character 7-segment LED display engineered for clear and precise numeric output in electronic circuits and devices. It features red LED segments with a luminous intensity of 7.69mcd, allowing for excellent visibility even in moderate ambient lighting conditions. The display's character height is 14.2mm and width is 7.8mm, optimized for compact and precise readouts.

This LED display uses a common anode configuration and is built for through-hole mounting, facilitating straightforward PCB integration for electronic manufacturing and prototyping. It operates reliably across a wide temperature range from -35°C to 85°C, enabling stable performance in various industrial and environmental conditions.

The forward voltage required is 25V, with a forward current rating of 90mA, making it suitable for low power electronic applications. The decimal point is orientated to the right side, allowing numerical values with fractional readings.

The external dimensions of the device are 25mm wide by 8mm high, with a depth of 18.6mm, providing an optimal footprint for space-constrained electronic assemblies. The grey face color gives a professional and neutral appearance, easing readability.

Compliant with RoHS directive, the HDSP-521E adheres to environmental and safety standards, making it appropriate for use in industrial, laboratory, electronic device manufacturing, and educational applications. This versatile 7-segment display by Broadcom ensures efficiency, reliability, and ease of use for numeric display needs.

The display includes 2 characters with 14 segments each for detailed representation. It features a red LED color with a dominant wavelength of 628nm. The characters have a width of 7.8mm and height of 14.2mm for high visibility.

Designed for through-hole mounting with an anode common connection. Operational temperature ranges from -35°C to 85°C ensuring durability. Forward voltage is 25V with a forward current of 90mA. The face color of the display is grey and decimal point is placed on the right side.

Complies with RoHS standards for environmental safety. The display's external dimensions are 25mm width, 8mm height, and 18.6mm depth. Explore the extensive range of LED Displays in the EnvMart Electronics & Electricals category for your numeric display and indication needs.
