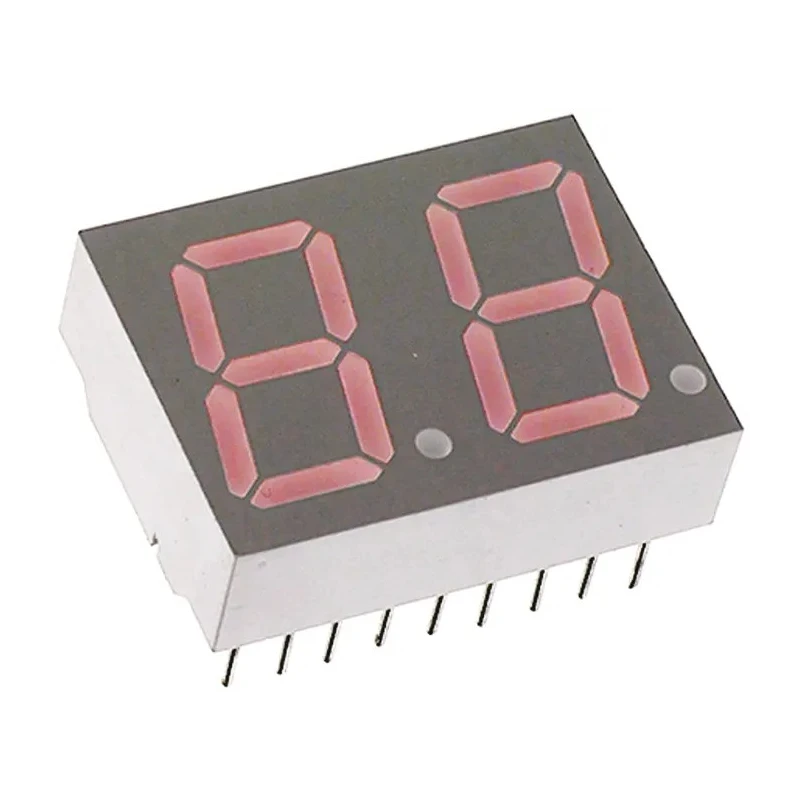

Broadcom 2 Character 7 Segment LED Display Red Anode Through Hole Mount HDSP-521E
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-521E |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number Of Segments | 14 |
| External Width | 25mm |
| External Depth | 18.6mm |
| External Height | 8mm |
| Luminous Intensity | 7.69mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 628nm |
| Colour of Face | Grey |
| Forward Voltage | 25V |
| Forward Current | 90mA |
| Number of Characters | 2 |
| Character Width | 7.8mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display features 14 segments with a character height of 14.2 mm and width of 7.8 mm.
- It has a luminous intensity of 7.69 mcd and a dominant wavelength of 628 nm for clear red illumination.
- Operating temperature range from -35°C to 85°C ensures suitability for diverse environments.
- The display has a forward voltage of 25 V and forward current of 90 mA for efficient operation.
- The decimal point is oriented on the right side for standard numeric displays.
- The external dimensions measure 25 mm width, 8 mm height, and 18.6 mm depth.
- The face color is grey with RoHS compliance for environmental safety.
Product Description
Broadcom HDSP-521E is a high-quality 2-character 7 segment LED display designed for electronic applications requiring clear numeric visual output. The display features a bright red LED with a luminous intensity of 7.69 mcd and a dominant wavelength of 628 nm, ensuring high visibility in various lighting conditions.
This through-hole mount component has an anode common connection and is manufactured to meet RoHS standards. Its character dimensions of 14.2 mm in height and 7.8 mm in width provide legible numeric representation, complemented by 14 segments to allow detailed numeric shapes.
The device operates reliably in temperatures ranging from -35°C to 85°C, suitable for industrial, laboratory, and consumer electronic equipment. With a forward voltage of 25 V and typical forward current of 90 mA, it is efficient and compatible with a variety of drive circuits.
The decimal point placement on the right side supports standard numerical displays. Its compact external dimensions of 25 mm by 8 mm by 18.6 mm allow easy integration into printed circuit boards and display modules.
The display is ideal for electronic components, power and connectors, and optoelectronic display modules. Its construction and grey face color enhance durability and aesthetic integration into devices. Applications include instrumentation, measurement devices, digital counters, and other numeric display needs in industrial and commercial settings.
Manufactured in China, this product embodies quality and compliance with environmental standards. Discover more related LED Display solutions in EnvMart for your electronic development and manufacturing demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 14.2 mm.
It operates reliably within a temperature range of -35°C to 85°C.
The luminous intensity is 7.69 mcd, providing clear visibility in various lighting conditions.
The forward voltage is 25 V and the forward current is 90 mA.
This model uses a through-hole mounting type.
The display features a total of 14 segments.
The external dimensions are 25 mm in width, 8 mm in height, and 18.6 mm in depth.
The dominant wavelength of the red LED is 628 nm.
The decimal point is oriented on the right side of the display.
Yes, it is compliant with RoHS standards for environmental safety.
The face color of the display is grey.
This display can show 2 characters.
