Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header 4 Contacts 3 mm Pitch 1 Row Shrouded MPC3

Free Delivery in India | Lowest Global Shipping Charges

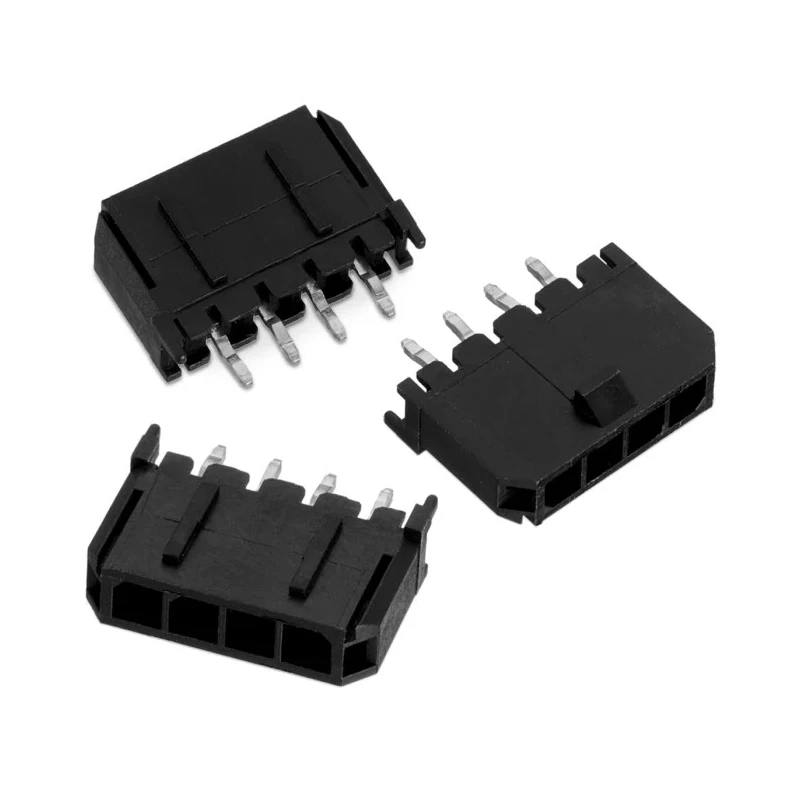

Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header 4 Contacts 3 mm Pitch 1 Row Shrouded MPC3

Name: Wurth Elektronik WR-MPC3 Series Straight Through Hole PCB Header 4 Contacts 3 mm Pitch 1 Row Shrouded MPC3
Brand: Wurth Elektronik
SKU: 379345
Price: 0.56 USD
Availability: InStock



Category PCB Headers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	5A
Model	MPC3
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	WR-MPC3
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.18mm

Key Features

It features a liquid crystal polymer housing for high durability.
The contacts are made of copper alloy with tin plating ensuring reliable conductivity.
The connector supports up to 5A current and 250V voltage rating.
It is designed for through hole mounting in wire-to-board applications.
Operating temperature ranges from -40°C to 105°C for versatile usage.
Tail pin length is 3.18 mm supporting stable solder connections.
The shrouded design provides improved mating and protection.
Single row layout with 3 mm pitch matches standard PCB layouts.

Product Description

Wurth Elektronik MPC3 series PCB Header MPC3 is a straight through hole male connector featuring 4 contacts with a 3 mm pitch and a single-row shrouded housing. It utilizes a liquid crystal polymer housing material that offers high mechanical strength and thermal resistance suitable for demanding PCB assembly environments.

The copper alloy contacts are tin-plated to ensure low resistance and excellent solderability with a tail pin length of 3.18 mm optimized for secure through hole mounting. This PCB header supports electrical ratings of 5A current and 250V voltage, making it suitable for a wide range of electronic and power distribution devices.

Its operating temperature range from -40°C to 105°C enables function in harsh industrial or commercial environments. The shrouded male header design provides protection from accidental shorts and reinforces connector stability during board insertion.

Applications include electronic manufacturing, power connectors for industrial equipment, PCB interconnections, and modular wiring harnesses. This connector mates with WR-MPC3 female receptacles designed for reliable wire-to-board connections in varied conditions.

Liquid crystal polymer housing ensures durability and thermal stability. Copper alloy contacts with tin plating maintain conductivity and corrosion resistance. Supports 5A current and 250V voltage for high-reliability circuits.

Through hole mount type ensures strong PCB attachment. Operating temperature from -40°C to 105°C for industrial use. Shrouded single row design enhances connection protection. 3 mm pitch and 4 contacts fit standard PCB layouts.

Compatible with WR-MPC3 series female connectors.

This Wurth Elektronik PCB header MPC3 model offers electrical professionals a robust and versatile connector solution to meet demanding assembly and operational requirements in industrial, manufacturing, and electronics sectors. Explore more connectors like this in the Electronics & Electricals category at EnvMart to complete your assembly projects with reliable components.
