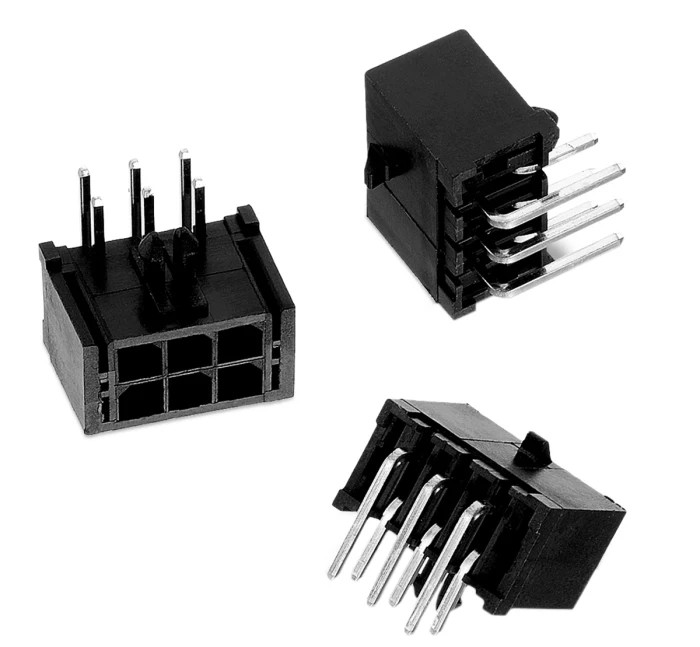

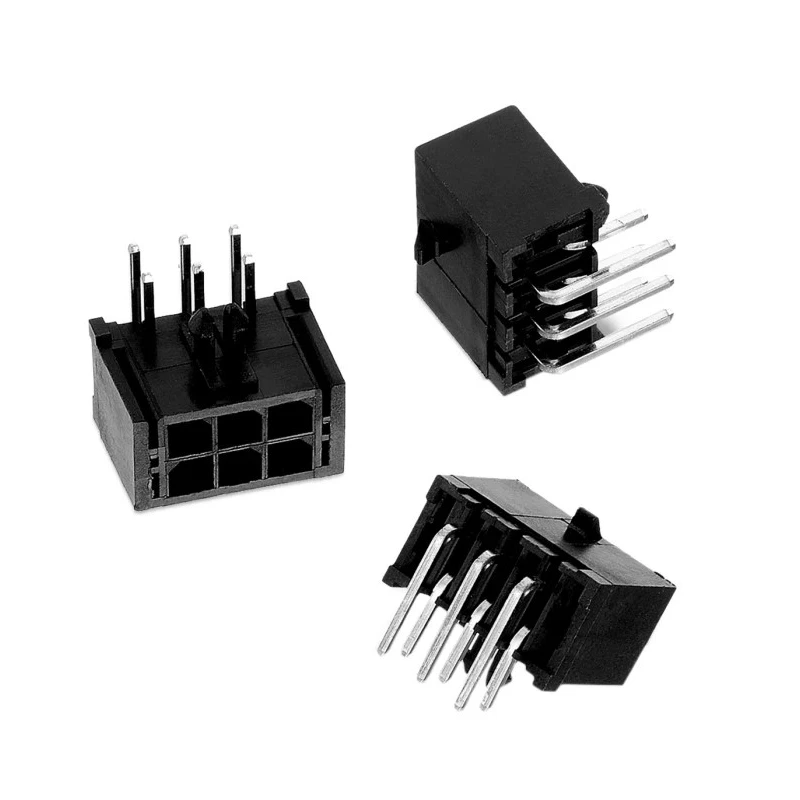

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header Connector, 16 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3

Wurth Elektronik MPC3 is a high-quality Right Angle Through Hole PCB Header Connector designed for industrial and commercial electronics applications. It features a dual row male header configuration with 16 contacts spaced at a 3 mm pitch, making it ideal for compact PCB designs requiring reliable wire-to-board connectivity.

The housing is made from robust liquid crystal polymer with a UL94-V0 black PA9T insulator that offers excellent durability and flame resistance. The contacts consist of tin-plated copper alloy, ensuring high conductivity and corrosion resistance. This connector's shrouded design includes board locks that secure mating connectors and enhance mechanical stability during installation and operation.

It supports a rated current of 5 amperes and withstands voltages up to 250 volts. Its solder termination tail pins, each with a length of 3.2 mm, allow precise and reliable through-hole PCB mounting. The connector is engineered to operate across -40°C to 105°C, supporting use in varied industrial environments, including industrial controls, power supplies, and electronic equipment manufacturing.

This Wurth MPC3 series connector facilitates easy and secure wire-to-board connections in electronic assemblies, suitable for sectors such as manufacturing, automation, telecommunications, and consumer electronics. Its shrouded and right angle form factor optimize PCB layout efficiency while providing excellent mechanical protection.

The connector supports a current rating of 5A, suitable for various power applications. Constructed with liquid crystal polymer housing for high durability and heat resistance. Features tin-plated copper alloy contacts ensuring reliable electrical conductivity.

Designed for through hole mounting with solder termination and right angle orientation. Operating temperature ranges from -40°C to 105°C, enabling use in diverse environments. Tail pin length is 3.2 mm, facilitating stable connection to PCB.

Shrouded design with board locks improve mechanical stability and protection. Rated for voltage up to 250V, suitable for various industrial electronic assemblies.
