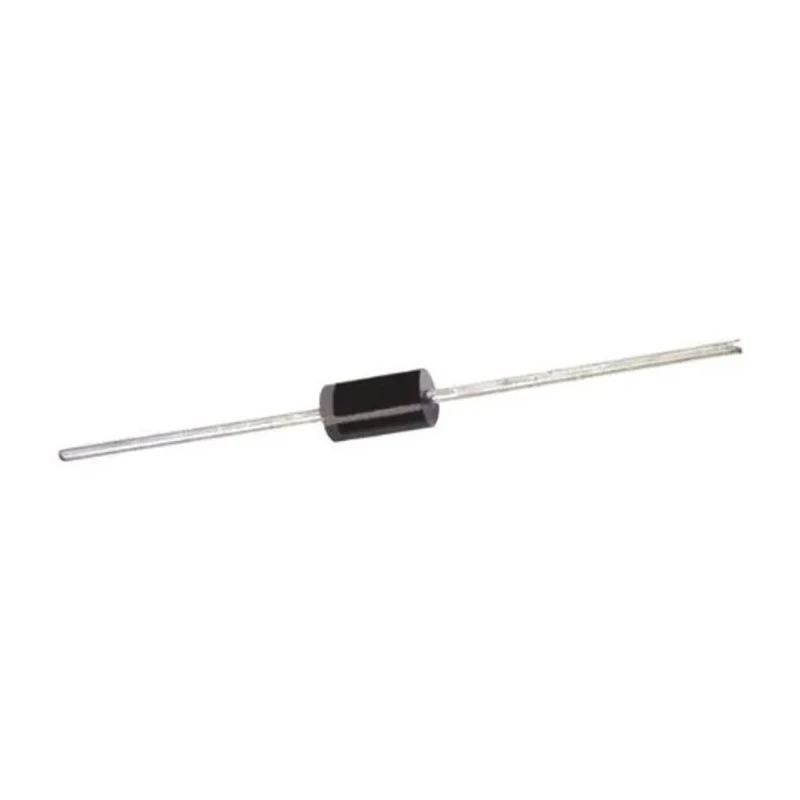

Vishay Silicon Junction Switching Diode, Single, 3 A Maximum Forward Current, 50 V Maximum Peak Reverse UF5400-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode, Single, 3 A Maximum Forward Current, 50 V Maximum Peak Reverse UF5400-E3/54

Name: Vishay Silicon Junction Switching Diode, Single, 3 A Maximum Forward Current, 50 V Maximum Peak Reverse UF5400-E3/54
Brand: Vishay
SKU: 377156
Price: 20.22 USD
Availability: InStock



Category Switching Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	5.3mm
Brand	Vishay
Height	5.3mm
Length	9.5mm
Model	UF5400-E3/54
Width	5.3mm
Mount Type	Through Hole
Series	UF5400
Maximum Operating Temperature	150°C
Case	DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade
Package Type	DO-201AD
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Polarity	Colour band denotes cathode end
Terminals	Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	50ns
Maximum Forward Current If	3A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V

Key Features

Glass passivated chip junction ensures reliable performance.
Ultrafast reverse recovery time of 50 nanoseconds minimizes switching losses.
Low forward voltage drop of 1 V increases efficiency.
High forward surge current capability of 150 A enhances robustness.
Operating temperature range from -55°C to 150°C supports wide environmental conditions.
Matte tin-plated leads are solderable per industry standards.
Colour band denotes cathode for correct polarity installation.
DO-201AD case molded with UL 94 V-0 flammability rated compound.

Product Description

Vishay UF5400-E3/54 is a silicon junction switching diode designed for demanding industrial and consumer electronic applications requiring ultrafast switching and high surge tolerance.

This single diode supports a maximum forward current of 3 A and has a maximum peak reverse voltage rating of 50 V, making it suitable for medium power switching circuits. The diode is packaged in a DO-201AD through-hole package with a 2-pin configuration, ensuring easy mounting and connection in PCB assemblies.

The device features a glass passivated chip junction to enhance stability and longevity. Its ultrafast reverse recovery time of 50 nanoseconds significantly reduces switching losses, improving efficiency in high frequency converter circuits.

With a low forward voltage drop of 1 V, the diode contributes to lower power dissipation. Its high forward surge current capacity of 150 A provides robustness against transient overloads and surge events.

The diode operates reliably in a wide temperature range from -55°C to 150°C, suitable for various environmental conditions in electronics, telecommunications, and computing applications.

The terminals are matte tin-plated and solderable as per J-STD-002 and JESD 22-B102 standards while the case material meets UL 94 V-0 flammability rating, assuring safety and compliance with international norms.

Glass passivated chip junction for enhanced reliability. Ultrafast ultrarecovery with 50 ns reverse recovery time. Low forward voltage drop of 1 V for efficiency. High forward surge current rated at 150 A. Operating temperature from -55°C to 150°C for versatility.

DO-201AD package with flammability-rated case. Matte tin-plated leads for solderability. Polarity marked by color band on cathode. RoHS compliant commercial grade semiconductor device. Designed for high frequency rectification and freewheeling in switching power supplies.

Ideal for use in industrial, telecommunications, consumer electronics, and computer power control systems requiring efficient switching diodes with reliable surge capacity. Explore more Switching Diodes and semiconductor devices in our Electronics & Electricals category at EnvMart.
