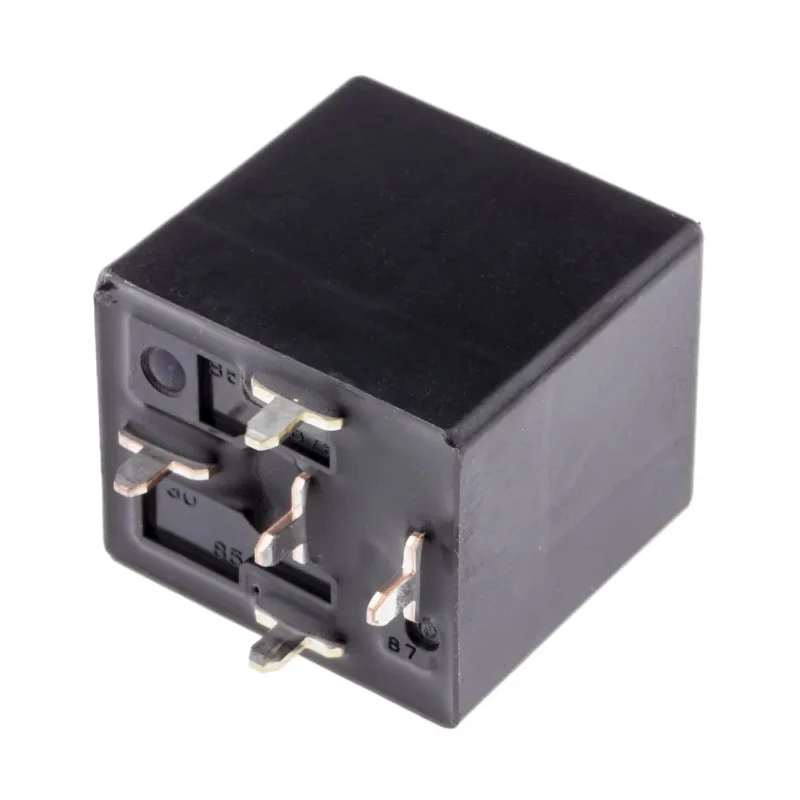

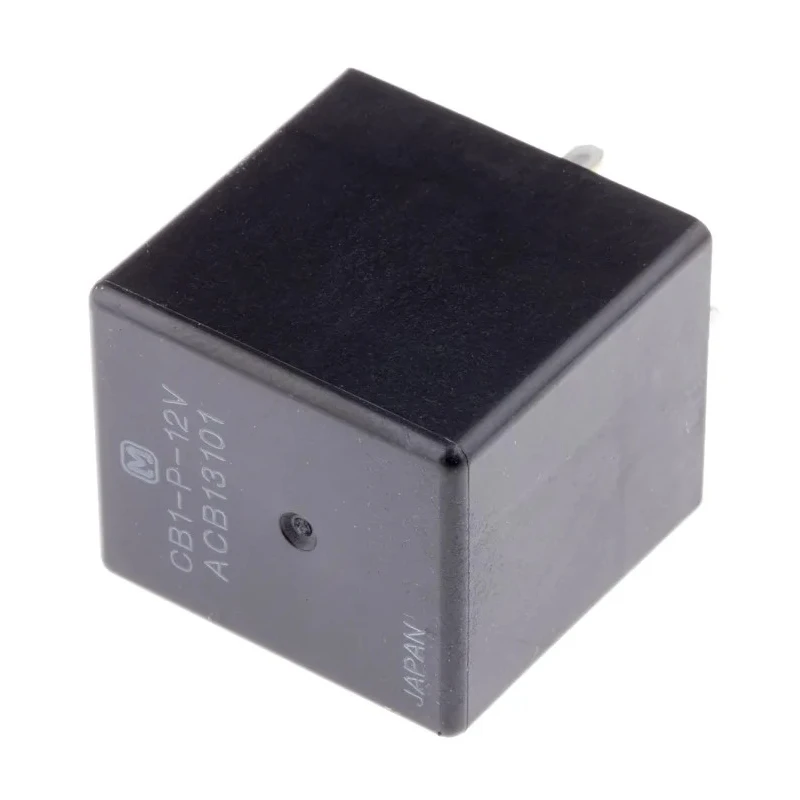

Panasonic PCB Automotive Relay 12V DC Coil Voltage 40A Switching Current SPDT CB1-P-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25mm |
| Length | 26mm |
| Model | CB1-P-12V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Gold |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 103Ω |
| Coil Power | 1.4W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact size with dimensions 26mm length, 25mm height, and 22mm depth.
- Single pole double throw (SPDT) contact configuration for versatile switching.
- PCB mounting type with PCB terminals for secure installation.
- Coil power consumption of 1.4W and coil resistance of 103 ohms.
- Operating temperature range from -40°C to 85°C, suitable for automotive environments.
- High isolation voltage of 500Vrms between coil and contacts for safety.
- Gold contact material ensuring reliable conductivity and durability.
- Designed for automotive, construction equipment, and agricultural equipment applications.
Product Description
Panasonic CB1-P-12V is a PCB Automotive Relay designed for high power automotive applications. It features a compact design with dimensions 26mm x 25mm x 22mm and high thermal resistance, suitable for harsh environments found in automotive, construction, and agricultural equipment.
This relay operates at a coil voltage of 12V DC with a coil power of 1.4W and a coil resistance of 103 ohms, ensuring efficient power usage. It has a single pole double throw (SPDT) contact configuration capable of switching currents up to 40A.
The relay mounts securely on PCBs using PCB terminals and features a mini-ISO terminal arrangement for easy integration. It offers excellent isolation between coil and contacts rated at 500Vrms, providing safe operation in electrical circuits. Gold-plated contacts guarantee high reliability and low contact resistance.
The operating temperature range from -40°C to 85°C makes it suitable for a wide range of industrial and automotive environments. Its compact and robust design ensures long-lasting performance even under demanding conditions.
Compact dimensions optimize space in automotive and industrial control systems. SPDT contact configuration allows for versatile switching applications. High isolation voltage protects electronic components. Gold contacts provide stable electrical connectivity.
Wide temperature range suitable for automotive and equipment use. PCB mounting with ISO terminal arrangement simplifies installation. Robust construction ensures durability and reliability. Ideal for automotive, construction, and agricultural equipment control circuits.
This Panasonic automotive relay is a reliable component choice for system designers requiring a compact, efficient, and durable switching solution. Explore more Automotive Relays and electrical components on EnvMart to support your industrial and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It can switch currents up to 40A.
This relay has dimensions of 26mm in length, 25mm in height, and 22mm in depth.
It features a single pole double throw (SPDT) contact configuration.
The coil resistance is 103 ohms.
The operating temperature range is from -40°C to 85°C.
It is designed for PCB mounting and uses PCB terminals for secure installation.
It has a high isolation voltage of 500Vrms between the coil and contacts.
The contacts are made of gold, ensuring reliable conductivity.
It is suitable for automotive, construction equipment, and agricultural equipment applications.
The coil power consumption is 1.4W.
The country of origin for this relay is Japan.
