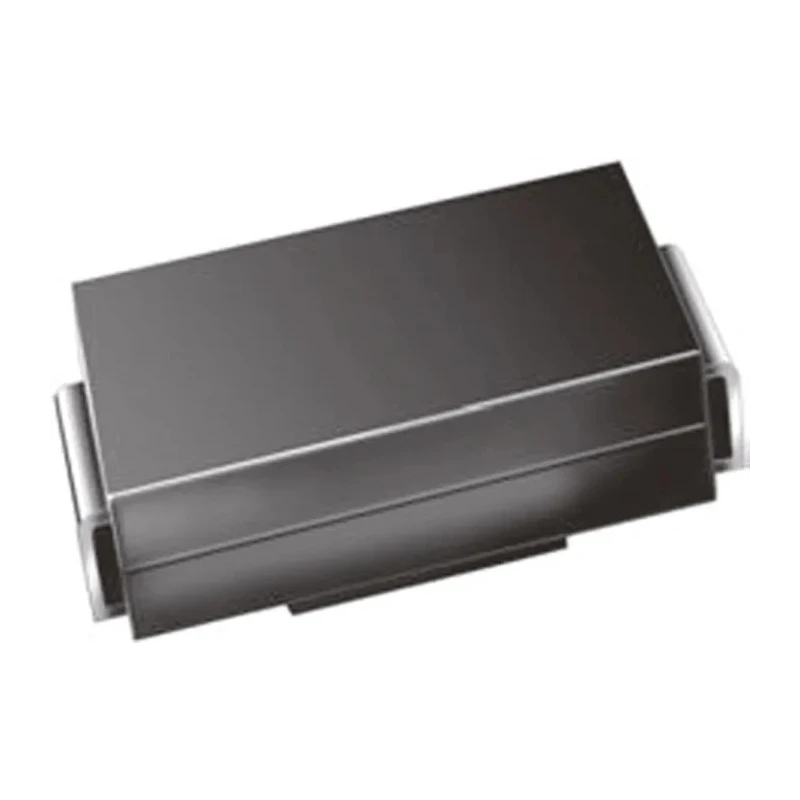

Vishay 20 V 1 A Surface Mount Schottky Diode DO-214AC Package B120-E3/61T

Free Delivery in India | Lowest Global Shipping Charges

Vishay 20 V 1 A Surface Mount Schottky Diode DO-214AC Package B120-E3/61T

Name: Vishay 20 V 1 A Surface Mount Schottky Diode DO-214AC Package B120-E3/61T
Brand: Vishay
SKU: 376245
Price: 0.12 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.09mm
Length	4.5mm
Model	B120-E3/61T
Width	2.79mm
Mount Type	Surface
Series	B120-E3
Maximum Operating Temperature	125°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	6mA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	520mV

Key Features

Features a compact 2-pin DO-214AC surface mount package for circuit board designs.
Supports a maximum continuous forward current of 1 A with high efficiency.
Offers a peak reverse repetitive voltage of 20 V and low forward voltage drop of 520 mV.
Operates reliably across temperatures from -65°C to 125°C, ensuring robust performance.
Designed with a fast switching action and minimal reverse recovery time to reduce power loss.
Peak non-repetitive forward surge current rating of 30 A for transient conditions.
Constructed as a single Schottky rectifier diode suitable for fast and low-power-loss applications.
Manufactured in China, meeting Vishay’s high-performance semiconductor standards.

Product Description

Vishay B120-E3/61T Surface Mount Schottky Diode is a high-performance discrete semiconductor device designed for fast switching and low power loss in electronic circuits. It features a compact 2-pin DO-214AC package suitable for surface mount assembly, delivering a maximum continuous forward current of 1 A and a peak reverse repetitive voltage rating of 20 V.

This Schottky rectifier exhibits a very low forward voltage drop of 520 mV, which helps enhance efficiency in power management and conversion applications. With a peak non-repetitive forward surge current of 30 A, it accommodates transient load conditions effectively, and the fast switching characteristics reduce reverse recovery time, minimizing switching losses.

Operating reliably within a temperature range from -65°C to 125°C, the diode ensures durable performance in varied industrial, laboratory, and commercial electronics environments. Its small form factor measuring 4.5 mm in length, 2.79 mm in width, and 2.09 mm in height enables integration into compact circuit boards.

This device is ideal for use in power supplies, voltage clamping, reverse polarity protection, and other switching applications requiring efficient diode rectification with low forward voltage drop and fast switching speeds.

Compact 2-pin DO-214AC surface mount package for space-saving PCB design. Maximum continuous forward current of 1 A supports moderate load currents. Peak reverse repetitive voltage of 20 V suited for low-voltage rectification tasks.

Low maximum forward voltage drop of 520 mV improves energy efficiency. Wide operating temperature range from -65°C to 125°C ensures reliability. High surge current rating up to 30 A for transients and overload protection.

Fast switching reduces power losses in switching power circuits. Single diode configuration suitable for Schottky rectifier use cases.

Manufactured in China, the Vishay B120-E3/61T meets industry standards for quality and reliability. This diode is a trusted choice for semiconductor applications in industrial electronics, power conversion, automotive electronics, and telecommunications equipment.

Explore more electronic components and semiconductors in the Vishay range at EnvMart for reliable, high-performance parts suitable for multiple technical fields.

Explore more products in our Schottky Diodes & Rectifiers category.
