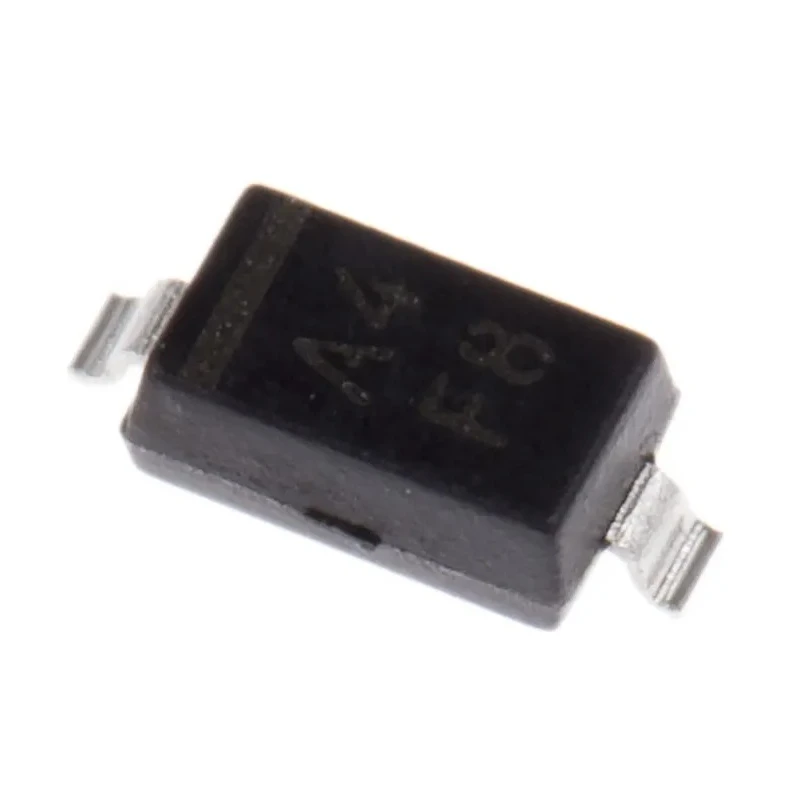

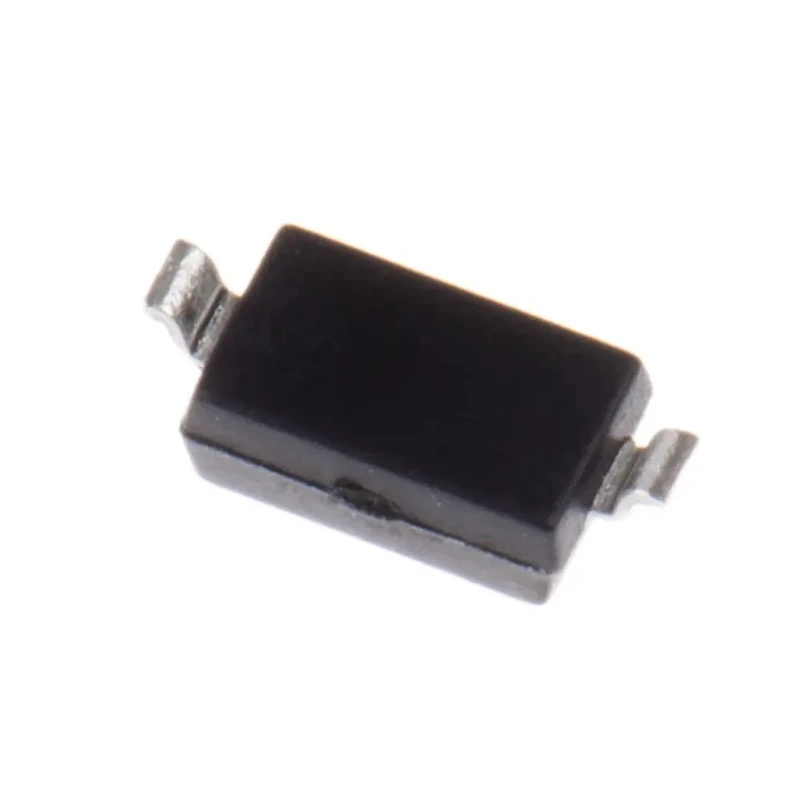

Vishay Silicon Junction Switching Diode Single 200mA 50V SOD-123 1N4150W-E3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode Single 200mA 50V SOD-123 1N4150W-E3-08

Name: Vishay Silicon Junction Switching Diode Single 200mA 50V SOD-123 1N4150W-E3-08
Brand: Vishay
SKU: 376168
Price: 0.04 USD
Availability: InStock



Category Discrete Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.25mm
Length	2.85mm
Model	1N4150W-E3-08
Width	1.7mm
Mount Type	Surface
Series	1N4150W
Maximum Operating Temperature	150°C
Case	DO-204AL, molded epoxy over glass body
Package Type	SOD-123
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	200mA
Maximum Peak Reverse Repetitive Voltage Vrrm	50V

Key Features

Glass passivated junction ensures high reliability and durability.
Fast switching capability with peak reverse recovery time of 4 nanoseconds.
Low leakage current typically less than 0.2 microamps.
High forward surge capability up to 4 Amperes.
Surface mount SOD-123 package suitable for automated assembly.
Wide operating temperature range from -55°C to 150°C.
Color band indicates cathode polarity for easy identification.
Matte tin plated leads ensure solderability and long-term connection integrity.

Product Description

Vishay 1N4150W-E3-08 is a high-reliability silicon junction switching diode designed for surface mount applications. It supports a maximum forward current of 200mA and withstands a peak reverse voltage of 50V in a compact SOD-123 package.

This diode features a glass passivated junction that enhances stability and prolongs device lifetime. The fast switching time of 4 nanoseconds makes it ideal for high-efficiency circuits requiring rapid response.

Typical leakage current is extremely low, under 0.2 microamps, ensuring minimal power loss. Its surge current handling reaches up to 4 Amperes, providing robustness against transient spikes.

The molded epoxy body meets the DO-204AL standard with UL 94 V-0 flammability rating, and the leads are matte tin plated for excellent solderability. Polarity is clearly marked with a color band.

With operating temperatures spanning from -55°C to 150°C and compliance to AEC-Q101 automotive standards, this diode is suitable for demanding industrial, automotive, and consumer electronics applications.

Typical uses include high voltage rectification in CRT and TV G2 grids, and snubber circuits in camera flashes. Glass passivated junction ensures high reliability and durability. Fast switching capability with peak reverse recovery time of 4 nanoseconds.

Low leakage current typically less than 0.2 microamps. High forward surge capability up to 4 Amperes. Surface mount SOD-123 package suitable for automated assembly. Wide operating temperature range from -55°C to 150°C. Color band indicates cathode polarity for easy identification.

Matte tin plated leads ensure solderability and long-term connection integrity. Compliant with automotive standard AEC-Q101 for quality assurance.

This product is part of Vishay's range of Discrete Semiconductors, ideal for electronic, industrial, automotive, and manufacturing applications. Explore our semiconductor collections for more solutions to your circuit design needs.
