Vishay 62 V 1.3 W Single Zener Diode Through Hole 2-Pin DO-41 BZX85B62-TR

Free Delivery in India | Lowest Global Shipping Charges

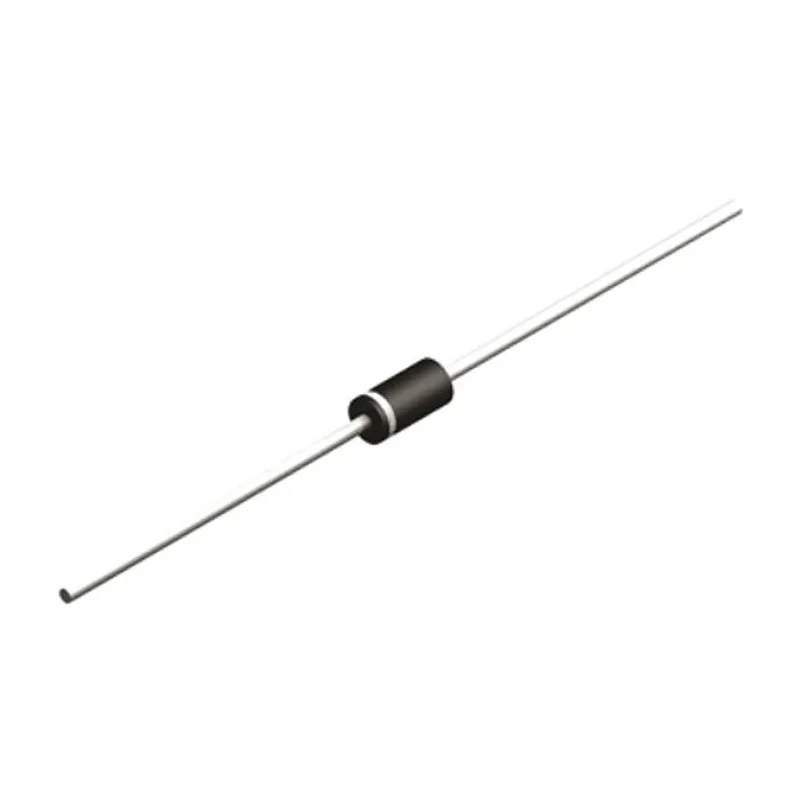

Vishay 62 V 1.3 W Single Zener Diode Through Hole 2-Pin DO-41 BZX85B62-TR

Name: Vishay 62 V 1.3 W Single Zener Diode Through Hole 2-Pin DO-41 BZX85B62-TR
Brand: Vishay
SKU: 375786
Price: 20.22 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85B62-TR
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	4mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	62V
Zener Type	General Purpose
Maximum Zener Impedance	125Ω

Key Features

This general purpose Zener diode has a tolerance of ±2% for voltage stability.
It supports a maximum power dissipation of 1.3 watts ensuring reliable operation.
Designed with a DO-41 package type housing for through hole mounting.
Operates within a temperature range from -55°C to 175°C.
Features a test current of 4 mA suitable for stable voltage regulation.
Has a maximum Zener impedance of 125 ohms for efficient circuit performance.
Maximum reverse leakage current is 500 nA minimizing energy loss.
The diode height and length are 2.6 mm and 4.1 mm respectively for compact design integration.

Product Description

Vishay BZX85B62-TR is a high-quality single Zener diode engineered for voltage stabilization and clipping in electronic circuits. It features a nominal Zener voltage of 62 V and supports a maximum power dissipation of 1.3 W, providing reliable voltage regulation for various industrial and commercial applications.

The diode is housed in a durable DO-41 package, allowing easy through hole mounting with its 2-pin configuration. It operates efficiently across a temperature range of -55°C to 175°C, making it suitable for harsh environments and extended reliability.

This general purpose diode includes a voltage tolerance of ±2% ensuring precision in circuit performance. Its maximum Zener impedance of 125 ohms and low reverse leakage current of 500 nA help in maintaining efficient power usage and circuit stability.

The compact size with a height of 2.6 mm and length of 4.1 mm aids in integration into electronic assemblies where space constraints matter. Commonly used in electronic power and connector applications, this diode is ideal for use in industrial, manufacturing, and electronic component production settings.

This Zener diode is suitable for stabilizing and clipping circuits with high power requirements. Its through hole mount type ensures sturdy placement in PCB designs requiring reliability. The diode's test current of 4 mA and 2-pin configuration support versatility across various circuits.

Made with silicon planar technology, it ensures longevity and consistent performance. The product is manufactured in China to meet stringent quality standards for semiconductor devices. Explore Vishay products and related electronic components in the Zener Diodes category at EnvMart for advanced semiconductor solutions.
