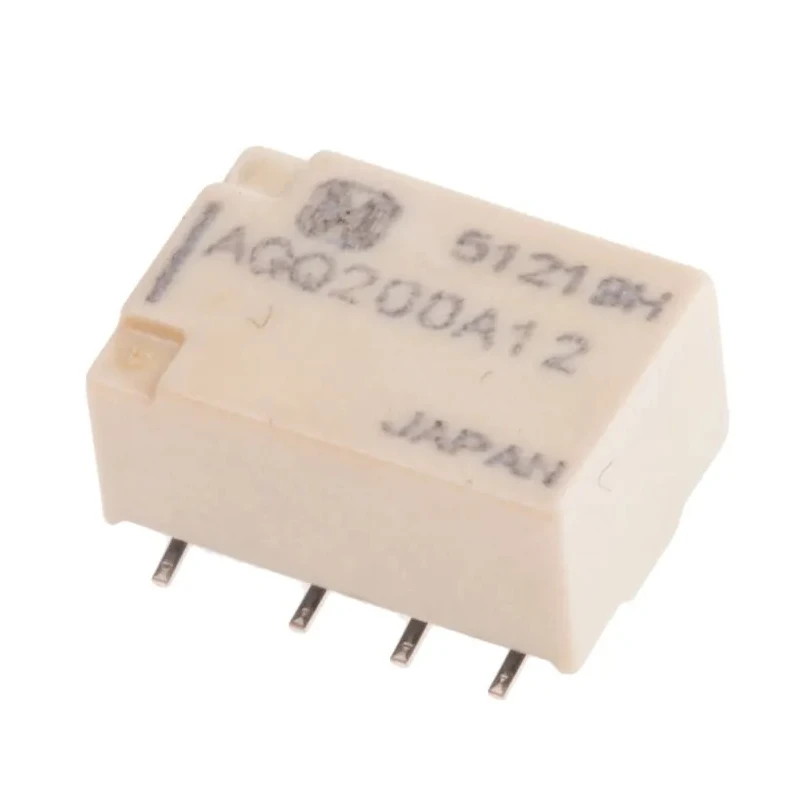

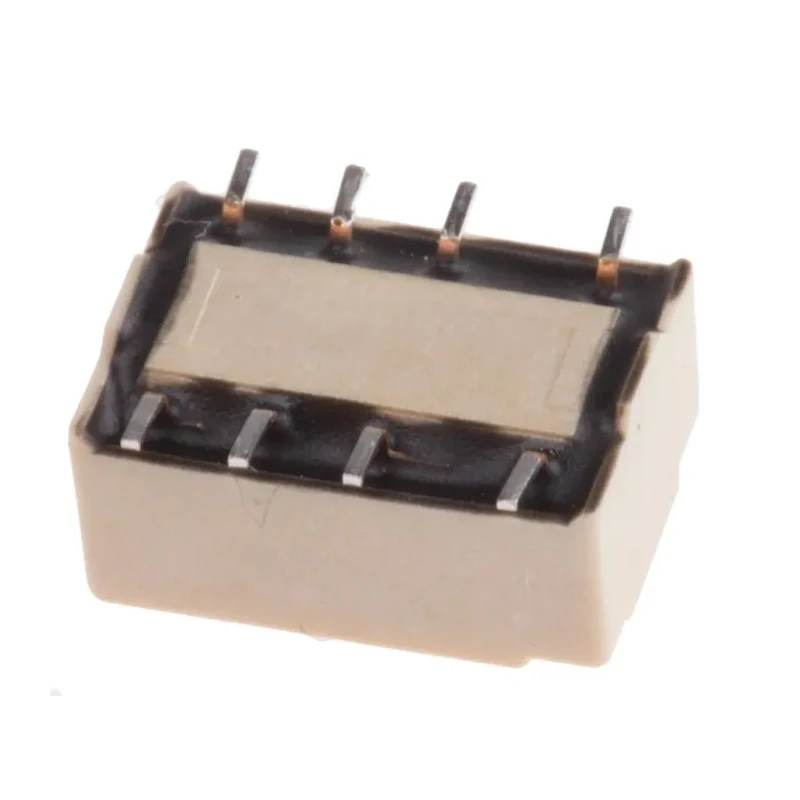

Panasonic Surface Signal Relay, 12V dc Coil, 1A Switching Current, DPDT Contact Configuration AGQ200A12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.2mm |
| Length | 10.9mm |
| Model | AGQ200A12 |
| Width | 7.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5890Brand: PanasonicManufacturers Part No.: AGQ200A12Distrelec Article No.: 13705491 |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
Key Features
- Compact PCB mount relay with high surge resistance and vibration tolerance.
- Gold plated silver aluminium contacts ensure reliable performance.
- Sealed construction allows for automatic washing and robust protection.
- Suitable for use in telecommunications, security, audio-visual, and measurement equipment.
- Operates within a temperature range of -40°C to 85°C.
- Low nominal operating power consumption of 140 mW enhances energy efficiency.
- PCB terminal mount type for easy installation.
- Complies with RoHS standards.
Product Description
Panasonic AGQ200A12 is a surface mount signal relay with a 12V DC coil and a DPDT contact configuration designed for industrial and electronic applications requiring compact and reliable switching.
This relay features a compact flat body measuring 10.6 x 7.2 x 5.2 mm and is designed for PCB mounting with gold plated silver aluminium contacts that provide excellent conductivity and durability.
The relay supports a switching current of 1A, switching AC voltage up to 125V and DC voltage up to 110V, suitable for various signal and control circuits. Its sealed construction protects against environmental factors and allows automatic washing, ensuring enhanced longevity in demanding applications.
Nominal coil power consumption is 140 mW, making it efficient in power-sensitive systems. It has superior surge resistance (2500V 2x10 μs, 1500V 2x160 μs), functional shock resistance of 705 m/s2, and vibration resistance between 10 to 55Hz for reliable performance in industrial environments.
Typical applications include telephone switchboards, telecommunications devices, security systems, measurement instruments, consumer electronics, and audio-visual equipment. Compact design 10.6 x 7.2 x 5.2 mm. High sensitivity and superior surge resistance.
Nominal operating power 140 mW. Sealed construction suitable for automatic washing. Gold plated silver aluminium contacts. PCB terminal mounting type. Wide operating temperature range from -40°C to 85°C. RoHS compliant for environmental safety.
Explore more Signal Relays and electronic components at EnvMart specialized categories for electronics and electrical supplies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a switching current of up to 1A.
The dimensions of this model are 10.6 mm in length, 7.2 mm in width, and 5.2 mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The maximum operating temperature is 85°C.
It has a sealed construction that protects against environmental factors and allows for automatic washing.
The nominal coil power consumption is 140 mW, which enhances energy efficiency.
It can switch AC voltage up to 125V and DC voltage up to 110V.
This model is designed for PCB terminal mounting.
The contacts are made of gold plated silver aluminium, ensuring reliable performance.
It is suitable for use in telecommunications, security systems, audio-visual equipment, and measurement instruments.
Yes, it complies with RoHS standards for environmental safety.
