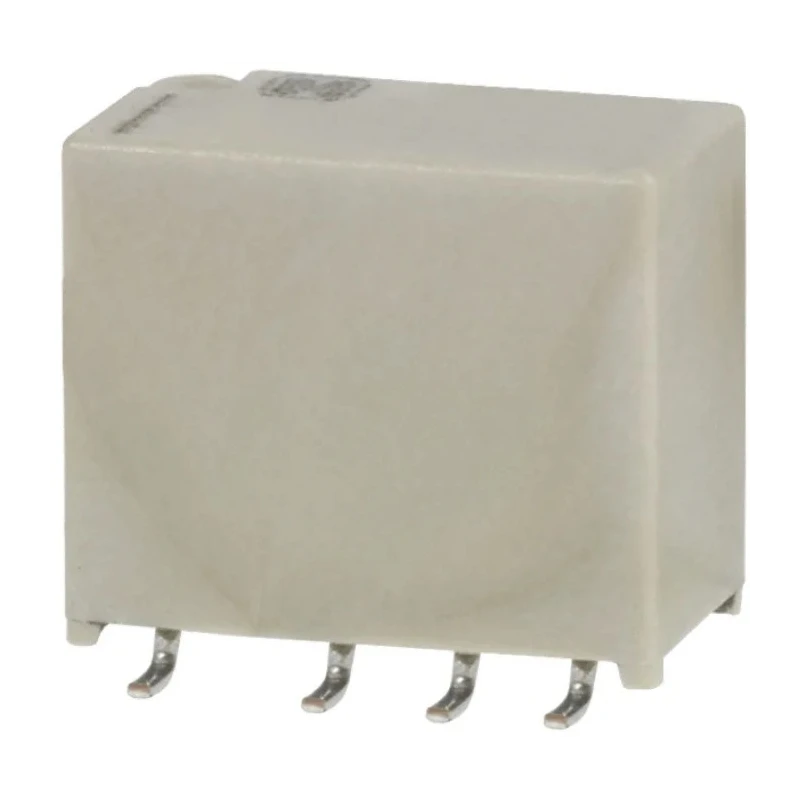

Panasonic Surface Signal Relay, 4.5V DC Coil Voltage, 1A Switching Current, DPDT Contact Configuration AGN200A4H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.9mm |
| Model | AGN200A4H |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 145Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
Key Features
- Compact surface-mount design with dimensions 9mm height, 5.7mm width, and 10.9mm length.
- Gold plated silver aluminum contact material ensures excellent conductivity and durability.
- Coil power consumption of 140mW and coil resistance of 145 ohms for efficient operation.
- Wide operating temperature range from -40°C to 85°C for diverse industrial environments.
- Sealed construction offers high surge resistance and vibration/shock reliability.
- Typical applications include telecommunications, measurement equipment, and audio-visual devices.
- PCB terminal type mounting suitable for automated assembly processes.
- RoHS compliant with standards for environmental safety.
Product Description
Panasonic AGN200A4H is a high-performance surface Signal Relay designed for industrial, telecommunications, and measurement applications. Featuring a 4.5V DC coil voltage and dual-pole double-throw (DPDT) contact configuration, it enables reliable signal switching with a switching current of 1A.
The relay boasts a compact slim body measuring 9mm in height, 5.7mm in width, and 10.9mm in length, facilitating high packaging density on PCB assemblies. Gold plated silver aluminum contacts provide superior conductivity and long service life.
Designed to withstand harsh environments, AGN200A4H operates efficiently within a temperature range of -40°C to 85°C and incorporates sealed construction that resists surges, vibrations, and shocks. The coil power consumption is only 140mW with a coil resistance of 145Ω, optimizing energy efficiency.
This surface-mounted relay uses PCB terminal type mounting suitable for automated soldering and assembly processes. It complies with ROHS environmental standards, ensuring it meets current regulatory requirements.
Common applications span telecommunications equipment, measurement instruments, and audio-visual devices. Its reliable contact configuration and surge resistance make it ideal for use in demanding electrical switching roles.
Compact slim body with low height and small footprint. Highly reliable twin crossbar contacts. Sealed construction for durability and automatic washing. High vibration and shock resistance. CSA and UL approvals underline safety and quality assurance.
Optimized coil power and resistance characteristics. Gold plated silver aluminium contact materials. Designed for surface mounting on PCB terminals. Explore the full range of Panasonic relays and signal conditioning products at EnvMart for your industrial and electronics project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 4.5V DC.
This model has a switching current capacity of 1A.
The relay measures 9mm in height, 5.7mm in width, and 10.9mm in length.
It features a dual-pole double-throw (DPDT) contact configuration.
The operating temperature range is from -40°C to 85°C.
This model uses PCB terminal type mounting, suitable for surface mounting.
The coil power consumption is 140mW.
The contacts are made from gold plated silver aluminum, ensuring excellent conductivity.
Yes, it is RoHS compliant, meeting environmental safety standards.
It can switch DC voltages up to 110V and AC voltages up to 125V.
Typical applications include telecommunications, measurement equipment, and audio-visual devices.
The relay is manufactured in Japan.
