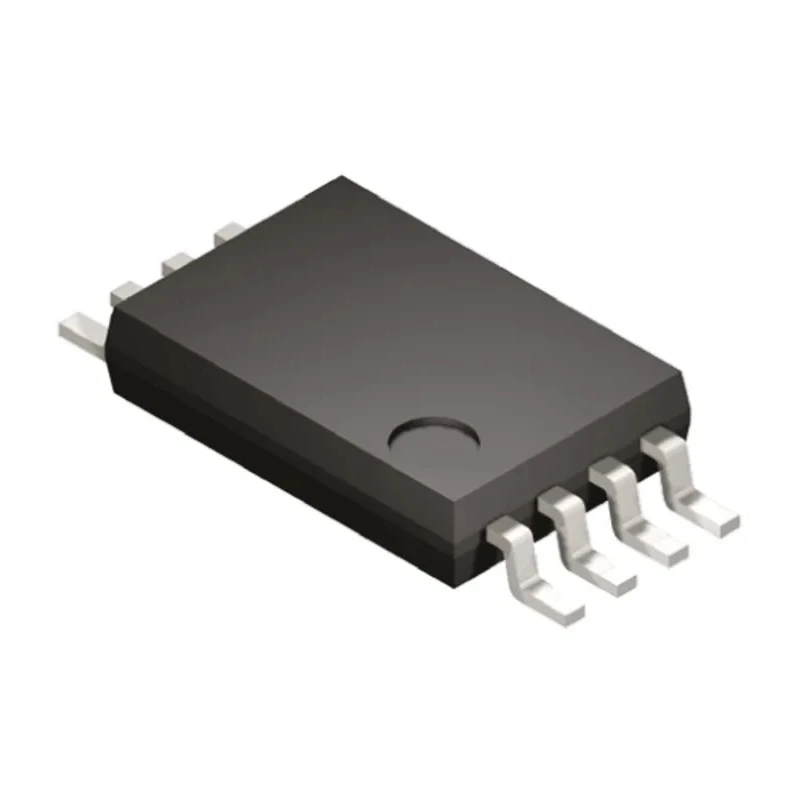

onsemi Line Receiver, CML Logic Family, Differential Input, 8-Pin TSSOP NB4N316MDTG

Free Delivery in India | Lowest Global Shipping Charges

onsemi Line Receiver, CML Logic Family, Differential Input, 8-Pin TSSOP NB4N316MDTG

Name: onsemi Line Receiver, CML Logic Family, Differential Input, 8-Pin TSSOP NB4N316MDTG
Brand: onsemi
SKU: 373460
Price: 9.79 USD
Availability: InStock



Category Line Interface ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.1mm
Length	3.1mm
Model	NB4N316MDTG
Width	3.1mm
Mount Type	Surface
Output type	CML
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
IC Type	Receiver
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	4V
Logic Family	CML
Logic Function	Line Receiver
Minimum Supply Voltage	-4V
Maximum Propagation Delay Time @ CL	550ps
Supply Current	30mA

Key Features

Operates with supply voltage between -4V and 4V.
Single channel line receiver with CML output type.
Maximum propagation delay time of 550ps at CL.
Wide operating temperature range from -40°C to 85°C.
Compact TSSOP package measuring 3.1mm length, 3.1mm width, and 1.1mm height.
Low supply current of 30mA ensuring efficient power consumption.
Surface mount device suitable for high-density circuit boards.
Designed without automotive standard compliance.

Product Description

onsemi NB4N316MDTG is a high-performance line receiver integrated circuit that belongs to the CML logic family, providing reliable signal conditioning for electronic systems. It features an 8-pin thin shrink small outline package (TSSOP) designed for surface mount applications with a compact footprint measuring 3.1mm by 3.1mm and a height of 1.1mm.

The device operates within a supply voltage range of -4V to 4V, accommodating various system requirements. It offers a single differential input channel with a Current Mode Logic (CML) output, delivering high-speed signal processing with a maximum propagation delay of only 550 picoseconds at the specified load capacitance.

With an operating temperature range from -40°C to 85°C, the NB4N316MDTG is suitable for a wide range of industrial and commercial electronic applications where temperature variations occur. The IC maintains low supply current consumption of 30mA to optimize power efficiency in various embedded and digital signal processing circuits.

The package type ensures easy integration on printed circuit boards requiring surface mount technology, offering compact design benefits and enhanced assembly processes. Although this product does not meet automotive standards, it is engineered for reliable use in interface and line receiver applications in telecommunications, test equipment, and general semiconductor interfacing.

Operates with supply voltage between -4V and 4V. Single channel line receiver with CML output type. Maximum propagation delay time of 550ps at CL. Wide operating temperature range from -40°C to 85°C. Compact TSSOP package measuring 3.1mm length, 3.1mm width, and 1.1mm height.

Low supply current of 30mA ensuring efficient power consumption. Surface mount device suitable for high-density circuit boards. Designed without automotive standard compliance.

This line receiver is applicable in electronics industrial sectors such as automation, telecommunications, instrumentation, manufacturing, and other related fields requiring reliable digital signal interfacing.

Explore more high-quality semiconductor interface ICs and line receivers at EnvMart to find solutions tailored for your electronic design needs.

Explore more products in our Line Interface ICs category.
