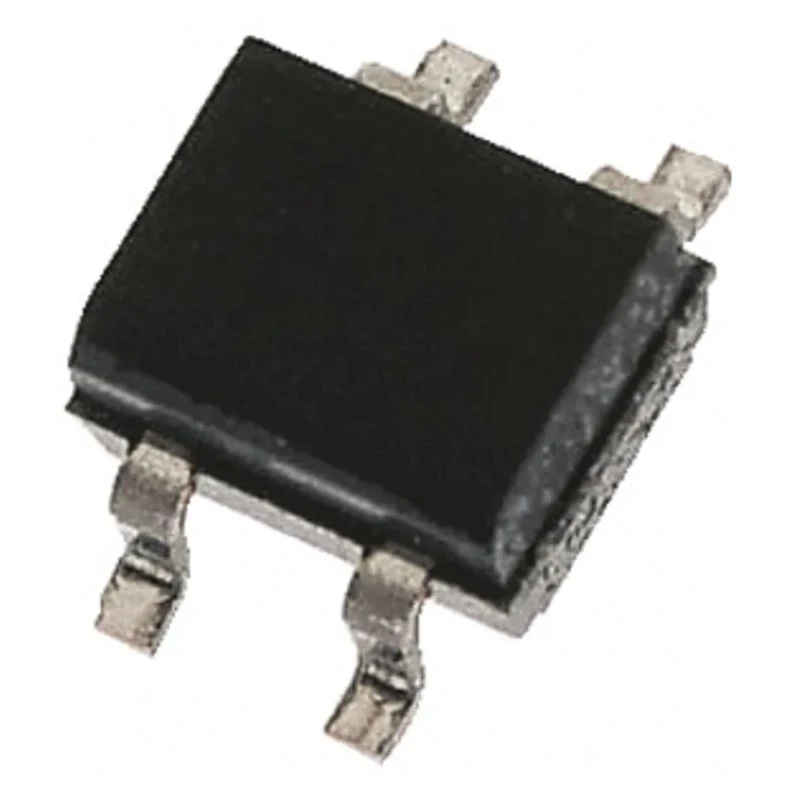

Vishay Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier 200 V 50 A, 4-Pin Single EDF1DS-E3/77

Free Delivery in India | Lowest Global Shipping Charges

Vishay Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier 200 V 50 A, 4-Pin Single EDF1DS-E3/77

Name: Vishay Miniature Glass Passivated Ultrafast Surface Mount Bridge Rectifier 200 V 50 A, 4-Pin Single EDF1DS-E3/77
Brand: Vishay
SKU: 375622
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	EDF1DS-E3/77
Width	6.5mm
Mount Type	Surface
Series	EDF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.05V

Key Features

Ultrafast reverse recovery time suitable for high frequency applications.
Surface mount type package ensuring easy PCB integration.
High surge current capability rated at 50 A.
Compact size with dimensions 8.51mm length, 6.5mm width, and 3.3mm height.
Operating temperature range from -55°C to 150°C for reliable performance.
Miniature glass passivated construction for enhanced durability.
Ideal for automated placement and PCB reflow soldering processes.
Designed for full-wave rectification converting AC input to DC output.

Product Description

Vishay EDF1DS-E3/77 Bridge Rectifier is a miniature glass passivated ultrafast surface mount device designed for efficient AC to DC conversion in electronic circuits. With a peak reverse repetitive voltage of 200 V and a forward current rating of 1 A, it supports demanding power management and rectification needs in industrial and commercial electronics.

This bridge rectifier features a compact DFS package type with four pins enabling single-phase bridge rectification, making it suitable for printed circuit board (PCB) applications that require reliable performance in tight spaces. Its ultrafast reverse recovery time enhances its suitability for high-frequency switching power supplies and other such applications.

The device supports a peak non-repetitive forward surge current of 50 A, providing excellent surge handling capabilities which is critical for transient conditions and spikes in power circuits. It operates within a temperature range from -55°C to 150°C, ensuring durability under varied environmental conditions.

Key mechanical dimensions include a length of 8.51mm, width of 6.5mm, and height of 3.3mm, optimized for automated pick and place assembly processes during PCB manufacturing. The rectifier’s construction leverages glass passivation for improved longevity and reduced leakage currents, delivering high reliability in demanding electronic and power applications.

Commonly used in industrial power supplies, electronic control devices, HVAC systems, manufacturing equipment, and automotive electronics where full-wave rectification is required, the EDF1DS-E3/77 supports robust electrical performance and compact design.

Ultrafast reverse recovery suitable for high frequency operation. High surge current capability up to 50 A. Compact DFS surface mount package. High temperature operating range from -55°C to 150°C. Miniature glass passivated construction for stability and durability.

Supports automated PCB assembly and reflow soldering. Reliable full-wave bridge rectification for AC to DC conversion. Explore the full range of Bridge Rectifiers and semiconductors on EnvMart for reliable industrial electronic components and power control solutions.
