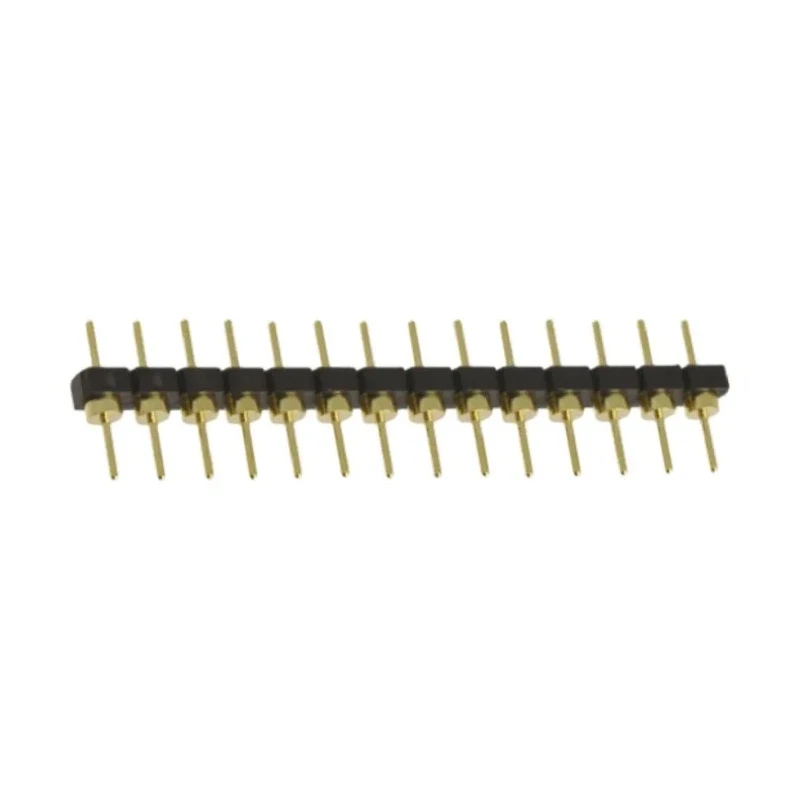

Samtec BBL Series Straight Through Hole Pin Header 14 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-114-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-114-G-E |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.67mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- The pin header features brass contacts with gold plating for reliable conductivity.
- Glass filled polyester housing ensures durability and mechanical strength.
- It is designed for through-hole mounting on printed circuit boards.
- Operating temperature ranges from -55°C to 125°C, supporting various industrial environments.
- The low profile design enables 3.89 mm board spacing when mated with SL series socket strips.
- Termination type is solder, with a tail pin length of 3.18 mm and mating pin length of 2.67 mm.
- The connector system is board-to-board, suitable for stacking terminal strips.
- Unshrouded, straight orientation with male contact gender for compatibility with relevant sockets.
Product Description
Samtec BBL-114-G-E is a precision-engineered Straight Through Hole Pin Header designed for reliable board-to-board connections in electronic assemblies. This connector features 14 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch and is housed in rugged black glass filled polyester material. The unshrouded profile facilitates ease of mounting and soldering on PCBs using through-hole technology.
The pin header operates efficiently within a wide temperature range of -55°C to 125°C, making it suitable for harsh industrial environments including manufacturing, electronic testing, laboratory equipment, and communication devices. Its low profile enables a 3.89 mm spacing when mated with the SL series low profile socket strips, ensuring compact stacking assemblies.
The precision machined contacts provide consistent electrical performance and durability, supported by a solder termination type and tail pin length of 3.18 mm. The connector is a male contact type with straight orientation, optimized for board stacking applications.
Brass contact material offers excellent conductivity with 0.51 μm gold plating for corrosion resistance. Housing made of glass filled polyester for mechanical strength and insulation. Through-hole mount type provides strong mechanical retention on PCBs.
Wide operating temperature range from -55°C to 125°C for diversified application scenarios. Compatible with SL series low profile socket strips and SS series socket strips for flexible mating. Unshrouded design facilitates easy insertion and solder tail access.
1 ampere current rating supports low power electronic circuits with reliable connectivity. Low profile achieves 3.89 mm board spacing when mated, optimizing PCB layout. Ideal for electronics manufacturing, prototyping, test fixtures, and embedded devices.
This Samtec BBL series pin header is a trusted component for high-quality electronic assemblies, delivering performance, durability, and ease of integration. Browse Samtec connectors and PCB Headers at EnvMart for related products and accessories to complete your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 14 contacts arranged in a single row.
It operates within a temperature range of -55°C to 125°C.
The contacts are made of brass with gold plating, and the housing is constructed from glass filled polyester.
This pin header uses a solder termination type.
The tail pin length is 3.18 mm.
This model is unshrouded, which facilitates easy insertion and solder tail access.
It has a current rating of 1 ampere.
This connector supports through-hole mounting on printed circuit boards.
It is compatible with SL series low profile socket strips and SS series socket strips.
The contacts in this model are male.
When mated with SL series socket strips, it achieves a board spacing of 3.89 mm.
