3M 9100 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder Termination 9120-4500PL

Free Delivery in India | Lowest Global Shipping Charges

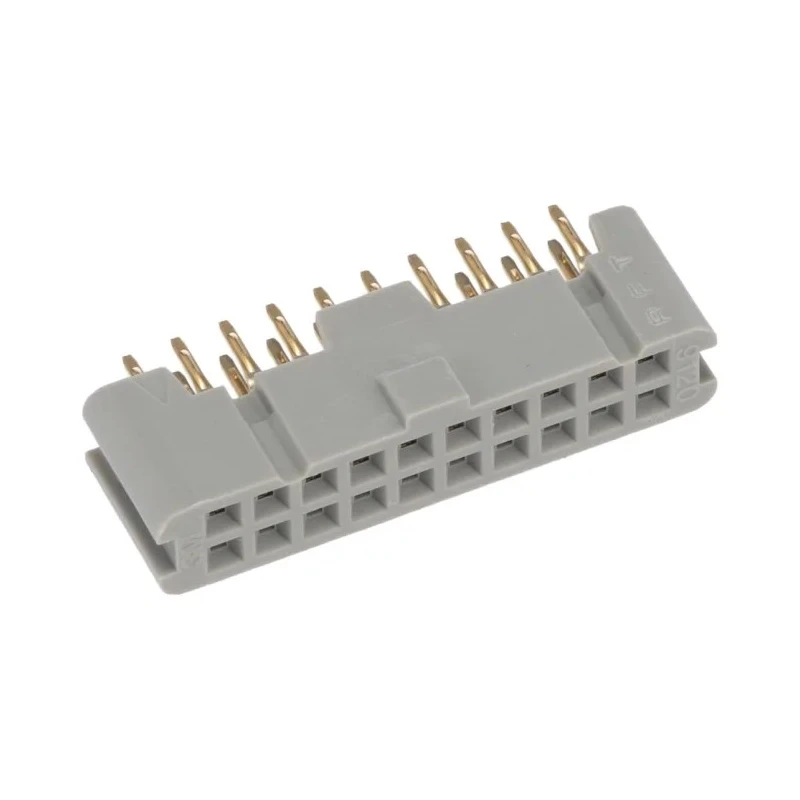

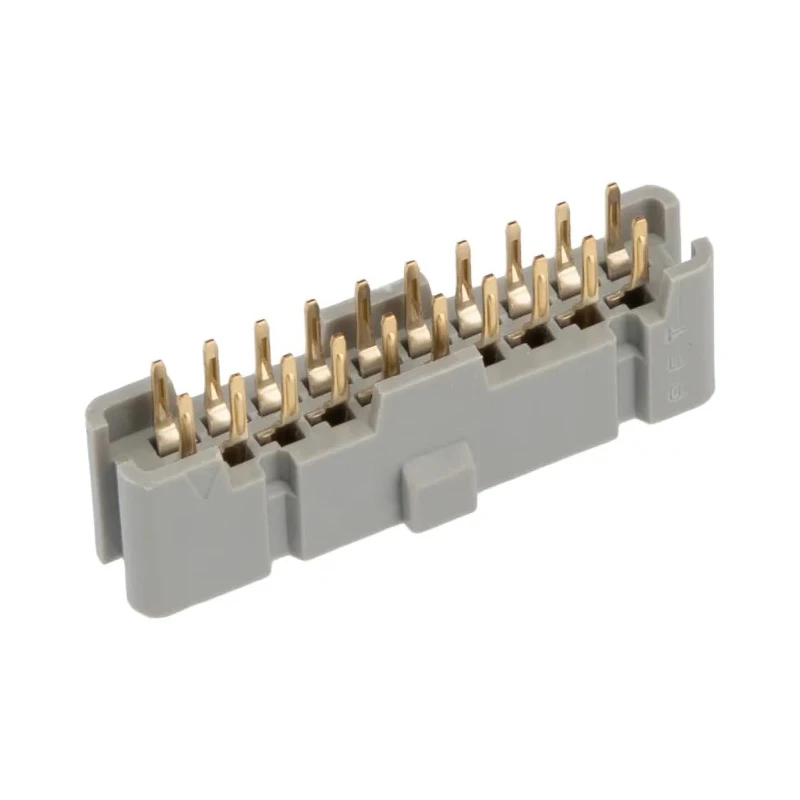

3M 9100 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder Termination 9120-4500PL



Category PCB Socket Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	1kV
Brand	3M
Orientation	Straight
Current	1A
Model	9120-4500PL
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper
Series	9100
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS 2011/65/EU, UL 94V-0
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female

Key Features

Features 20 contacts arranged in two rows for secure board-to-board connections.
Supports a standard 2.54 mm pitch compatible with common PCB layouts.
Solder termination type ensures reliable mechanical and electrical connection.
Rated for 1A current and 1000V voltage for diverse electronic applications.
Constructed with glass filled polyester housing and gold plated copper contacts.
Suitable for through-hole mounting offering sturdy installation.
Minimum operating temperature of -55°C and maximum of 105°C enables use in varying environments.
Complies with RoHS 2011/65/EU and UL 94V-0 standards for safety and environmental compliance.

Product Description

The 3M 9120-4500PL is a 9100 Series Straight Through Hole PCB Socket designed for robust board-to-board electronic connectivity. It features 20 female contacts arranged in two rows with a 2.54 mm pitch and solder termination allowing secure electrical connections in PCB assemblies.

This socket supports a current rating of 1 ampere and is rated for up to 1000 volts, suitable for high-voltage applications within automation, electronics manufacturing, and industrial equipment. The housing is made from durable glass filled polyester, which provides excellent insulation and mechanical strength, while the copper contacts plated with gold resist corrosion and enhance conductivity.

The straight orientation simplifies PCB layout designs and enables easy through-hole mounting. It operates reliably over a temperature range from -55°C to 105°C, making it versatile for various industrial and commercial environments.

Key features include compliance with RoHS 2011/65/EU and UL 94V-0 standards, ensuring both environmental friendliness and fire resistance. This socket is crafted in Japan to high quality and reliability standards.

Features 20 contacts for high-density connections. Standard 2.54 mm pitch fits most PCB layouts. Solder termination ensures stable mechanical and electrical bonding. 1A current and 1000V voltage ratings for versatile use.

Glass filled polyester housing for durability and insulation. Gold-plated copper contacts for corrosion resistance. Through-hole mount type for secure PCB attachment. Wide operating temperature range from -55°C to 105°C.

Compliant with RoHS and UL 94V-0 standards. Made in Japan for trusted quality.

This product is ideal for industrial, commercial, and electronics applications requiring secure, high-performance PCB connections. The 3M 9100 Series Socket exemplifies reliability in electronic hardware assembly, supporting advanced automation and manufacturing needs.
