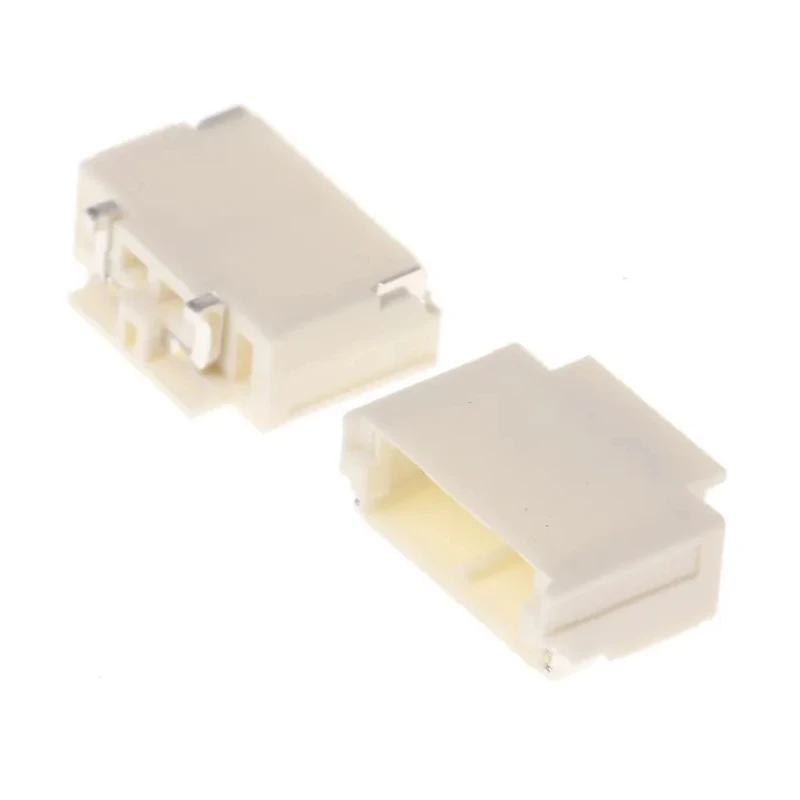

JST LEA Series Right Angle Surface PCB Socket 2-Contact 1 Row 1.8 mm Pitch Crimp SM02B-LEASS-TF (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST LEA Series Right Angle Surface PCB Socket 2-Contact 1 Row 1.8 mm Pitch Crimp SM02B-LEASS-TF (LF)(SN)



Category PCB Socket Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	300V
Brand	JST
Orientation	Right Angle
Current	12A
Model	SM02B-LEASS-TF (LF)(SN)
Mount Type	Surface
Contact Material	Copper Alloy
Series	LEA
Termination Type	Crimp
Maximum Operating Temperature	105°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.8mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Connector System	Wire-to-Board

Key Features

The connector features a right angle orientation suitable for compact PCB layouts.
Contacts are made of copper alloy with tin plating for corrosion resistance.
Rated for 12A current and 300V operating voltage.
Compatible with 30 AWG UL1571 cable for LED lighting applications.
Operating temperature range from -55°C to 105°C ensures durability in varied environments.
Low-profile design with only 3 mm PCB height for space-saving installations.
Secure polarising locking mechanism prevents incorrect insertion and enhances connection stability.
RoHS compliant, maintaining environmental standards.

Product Description

JST SM02B-LEASS-TF (LF)(SN) is a right angle surface-mounted PCB socket from the LEA series, designed for wire-to-board applications with a pitch of 1.8 mm. The connector has 2 contacts arranged in a single row and supports a maximum current of 12A and voltage of 300V.

This low-profile connector features a compact 3 mm PCB height, making it ideal for LED lighting and other applications demanding space efficiency. Its contacts, made from high-quality copper alloy with tin plating, provide excellent electrical conductivity and corrosion resistance.

The LEA series connectors include a secure polarising locking mechanism that ensures a reliable and secure connection between housing and header, preventing misalignment during cable handling. Contacts are crimped to 30 AWG UL1571 red cable, ensuring durability and stable electrical performance.

Suitable for industrial electronics, manufacturing, and commercial LED lighting installations, this connector operates reliably within a temperature range of -55°C to 105°C. Furthermore, it complies with RoHS environmental standards, making it an eco-friendly choice.

The connector features a right angle orientation suitable for compact PCB layouts. Contacts are made of copper alloy with tin plating for corrosion resistance. Rated for 12A current and 300V operating voltage. Compatible with 30 AWG UL1571 cable for LED lighting applications.

Operating temperature range from -55°C to 105°C ensures durability in varied environments. Low-profile design with only 3 mm PCB height for space-saving installations. Secure polarising locking mechanism prevents incorrect insertion and enhances connection stability.

RoHS compliant, maintaining environmental standards. Explore the JST brand range and related PCB Sockets on EnvMart for optimized electronic component sourcing.
