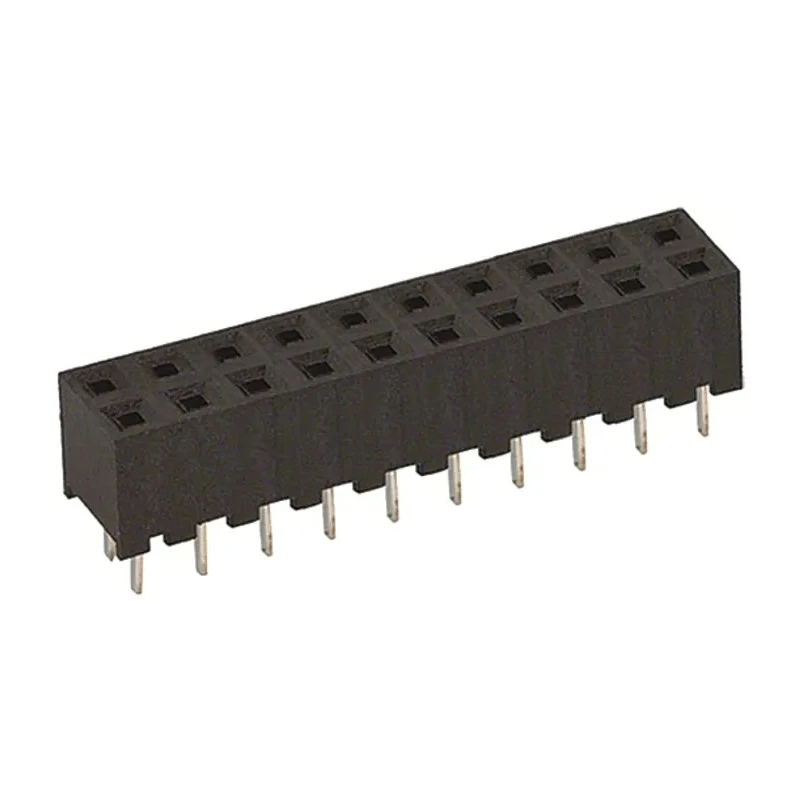

Hirose A3C Series Straight Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder A3C-20DA-2DSA(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | A3C-20DA-2DSA(71) |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | A3C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Stacking Height | 5.1mm |
Key Features
- The connector features a current rating of 12A and voltage rating of 200V.
- It has a straight orientation and through hole mounting for secure PCB attachment.
- Housing material is durable Polybutylene Terephthalate (PBT) ensuring lightweight and high density.
- The contact material is bronze with gold plating for reliable conductivity.
- Operating temperature range spans from -55°C to +85°C for versatile applications.
- Stacking height is 5.1 mm suitable for miniature configurations.
- This socket series is ideal for video, communications, test rig equipment, and a wide range of industrial uses.
- Manufactured in Japan with high-quality standards and no specific certifications applied.
Product Description
Hirose A3C-20DA-2DSA(71) is a miniature 2 mm pitch straight through hole PCB socket designed for high-density wire-to-board connections. This 20-contact, 2-row connector offers a robust solder termination and a stacking height of 5.1 mm, making it suitable for compact electronic assemblies.
The housing is constructed from high-grade Polybutylene Terephthalate (PBT), providing lightweight durability ideal for various applications including video equipment, communications devices, and test rigs.
Contacts are made of bronze with gold plating to ensure excellent electrical conductivity and resistance to corrosion. The connector supports a current rating of 12A and voltage rating up to 200V, with an operating temperature range between -55°C and +85°C, allowing it to perform reliably in demanding industrial environments.
This product is manufactured in Japan, known for precision engineering, and adheres to UL94V-0 flammability standards though no formal approvals are listed. Due to its miniature size and high contact density, this PCB socket is widely used in industrial, laboratory, manufacturing, telecommunications, and electronic assembly sectors.
The product features 20 female contacts arranged in 2 rows. The 2 mm pitch spacing accommodates compact PCB designs. Through hole mount ensures mechanical stability on PCBs. Gold plated bronze contacts enhance performance and reliability.
Temperature and voltage ratings support a wide range of industrial applications.
This Hirose A3C series connector provides a reliable and versatile solution for miniature PCB Socket requirements. Explore more industrial and electronic connector products at EnvMart to suit your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A and a voltage rating of 200V, making it suitable for various applications.
The housing is made from Polybutylene Terephthalate (PBT), while the contacts are bronze with gold plating to ensure reliable conductivity.
It operates effectively within a temperature range of -55°C to +85°C, allowing it to be used in demanding environments.
This connector features 20 female contacts arranged in 2 rows, designed for high-density connections.
The stacking height of this model is 5.1 mm, suitable for compact electronic assemblies.
It uses a through hole mounting type, ensuring mechanical stability when attached to PCBs.
The contact pitch size is 2 mm, which accommodates compact PCB designs.
This product is manufactured in Japan, known for its precision engineering standards.
It is ideal for use in video equipment, communications devices, test rigs, and a wide range of industrial applications.
This model features a solder termination type, which provides a robust connection.
The contact gender of this PCB socket is female, designed for wire-to-board connections.
This connector is part of the Hirose A3C series, designed for high-density applications.
